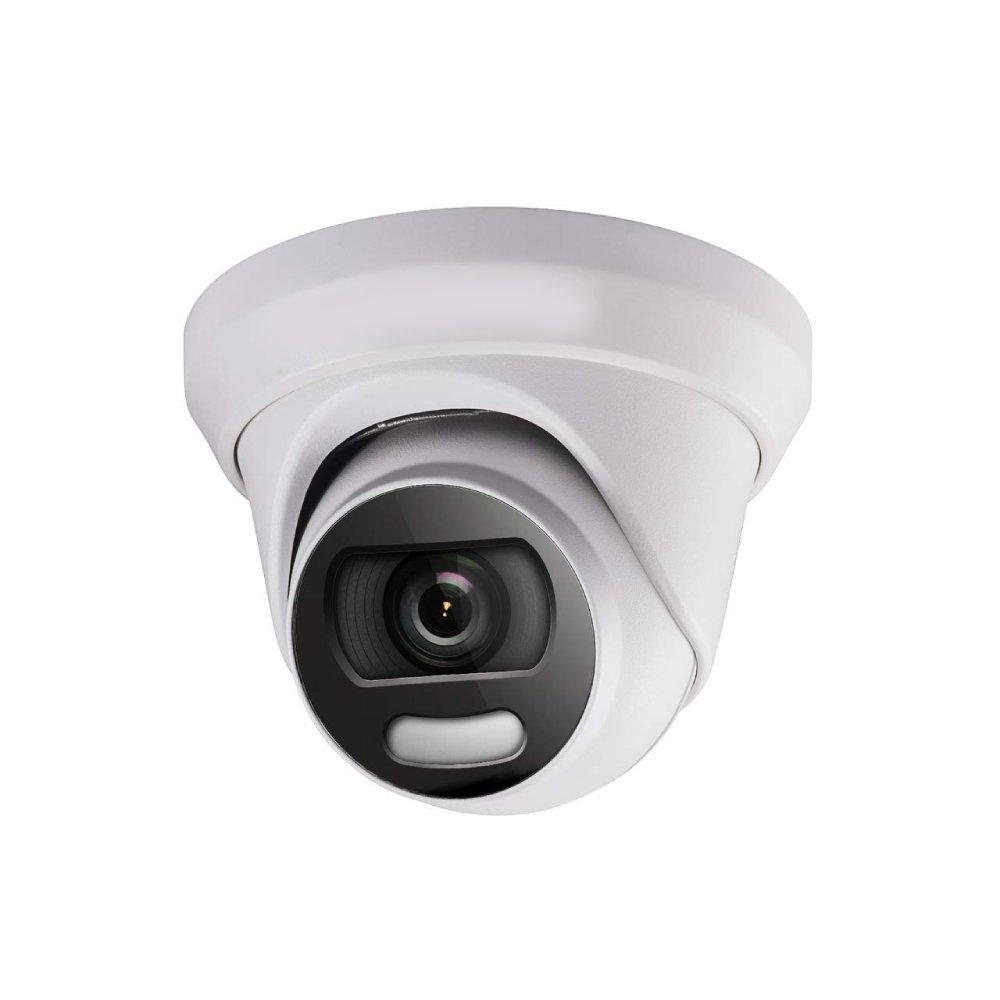

5MP Turret TVI, CVI, AHD, CVBS Camera – 2.8mm Fixed Lens – Color Night Vision – IP67 Rated
This 5MP color night vision, indoor/outdoor, TVI based turret camera features maximum light gathering capability to provide full color imaging in extremely dark settings. The camera comes with a 2.8mm fixed lens which delivers a 99.7° horizontal field of view. Its maximum resolution is 2560 x 1944. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.
Description
This 5MP color night vision, indoor/outdoor, TVI based turret camera features maximum light gathering capability to provide full color imaging in extremely dark settings. The camera comes with a 2.8mm fixed lens which delivers a 99.7° horizontal field of view. Its maximum resolution is 2560 x 1944. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.
 |
Features
|
Application
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 5.0 MP CMOS image sensor |
| Signal System | NTSC |
| Frame Rate | TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps CVI: 4 MP @ 30 fps, 4 MP @ 25 fps AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps CVBS: NTSC |
| Resolution | 2560 (H) x 1944 (V) |
| Minimum Illumination | Color: 0.0005 lux @ (ƒ/1.0, AGC on), 0 lux with white light |
| Shutter Time | 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens |
| Field of View | Horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8° |
| Lens Mount | M16 |
| Strobe Light Alarm | Yes |
| Day and Night | Color |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| WDR | 130 dB |
|
Menu
|
|
| White Light | Auto/off |
| Image Mode | STD/HIGH SAT |
| AGC | Supported |
| Day and Night Mode | Color |
| White Balance | Auto/manual |
| Auto Exposure Mode | WDR/BLC/HLC/Global/ HLS/Anti-Banding |
| Motion Detection | 4 programmable areas |
| Noise Reduction | 3D DNR |
| Language | English |
| Functions | Brightness, sharpness, mirror, smart light |
|
Interface
|
|
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
|
General
|
|
| Operating Conditions | -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Maximum 3.5 W |
| Ingress Protection | IP67 |
| Material | Enclosure: Plastic Main Body: Metal |
| White Light Range | Up to 65 ft (20 m) |
| Communication | Up the coax, Protocol: UTC-C (TVI output) |
| Dimensions | Ø4.32″ x 3.37″ (Ø109.82 mm x 85.56 mm) |
| Weight | Approximately 0.77 lbs (350 g) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
