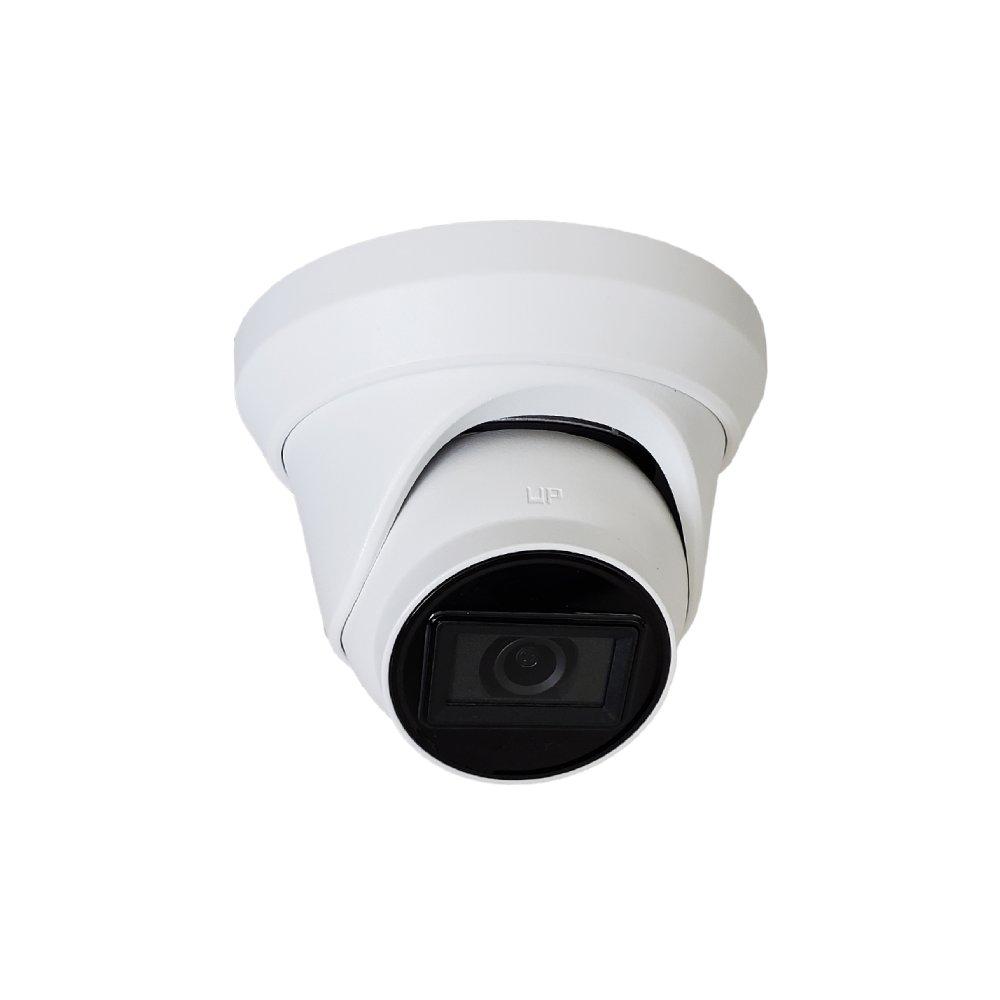

5MP Turret TVI, CVI, AHD, CVBS Camera – Fixed Lens – Ultra Lowlight IR with 40m Range – IP67 Rated
This 5MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with a 2.8mm or 3.6mm fixed lens which delivers a 85.5° or 80.1° horizontal field of view respectively. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Description
This 5MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with a 2.8mm or 3.6mm fixed lens which delivers a 85.5° or 80.1° horizontal field of view respectively. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
- 5 MP high performance COMS
- 2560 × 1944 resolution
- 2.8 mm or 3.6mm fixed lens
- EXIR 2.0, smart IR, up to 40 m IR distance
- OSD menu, 2D DNR, DWDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
Application
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 5.0 MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 5 MP@20fps, 4MP@25fps, 1080p@25fps NTSC: 5MP@20fps, 4MP@30fps, 1080p@30fps |
| Resolution | 2560 (H) x 1944 (V) |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens 3.6 mm fixed focal lens |
| Horizontal Field of View | 85.5° 80.1° |
| Lens Mount | M12 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
|
Menu
|
|
| AGC | Supported |
| Day and Night Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MWB |
| Backlight Compensation | Supported |
| Digital Wide Dynamic Range | Supported |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
|
Interface
|
|
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
|
General
|
|
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Maximum 4.3 W |
| Ingress Protection | IP67 |
| Material | Enclosure: Plastic Main Body: Metal |
| IR Range | Up to 130 ft (40 m) |
| Communication | Up the coax, Protocol: UTC-C (TVI output) |
| Dimensions | ⌀ 4.33″ x 3.67″ (⌀ 110 mm x 93.2 mm) |
| Weight | Approximately 0.77 lbs (350 g) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
