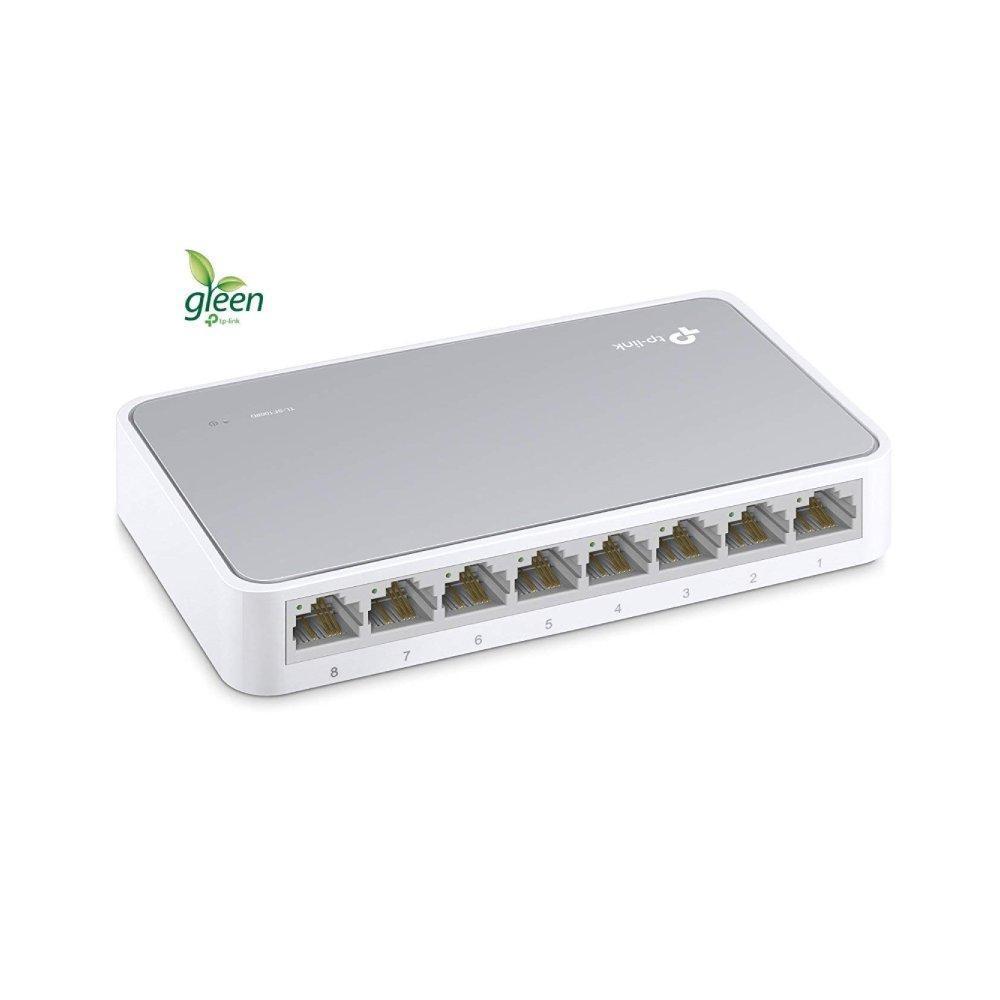

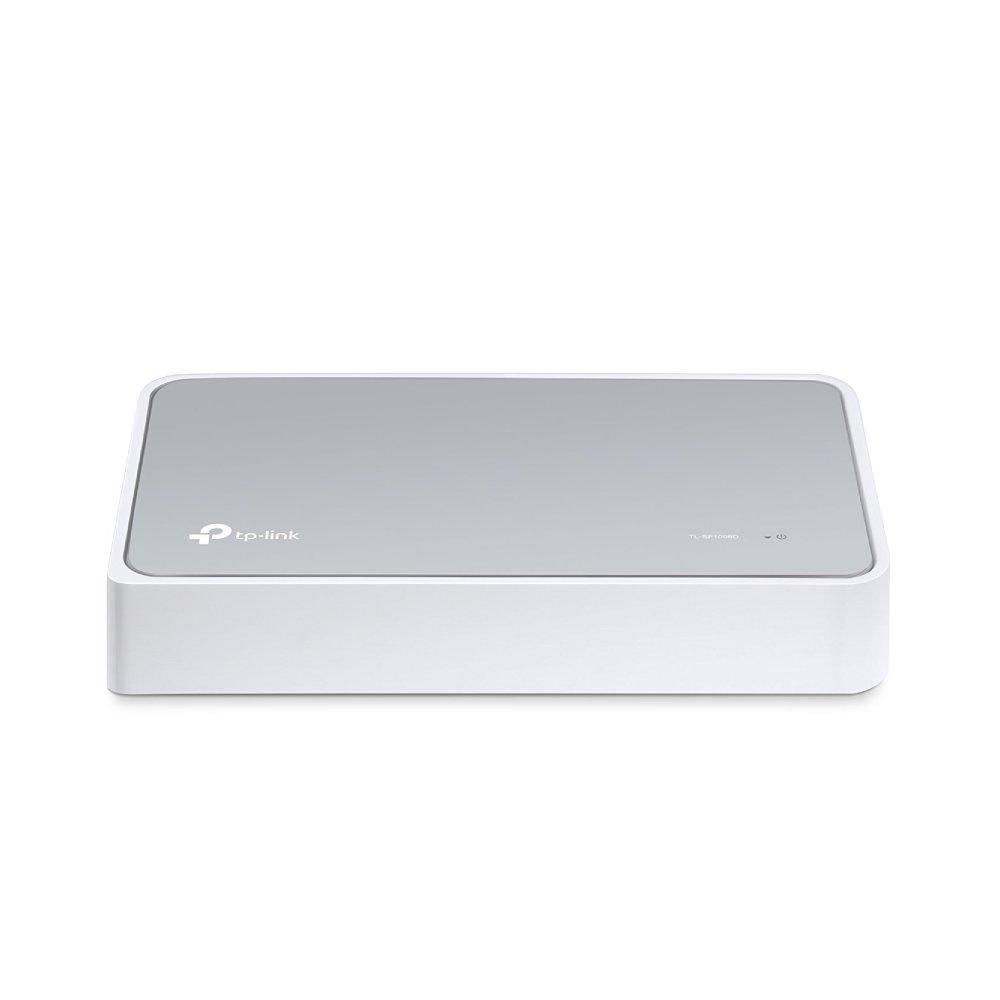

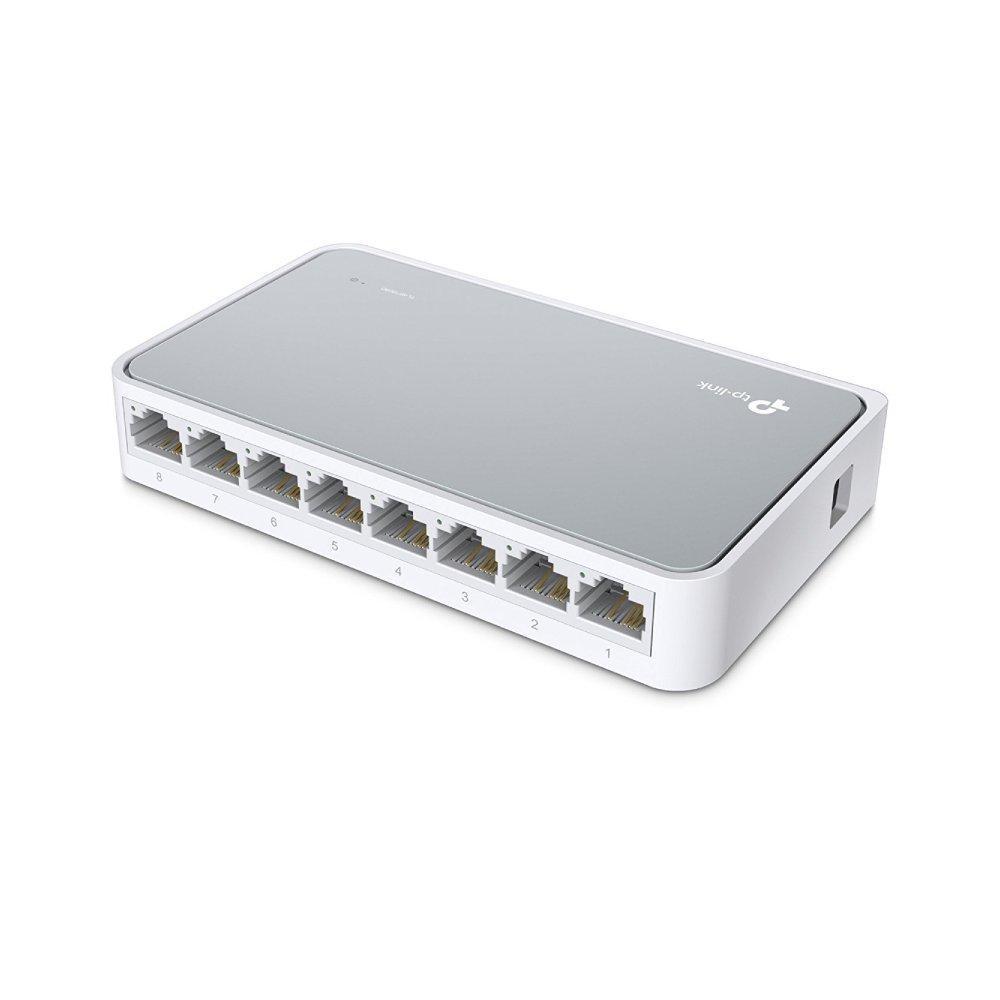

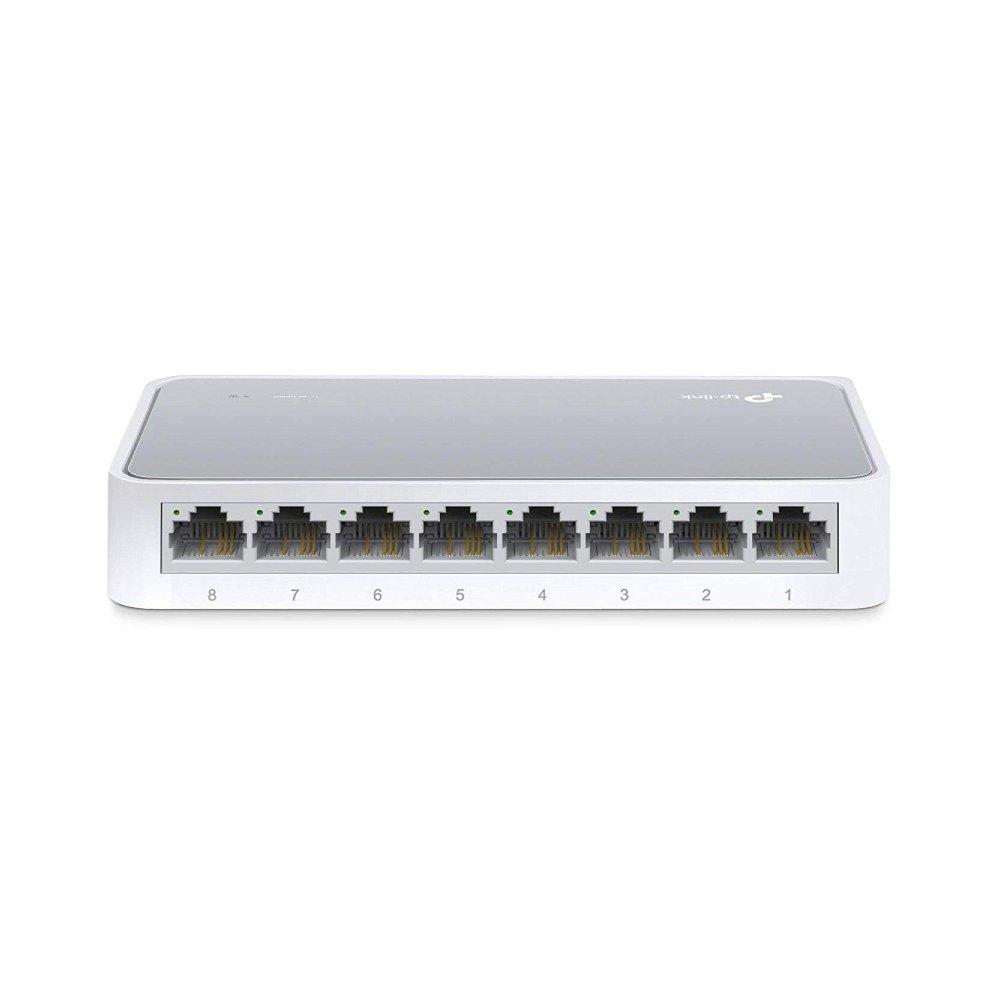

TP Link- 8-Port 10/100Mbps Desktop Switch
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.
Description
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
- PLUG-AND-PLAY – Easy setup with no configuration or no software needed
- ETHERNET SPLITTER – Connectivity to your router or modem router for additional wired connections (laptop, gaming console, printer, etc)
- 8 Port FAST ETHERNET – 8 10/100 Mbps Fast Ethernet auto-negotiation RJ45 ports greatly expand network capacity
- COST EFFECTIVE – Fanless Quiet Design, Desktop design
- RELIABLE – IEEE 802.3x flow control provides reliable data transfer
- UP to 60% Power Saving – Automatically adjusts power consumption according to the link status and cable length
- AUTO-NEGOTIATION – Supports Auto-MDI/MDIX, eliminating the need for crossover cables
- Unlimited 24/7 technical support for FREE
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | 100-240VAC, 50/60Hz (Output: 9VDC / 0.6A) |
| Buffer Size | 768Kb |
| Data Rates | 10/100Mbps at Half Duplex ; 20/200Mbps at Full Duplex |
| LED Indicator | Power Port network activity (on the network module) |
| Dimensions ( W x D x H ) | 5.3 × 3.1 × 0.9 in. (135 × 79 × 23mm) |
| Max Power Consumption | 2W |
| Max Heat Dissipation | 7.0 BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology 802.3X Flow Control, Back Pressure |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

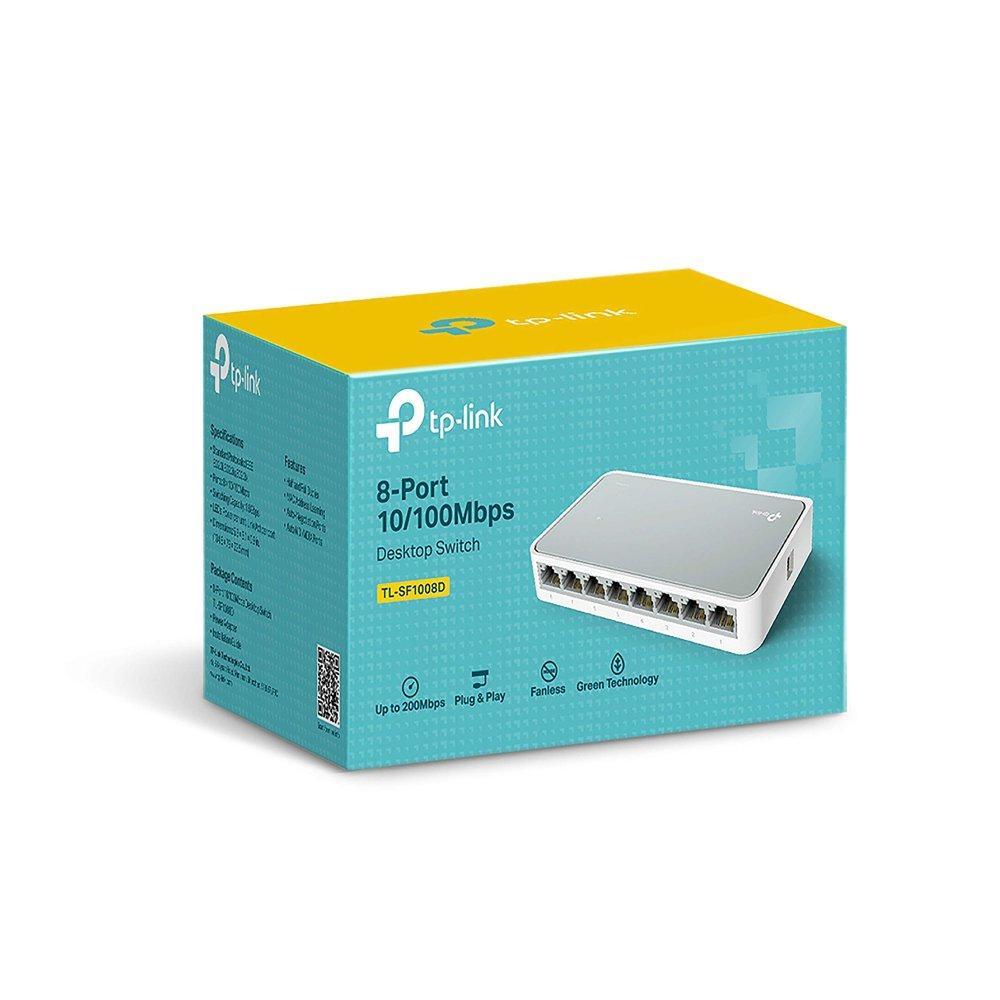

| Package Contents | 8-Port 10/100Mbps Desktop Switch Power Adapter User Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
