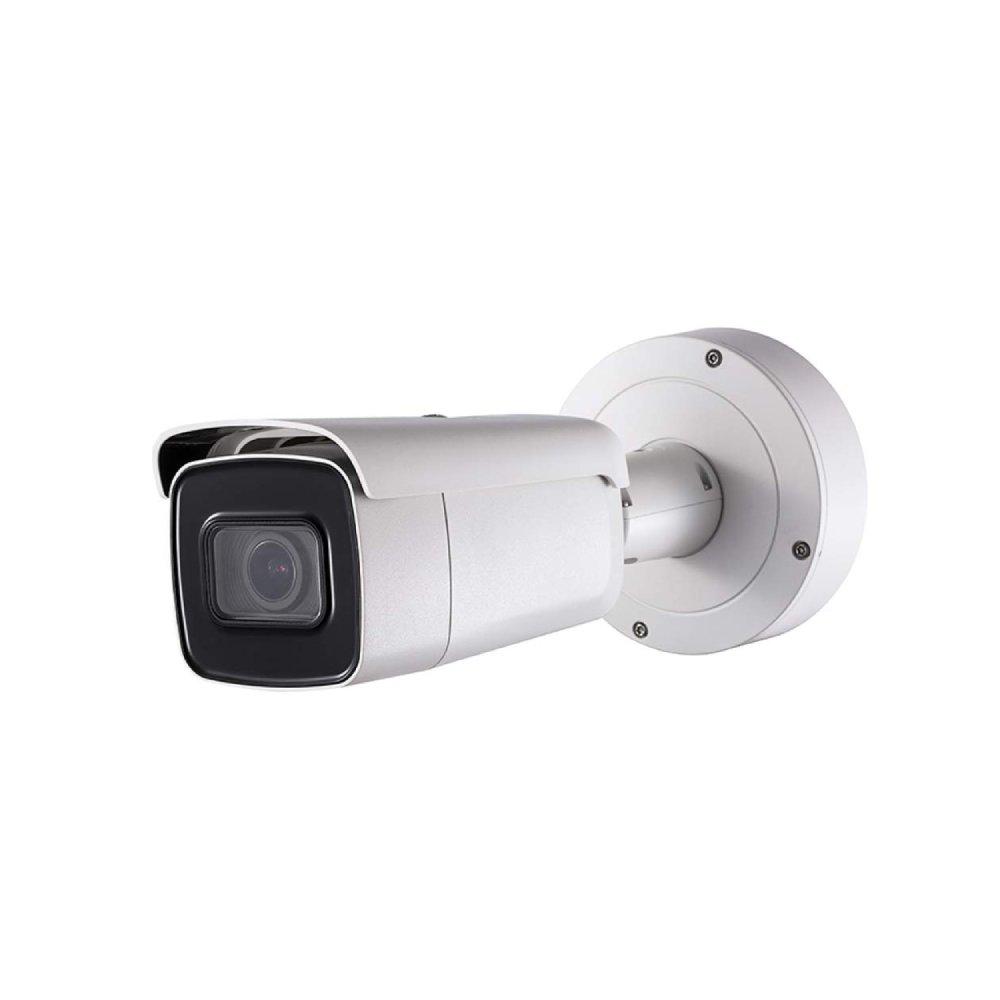

8MP Bullet IP Camera – Varifocal Lens – 30m IR Range – Outdoor IP67 Rated – White
This is a 8MP IP based bullet camera which has a maximum resolution of 2688 x 1520 at 30 fps and supports H.265 video compression technology along with built-in micro SD/SDHC/SDXC slot. It has IP67 rated housing for external use ,2.8 to 12 mm motorized varifocal lens which delivers a 105° to 34.5° horizontal field of view and offers 165 feet of night vision employing an IR cut filter and IR LEDs.
Description
-
This 8MP indoor/outdoor, IP based bullet camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8 to 12 mm motorized varifocal lens which delivers a 105° to 34.5° horizontal field of view. Its maximum resolution is 2688 x 1520 at 30 fps and supports H.265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 165 feet of night vision using an IR cut filter and IR LEDs.
Features - 1/2.5″ Progressive Scan CMOS
- H.265 /H.265/H.264 /H.264/MJPEG
- Color: 0.018 Lux @ (F1.6, AGC ON), 0 lux with IR
- 12.5/15fps(3840×2160), 20fps(3072×1728), 25fps/30fps (2560×1440, 1920×1080, 1280×720)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC
- ICR
- EXIR, up to 50m
- WDR (Wide Dynamic Range)
- DC12V&PoE
- Built-in micro SD/SDHC/SDXC slot
- Guarding Vision APP

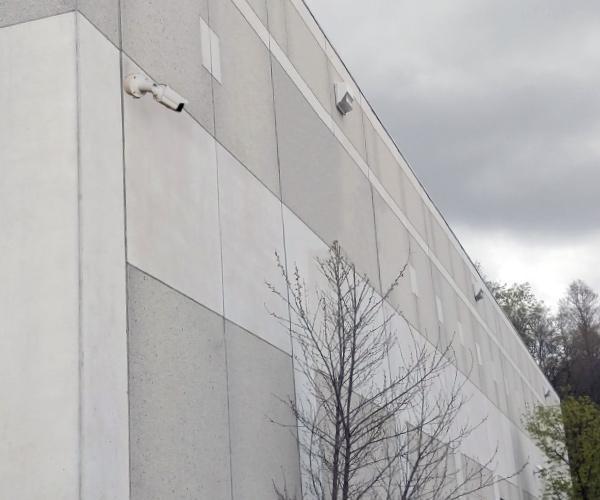

Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
NVR Setup
Standalone Camera Setup
| Camera | |
|---|---|
| Image Sensor | 1/2.5″ Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01 lux @ (f/1.2, AGC on), 0.018 lux @ (f/1.6, AGC on), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day /Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355° |
| Lens | |
| Focal Length | 2.8 to 12 mm motorized varifocal lens |
| Aperture | f/1.6 |
| Focus | Auto |
| FOV | Horizontal FOV: 105° to 34.5°, vertical FOV: 55° to 19°, diagonal FOV: 125° to 40° |
| Lens Mount | ⌀14 |
| IR | |
| IR Range | Up to 165 ft (50 m) |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Main profile/high profile |
| H.264+ | Main stream support |
| H.265 Type | Main Profile |
| H.265+ | Main stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Smart Features | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| Region of Interest | One fixed region for main stream and sub-stream |
| Image | |
| Maximum Resolution | 3840 x 2160 |
| Main Stream | 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream | 30 fps (1280 x 720, 640 x 360, 352 x 240) |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | No |
| Day/Night Switch | Day/night/auto/schedule/triggered by alarm in |
| Network | |
| Network Storage | MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |

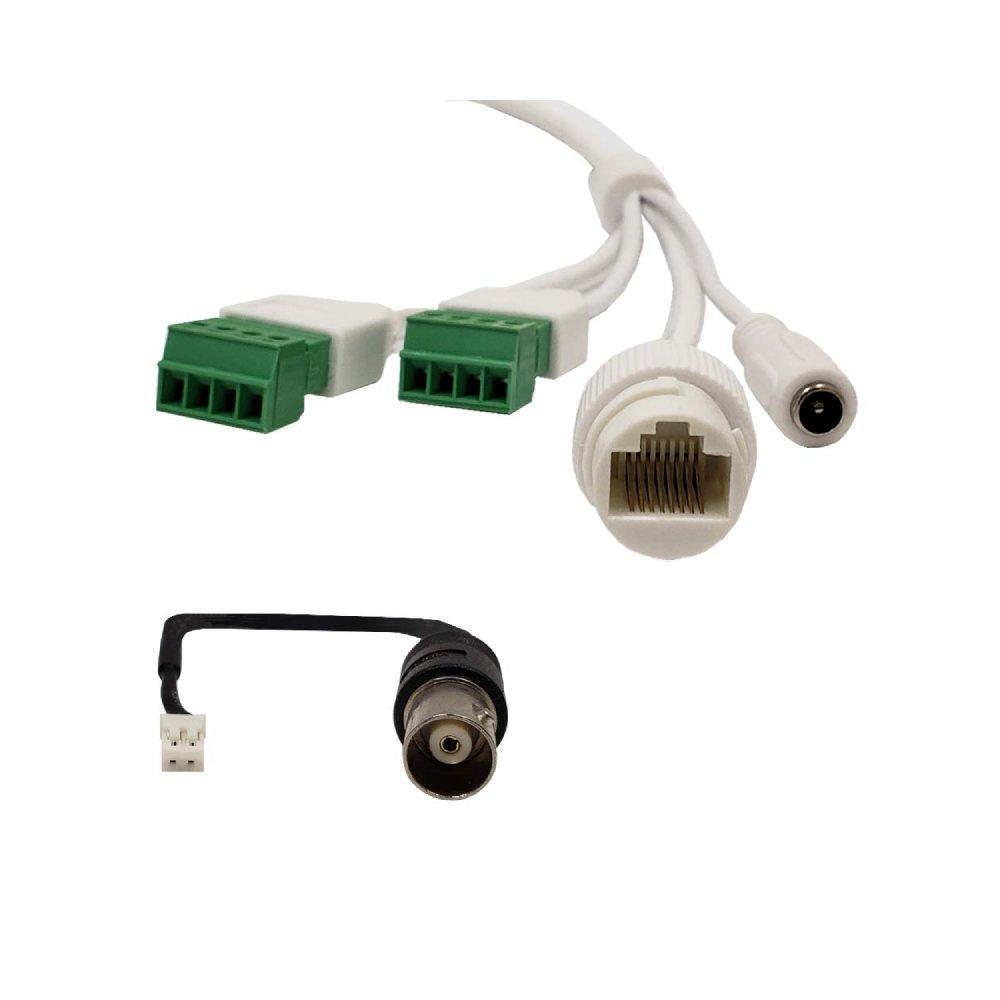

| Interface | |
| Audio | 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound, terminal block |
| Communication Interface | 1-port RJ45 10M/100M self-adaptive Ethernet port |
| Alarm | 1 input, 1 output (up to 12 VDC, 30 mA), terminal block |
| Video Output | 1 Vp-p Composite Output(75Ω/BNC) |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2) |
| General | |
| Operating Conditions | -22° F to 140° F (-30° C to 60° C); humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, ⌀ 5.5 mm coaxial power plug, PoE (802.3at, class 4) |
| Power Consumption and Current | 12 VDC, 1.2 A, maximum 14.5 W, PoE (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, maximum 18 W |
| Protection Level | IP67 |
| Material | Metal |

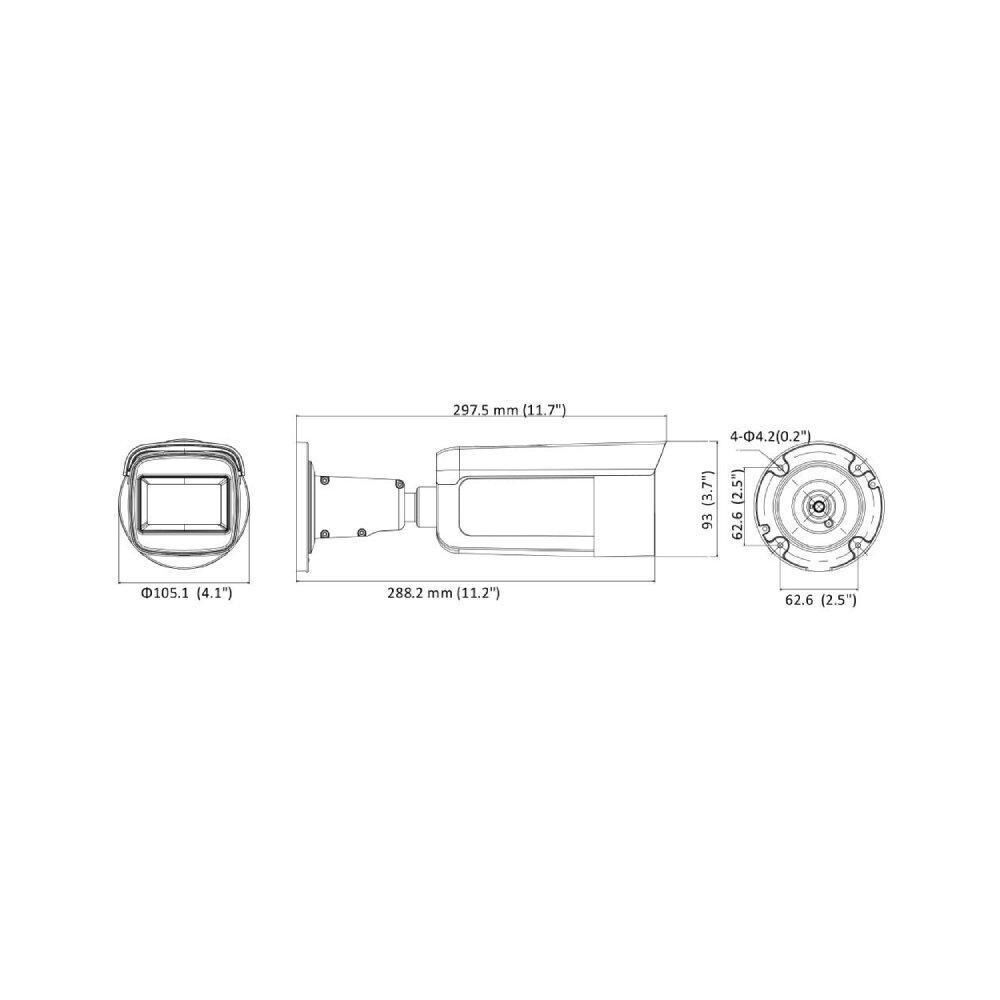

| Dimensions | ⌀ 4.1″ x 11.7″ (⌀ 105.1 mm x 297.5 mm) |
| Weight | 2.90 lbs (1.335 kg) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
