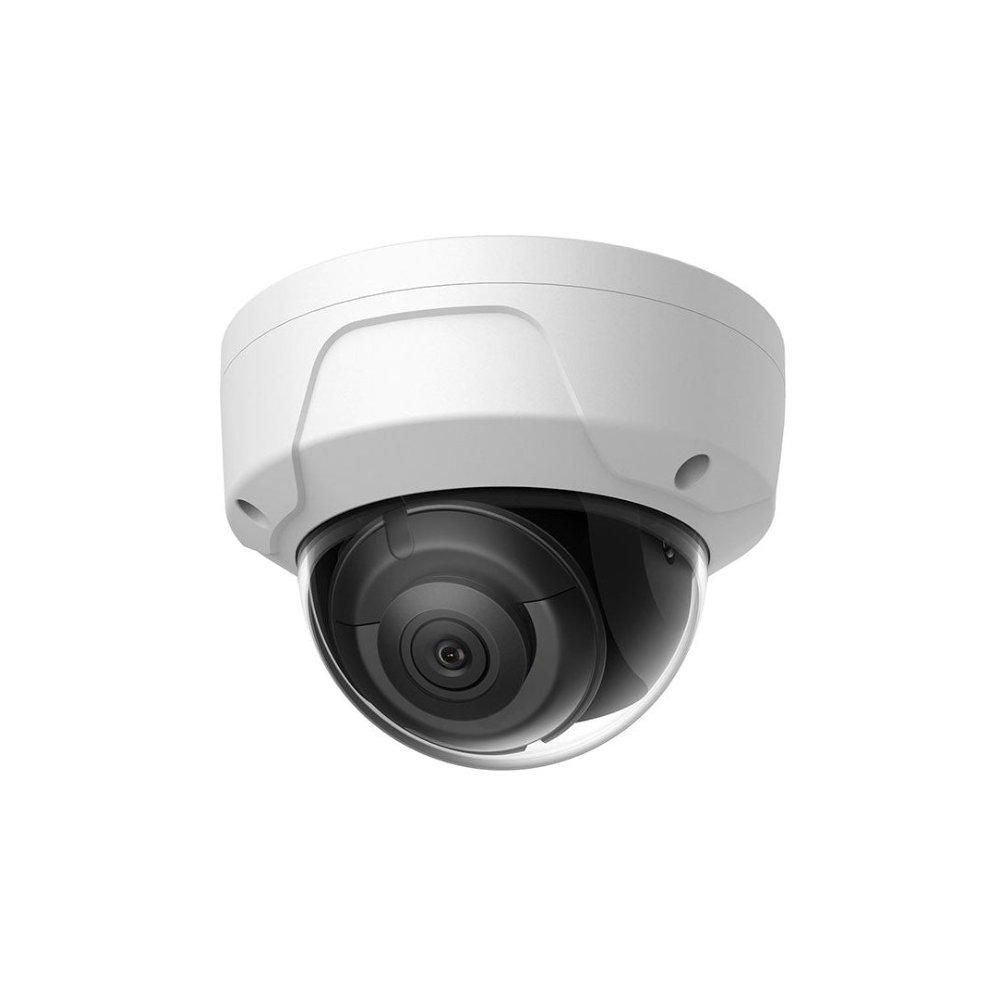

8MP Dome IP Camera – Varifocal Lens – 30m IR Range – Outdoor IP67 Rated – White
This is a 8MP IP based dome camera which has a maximum resolution of 2688 x 1520 at 30 fps and supports H.265 video compression technology along with built-in micro SD/SDHC/SDXC slot. It has IP67 rated housing for external use, 2.8 to 12 mm motorized varifocal lens which delivers a 105° to 34.5° horizontal field of view and offers 165 feet of night vision employing an IR cut filter and IR LEDs.
Description
- This 8MP indoor/outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in a 2.8mm and 6mm fixed lens which delivers a 102° and 50° horizontal field of view. Its maximum resolution is 3840 x 2160 at 15 fps and supports H.265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.
Features - 1/2.5″ Progressive Scan CMOS
- H.265 /H.265/H.264 /H.264/MJPEG
- Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- 12.5/15fps(3840×2160), 20fps(3072×1728),25fps/30fps (2560×1440, 1920×1080, 1280×720)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC
- ICR
- EXIR, up to 30m
- WDR (Wide Dynamic Range)
- DC12V&PoE
- Built-in micro SD/SDHC/SDXC slot
- Guarding Vision APP
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

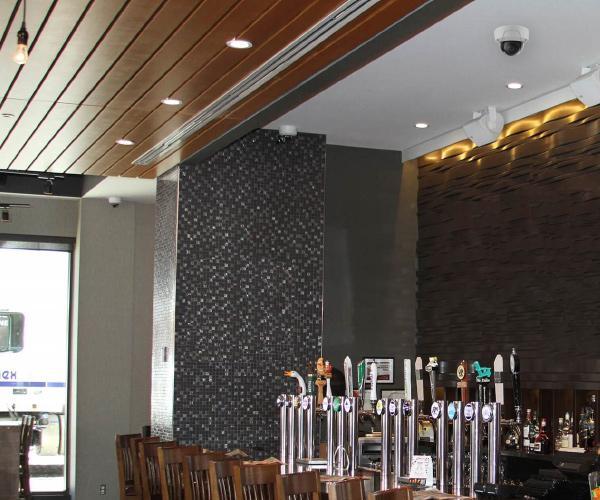

Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
NVR Setup
Standalone Camera Setup
| Camera | |
|---|---|
| Image Sensor | 1/2.5″ Progressive Scan CMOS |
| Minimum Illumination | Color: 0.018 lux @ (f/1.6, AGC on), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day /Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Focal Length | 2.8 to 12 mm motorized varifocal lens |
| Aperture | f/1.6 |
| Focus | Auto |
| FOV | Horizontal FOV: 105° to 34.5°, vertical FOV: 55° to 19°, diagonal FOV: 125° to 40° |
| Lens Mount | ⌀14 |
| IR | |
| IR Range | Up to 100 ft (30 m) |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Main profile/high profile |
| H.264+ | Main stream support |
| H.265 Type | Main profile |
| H.265+ | Main stream support |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2) |
| Smart Features | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| Region of Interest | One fixed region for main stream and sub-stream |
| Image | |
| Maximum Resolution | 3840 x 2160 |
| Main Stream | 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream | 30 fps (1280 x 720, 640 x 360, 352 x 240) |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | No |
| Day/Night Switch | Day/night/auto/schedule/triggered by alarm in |
| Network | |
| Network Storage | MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Interface | |
| Audio | 1 input (line in), 1 output (line out), mono sound, terminal block |
| Communication Interface | 1-port RJ45 10M/100M self-adaptive Ethernet port |
| Alarm | 1 input, 1 output (up to 12 VDC, 30 mA), terminal block |
| Video Output | 1 Vp-p Composite Output(75Ω/BNC) |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| General | |
| Operating Conditions | -22° F to 140° F (-30° C to 60° C); humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, ⌀ 5.5 mm coaxial power plug, PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.8 A, maximum 10 W; PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, maximum 12 W |
| Protection Level | IP67, IK10 |
| Material | Metal |
| Dimensions | ⌀ 6.0″ x 4.4″ (⌀ 153.3 mm x 111.6 mm) |
| Weight | 2.90 lbs (1.33 kg) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
