Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black

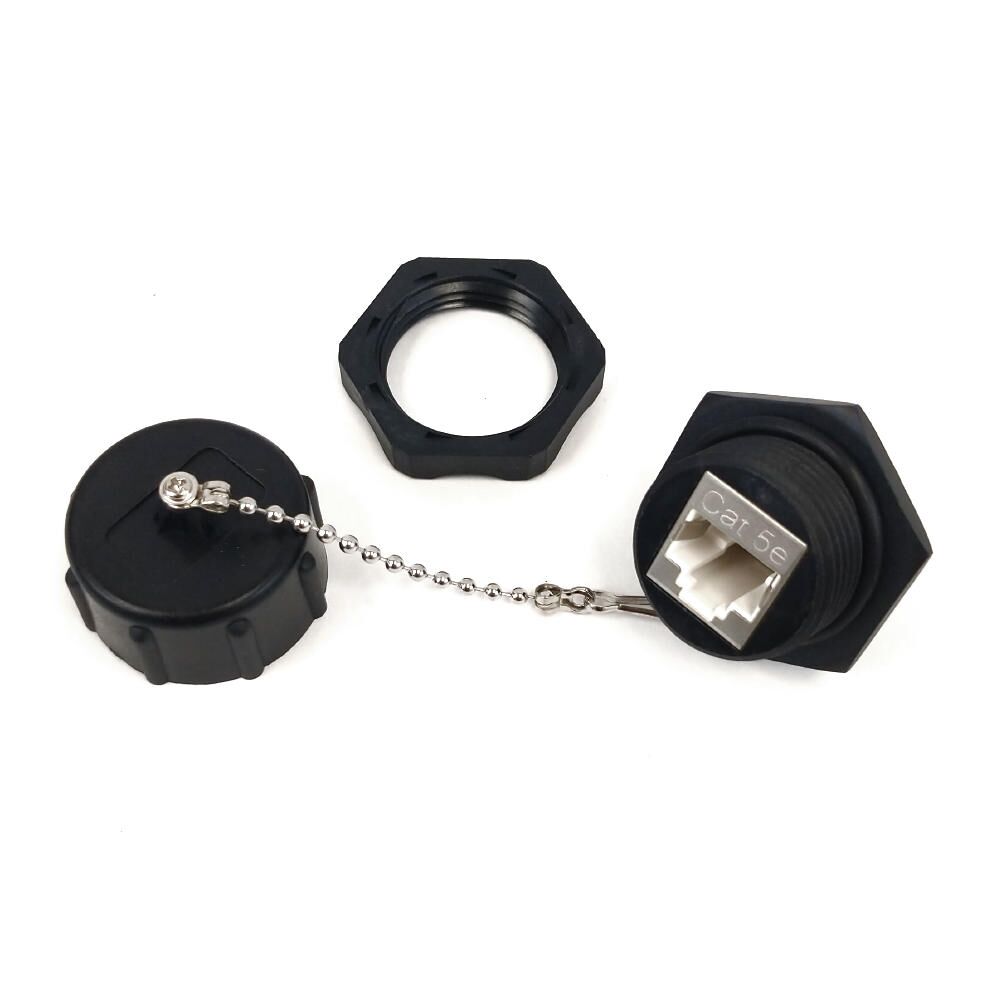

This Cat5e shielded bulkhead coupler consists of a RJ45 female on one end and a standard 110 punch down on the other end. It is typically used to connect a RJ45 male outdoor network cable where dust, water and protection from the elements is required. Creates a IP68 rating when used in conjunction with our matting RJ45 male shroud. It is suitable for outdoor or industrial applications.
Description
This Cat5e shielded bulkhead coupler consists of a RJ45 female on one end and a standard 110 punch down on the other end. It is typically used to connect a RJ45 male outdoor network cable where dust, water and protection from the elements is required. Creates a IP68 rating when used in conjunction with our matting RJ45 male shroud. It is suitable for outdoor or industrial applications.
 |
Waterproof RJ45 Bulkhead Jack for Outdoor CableThis Cat5e coupler is IP68 compliant to help protect your outdoor network cabling against water, moisture, dirt and insects for uninterrupted and quality connections. Waterproof when immersed in water at a depth of 4 meter. Use as Part of a Complete KitThis coupler can be used as part of a complete kit to create an end-to-end IP rated channel. |
|
Physical Characteristics
|
||
|---|---|---|
| Color | Black | |
| Body Material | PBT+GF,UL94V-0 | |
| Jack Housing | PC,UL94V-0 | |
| Connector Plating | Gold Plated | |
| Shielded Case | Brass, Nickel Plated | |

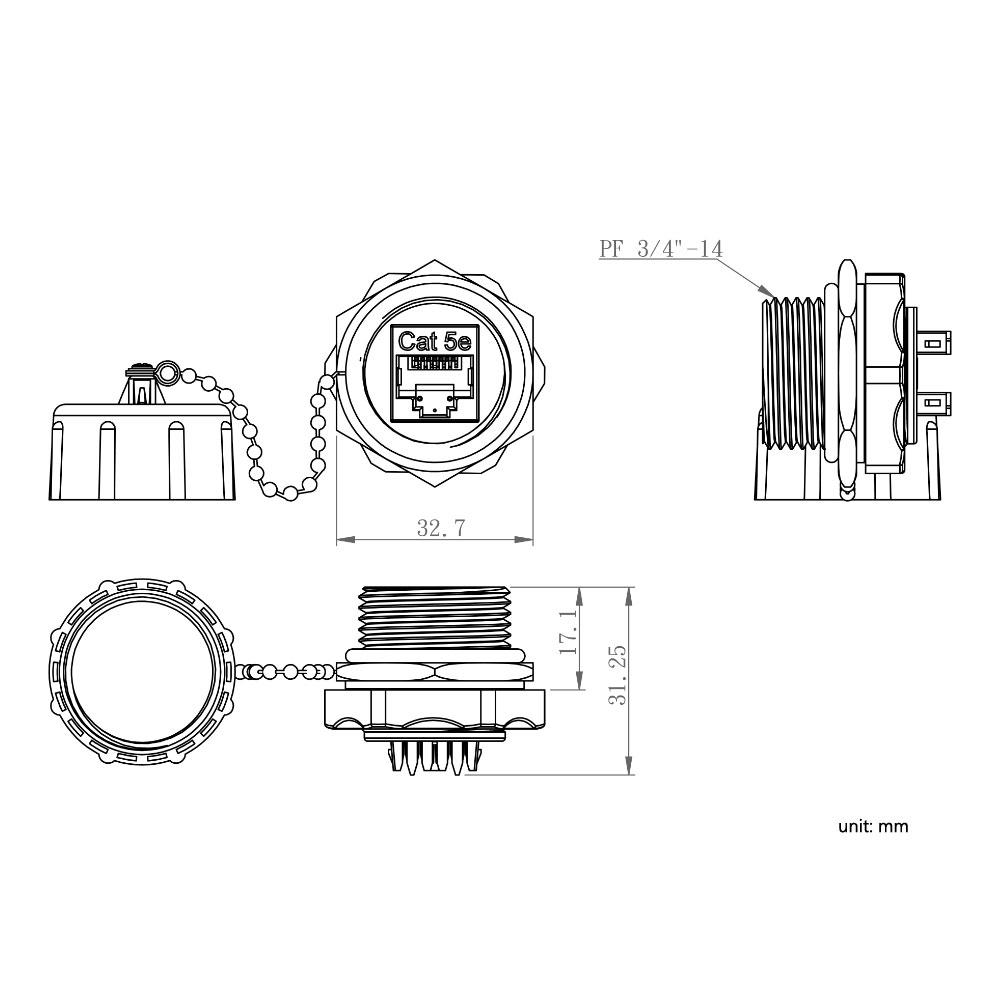

| Thread Pattern | ¾” -14 | |
| Operating Temperature | -10°C to 60°C | |
| Storage Temperature | -40°C to 68°C | |
| Humidity | 10% ~ 90% RH | |
|
Connector(s)
|
||
| RJ45 Cat5e | Female | |

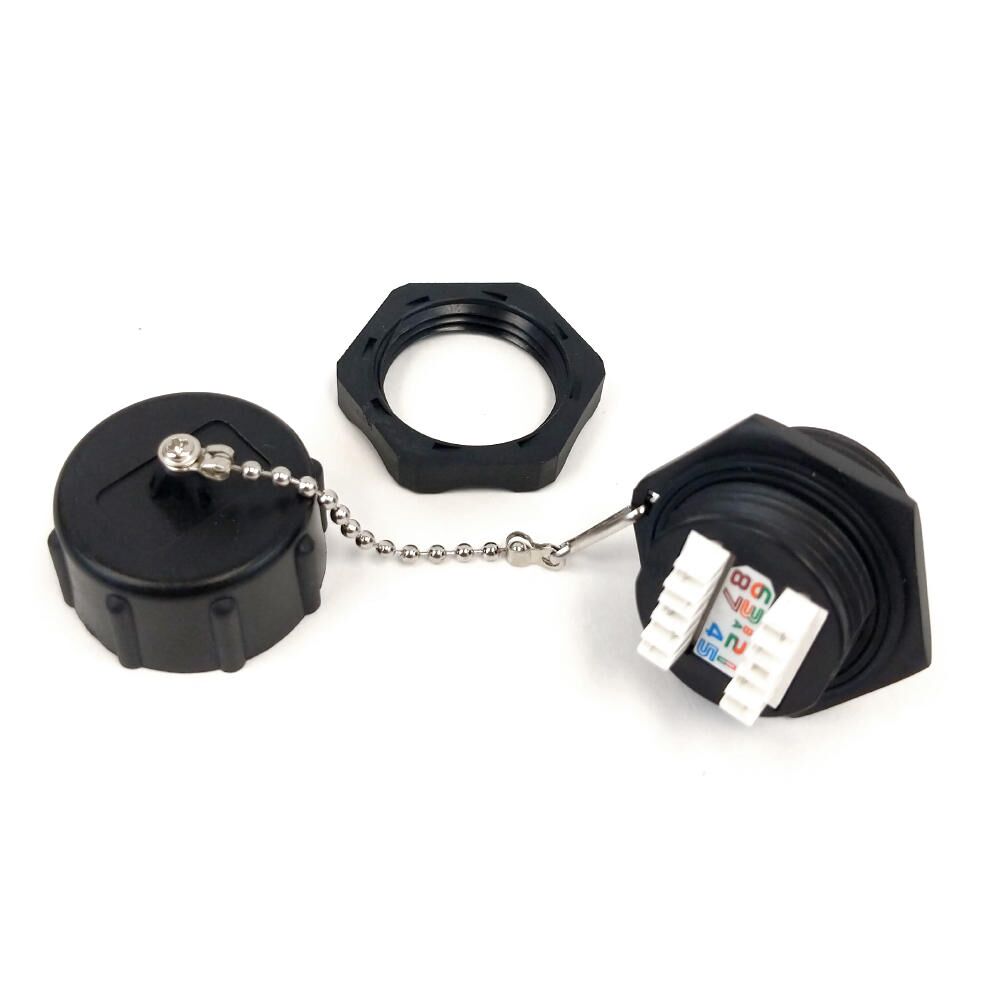

| Standard 110 | Terminate | |
|
Performance
|
||
| Insertion Life | 750 Mating Cycles | |
| Contact Force | 100 Grams | |
| Plug Retention Force | 11 LBF MIN | |
| Durability | 200 Termination Cycles | |
| Contact Compatibility | Accommodates 22 to 24 AWG Solid | |
|
Electrical Features
|
||
| Insulation Resistance | 500 MΩ | |
| Dielectric Withstanding Voltage | 1000 V AC | |
| DC Current Rating | 1.5 Amps | |
| DC Resistance | 0.1Ω | |
| Contact Resistance | 20mΩ | |
|
Compatible Items
|
||
| SB-EBH2-WH | Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts – Waterproof IP68 Rated – White | |
| WP-EBH1-SS | Single Gang Wall Plate – 1x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| WP-EBH2-SS | Single Gang Wall Plate – 2x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| WP-EBH4-SS | Double Gang Wall Plate – 4x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel | |
| CN-BT-IP68-BK | RJ45 IP68 Waterproof Shroud for RJ45 Male Cable – Fits Cable OD of 5mm to 10mm – Black | |
|
Environmental
|
||
| IP Rating | IP68 Rated When Used in Conjunction with RJ45 shroud | |
| RoHS | Yes | |
|
Packaging Information
|
||
| Product Weight | 0.07 lbs [0.03 kg] | |
