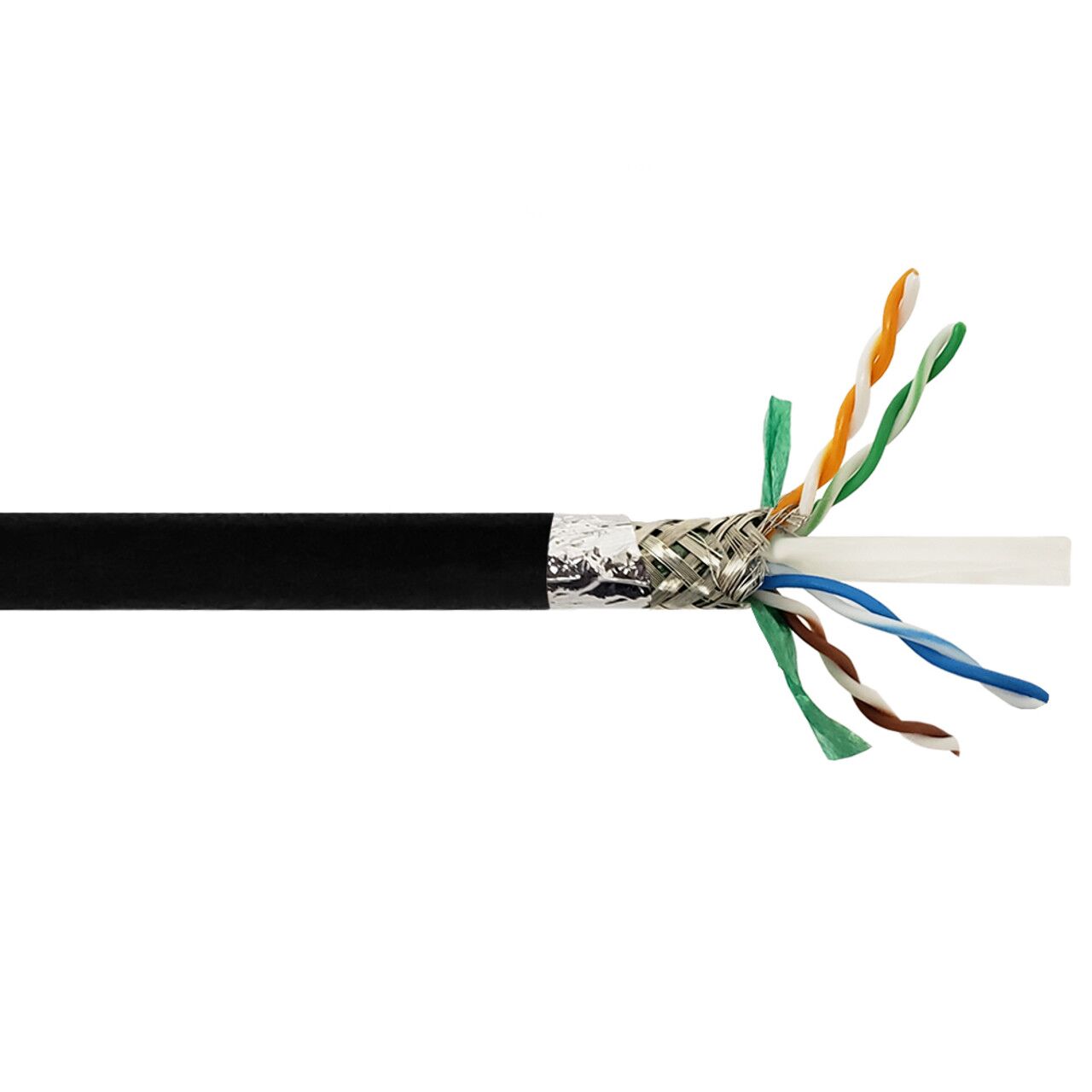

Cat6A Hi-Flex Rugged 4 pair 26AWG SFTP Shielded Stranded Black Cable – PUR Jacket – (per foot)
This bulk Cat6a cable consists of 4 pairs of 26AWG stranded wires. It is a Hi-Flex bulk cable suitable for harsh environment and digital A/V applications.
Description
Features:
- Hi-Flex bulk cable
- Ideally used for harsh environment applications and digital A/V applications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 26AWG Stranded |
| Conductor Material | Stranded Tinned Copper |
| Stranding Count | 7/34 |
| UV Resistant Jacket | Yes |
| Jacket | Polyurethane |
| Overall Cable Diameter | 0.239 inches (+/- 0.010) |
| Nominal Diameter | 0.019 inches (Conductor) 0.036 inches (Insulation) 0.072 inches (Pairs) 0.228 inches max (Jacket) |
| Temperature Rating | -40 deg C to 75 deg C |
|
Electrical Characteristics (per 100m / per 328ft)
|
|
| Mutual Capacitance | 13.5 pf/ft. at 1 MHz |
| Minimum Dielectric Withstanding | 1500V RMS |
| Max Voltage Rating | 300V |
| Max D.C. Resistance | 14.0 Ω/1000ft |
| Impedance | 100 +/- 15 Ω 1 to 100 MHz 100 +/- 20 Ω 100 to 500 Mh |
| Return Loss | 1 ≤ f < 10 MHz 20 + 5 log(f) dB MIN 10 ≤ f < 20 MHz 25 dB MIN 20 ≤ f ≤ 500 MHz 25 – 8.6 log(f/20) dB MIN |
| PS NEXT NEXT PSACRF ACRF |
1 ≤ f < 500 MHz 42.3 – 15 log(f/100) min 1 ≤ f < 500 MHz 44.3 – 15 log(f/100) min 1 ≤ f < 500 MHz 24.8 – 20 log(f/100) min 1 ≤ f < 500 MHz 27.8 – 20 log(f/100) min |
| Insertion Loss | 1 ≤ ƒ ≤ 500 MHz 1.5[1.82 √ƒ + 0.0091(ƒ) + 0.25/√ƒ dB MAX |
| Delay | 1 ≤ ƒ ≤ 500 MHz 534 + 36/√ƒ ns MAX |
| Delay Skew | 1 ≤ ƒ ≤ 500 MHz < 45ns |
| TCL | 1 ≤ ƒ ≤ 500 MHz 30 – 10 log(ƒ/100) dB MIN |
| ELTCTL | 1 ≤ ƒ ≤ 30 MHz 35 – 20 log(ƒ) dB MIN |
| PSANEXT Loss (6 around 1) | 1 ≤ ƒ ≤ 50 MHz 67 dB MIN 50 ≤ ƒ ≤ 500 MHz 62.5 – 15 log(ƒ/100) dB MIN |
| PSAFEXT (6 around 1) | 1 ≤ ƒ ≤ 500 MHz 38.2 – 20 log(ƒ/100) dB MIN |
| Velocity of Propagation | 68% |
|
Environmental
|
|
| RoHS | Yes |
|
Manufacturer Information
|
|
| Quabbin Part Number | 5919 |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.03 lbs |
