Fan Kit for RM-500 Series Wall Mount Cabinets b Low Decibel 28dBa – 55 CFM – Pair

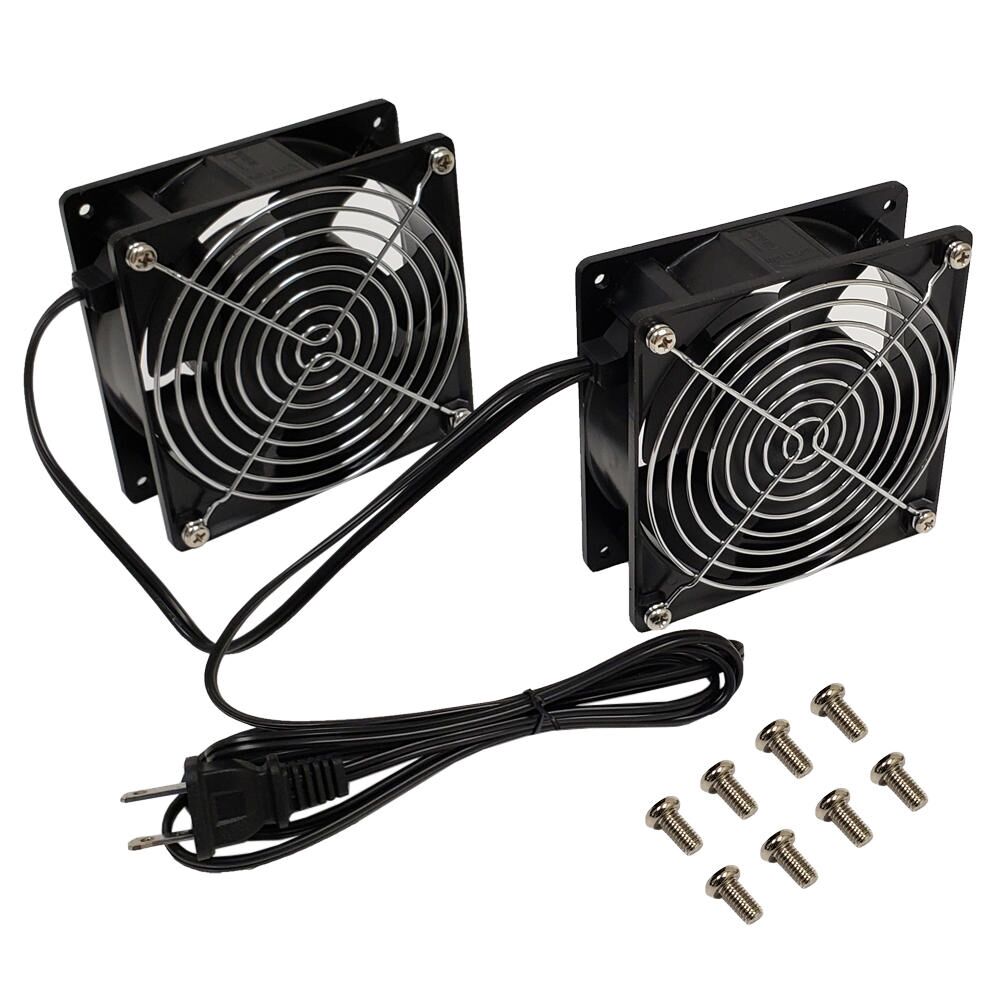

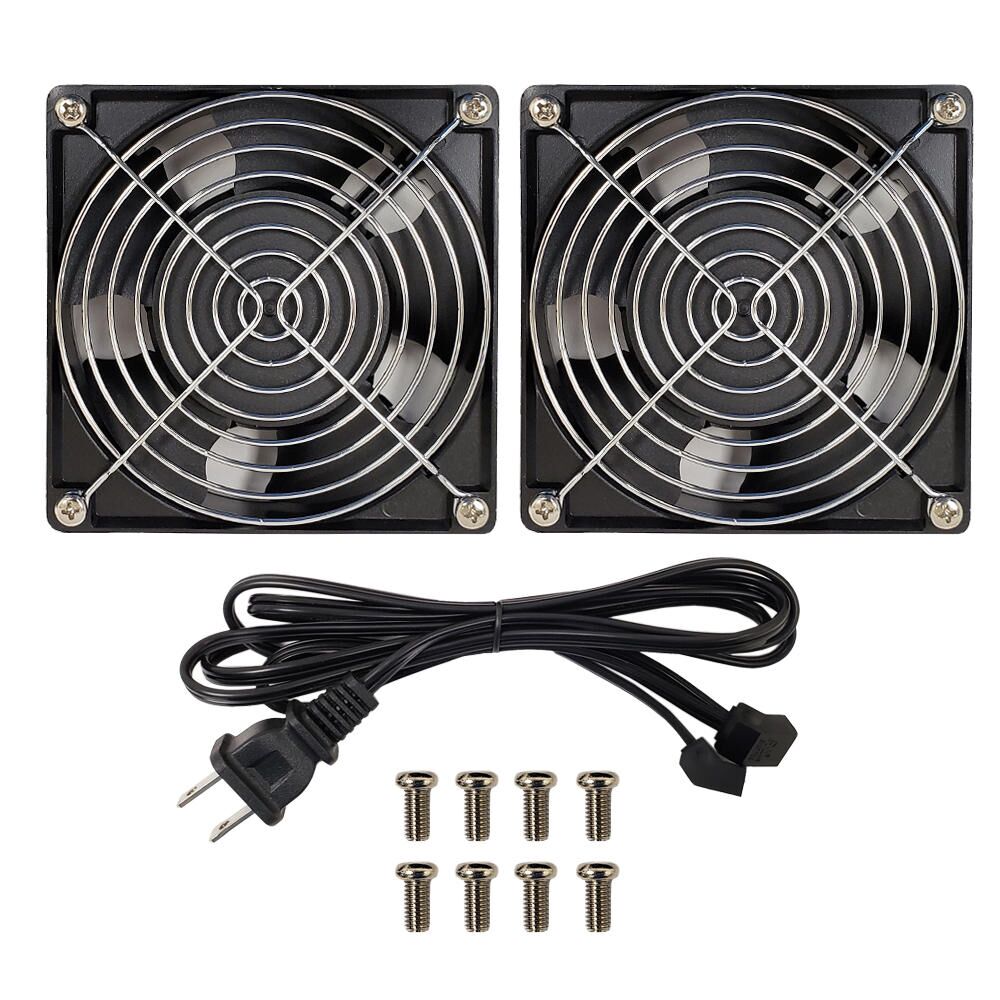

This pair of fans are designed to fit our RM-500 series of wall mount cabinets. Included in the kit is a pair of fans, power splitter cable, fan covers and mounting screws. The fans produce only 28dBA of sound per fan and have combined air flow of 110 CFM.
Description
This pair of fans are designed to fit our RM-500 series of wall mount cabinets. Included in the kit is a pair of fans, power splitter cable, fan covers and mounting screws. The fans produce only 28dBA of sound per fan and have combined air flow of 110 CFM.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Material | Impeller: Thermoplast PBT of UL94V-0 Bobbin: Thermoplast PA66 of UL94V-0 Lead Wire: UL 1430 AWG#22 Housing: Die-Cast Aluminum |
| Dimensions | 120 x 120 x 38mm |
| Bearing System | Ball Bearing |
| Rated Voltage | 115V AC |
| Operating Voltage | 100V AC~120V AC |
| Start-up Voltage | 80V AC Normally |
| Rated Current | 0.11 Amps Normally |
| Rated Power | 10 Watts Normally |
| Rated Speed | 1700 RPM +/- 10% |
| Air Flow | 1.56 m3 / min 55 CFM (per fan) |
| Static Air Pressure | 2.0mm H2O |
| Noise Level | 28dBA (per fan) |
| Motor Protection Type | By Impedance |
| Life Expectancy | 50,000 Hours at Room Temperature |
| Operating Temperature | -20 deg C ~ 70 deg C |
|
Power Cable Specifications
|
|
| Color | Black |
| Jacket Material | SPT-1 Jacket |
| Wire Gauge | 18AWG |
| Number of Conductors | 2C |
| Power Rating | 10 Amps / 125 Volts |
|
Compatible Cabinets
|
|
| RM-501-6U | Wall Mount Cabinet 6U x 19.5″ Usable Depth, Glass Door – Black |
| RM-501-9U | Wall Mount Cabinet 9U x 19.5″ Usable Depth, Glass Door – Black |
| RM-501-12U | Wall Mount Cabinet 12U x 19.5″ Usable Depth, Glass Door – Black |
| RM-501-15U | Wall Mount Cabinet 15U x 19.5″ Usable Depth, Glass Door – Black |
| RM-511-6U | Wall Mount Cabinet 6U x 23″ Usable Depth, Glass Door – Black |
| RM-511-9U | Wall Mount Cabinet 9U x 23″ Usable Depth, Glass Door – Black |
| RM-511-12U | Wall Mount Cabinet 12U x 23″ Usable Depth, Glass Door – Black |
| RM-511-15U | Wall Mount Cabinet 15U x 23″ Usable Depth, Glass Door – Black |
| RM-511-22U | Wall Mount Cabinet 22U x 23″ Usable Depth, Glass Door – Black |
| RM-551-9U | Wall Mount Swing-Out Cabinet 9U x 18.5″ Usable Depth – Black |
| RM-551-12U | Wall Mount Swing-Out Cabinet 12U x 18.5″ Usable Depth – Black |
| RM-551-15U | Wall Mount Swing-Out Cabinet 15U x 18.5″ Usable Depth – Black |
| RM-560-9U | Wall Mount Swing-Out Cabinet 9U x 18.5″ Usable Depth – Perforated Doors – Black |
| RM-560-12U | Wall Mount Swing-Out Cabinet 12U x 18.5″ Usable Depth – Perforated Doors – Black |
| RM-560-15U | Wall Mount Swing-Out Cabinet 15U x 18.5″ Usable Depth – Perforated Doors – Black |
|
Approvals
|
|
| c(UL)us | Cable – Yes |
|
Environmental
|
|
| RoHS | Cable – Yes |
|
Packaging Information
|
|
| Package Quantity | 2 – Fans for RM-500 Series Wall Mount Cabinets |
| Product Weight | 1.05 lbs [0.48kg] |
