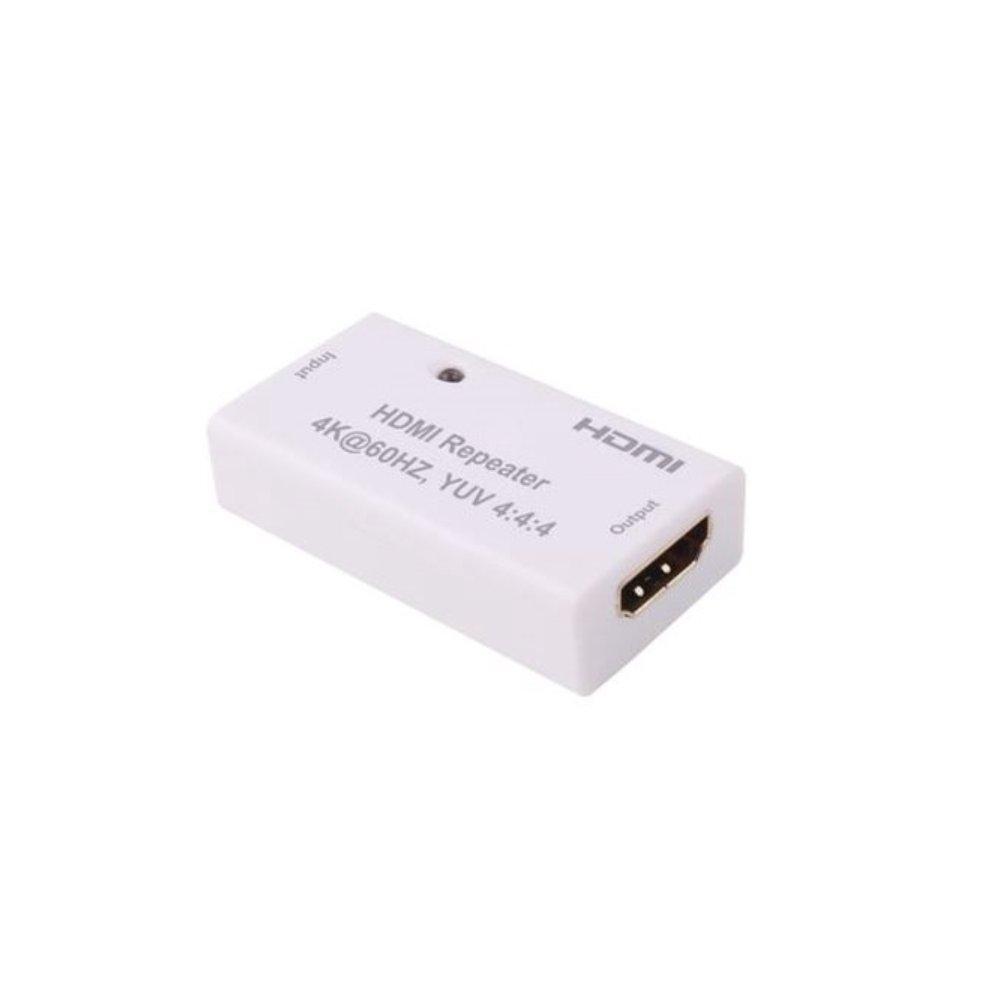

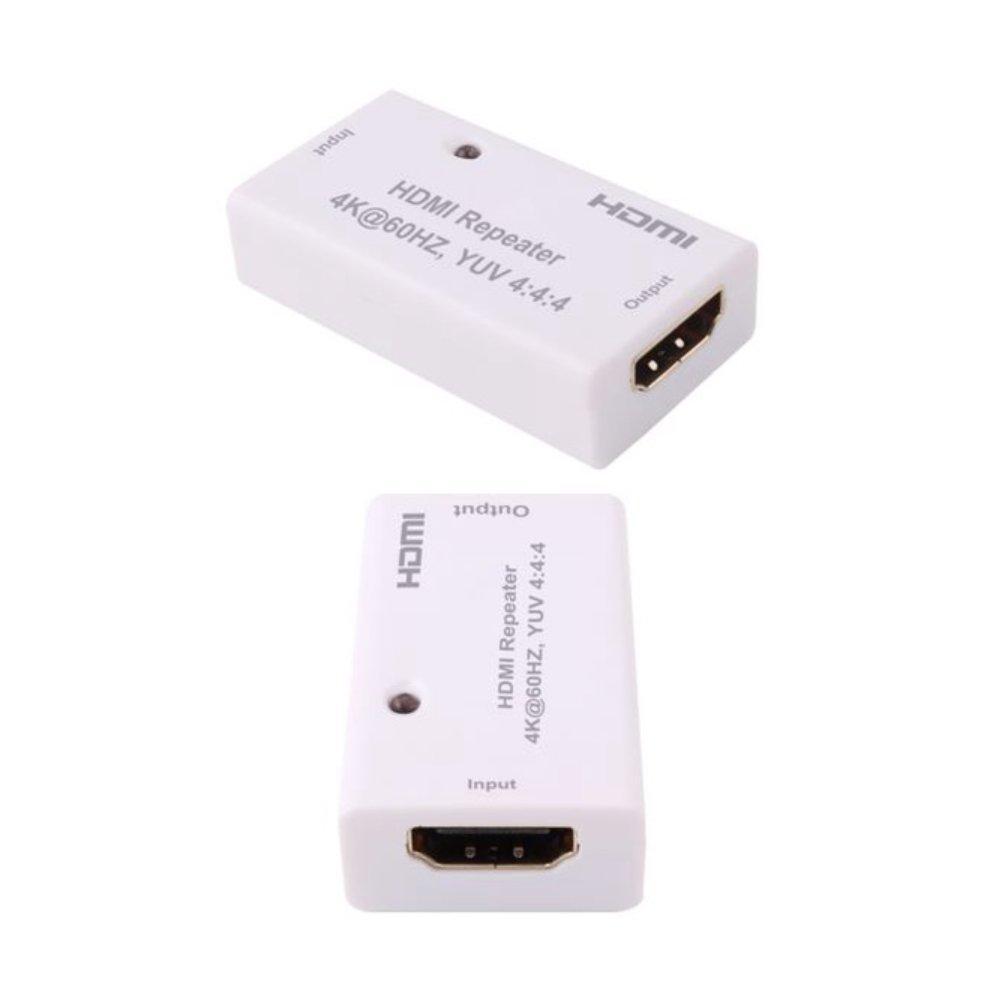

HDMI Inline Repeater Female to Female, 4K @60Hz up to 30m

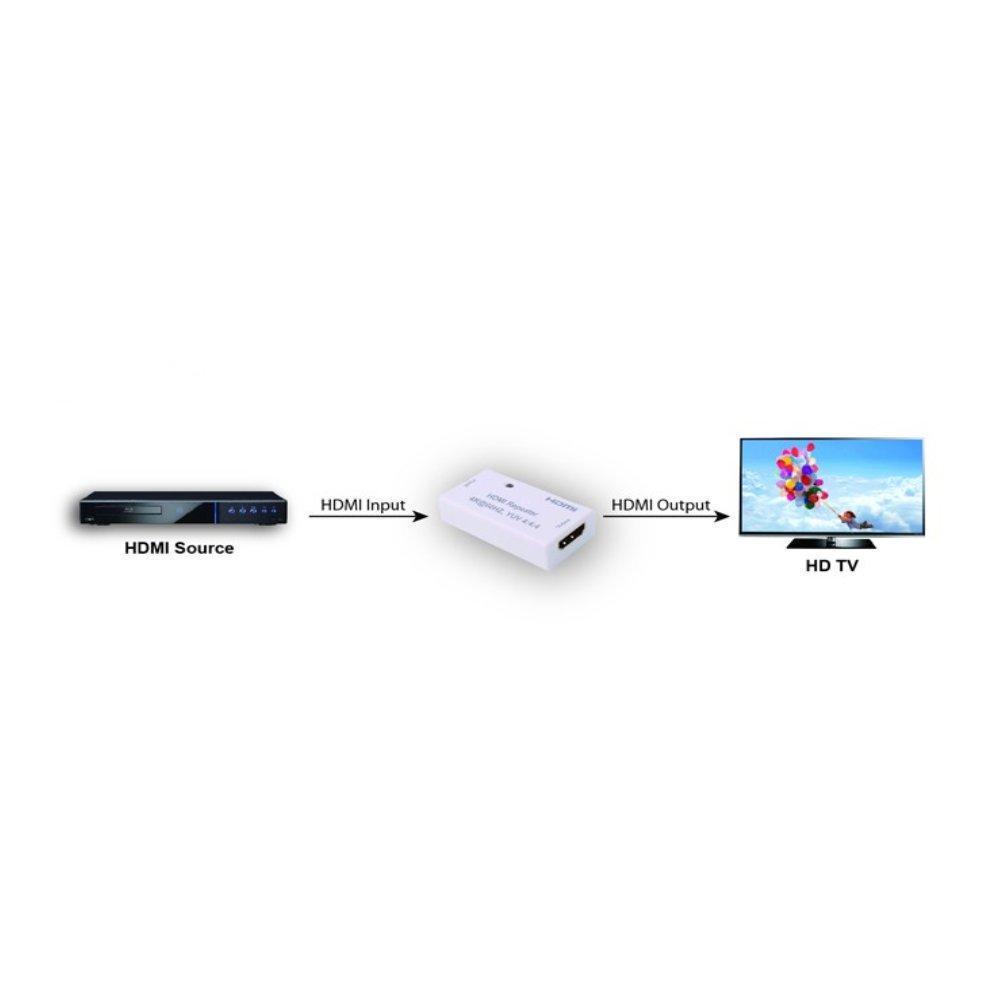

This 4K*2K HDMI repeater consists of HDMI female ports on both ends. It is used to extend the length of a HDMI cable by boosting the HDMI source signal before outputting it to a HDMI display.
Description
This 4K*2K HDMI repeater consists of HDMI female ports on both ends. It is used to extend the length of a HDMI cable by boosting the HDMI source signal before outputting it to a HDMI display.
|
Physical Characteristics
|
|
|---|---|
| Color | White |
| Housing | Plastic |
|
Connectors
|
|
| Video Input Connector | 1 – HDMI Female |
| Video Output Connector | 1 – HDMI Female |
|
Power
|
|
| Power Supply | Not Required |
|
Compatibility
|
|
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
|
Performance
|
|
| Resolution | Maximum: 3840 x 2160 (4k x 2k), YUV 4:4:4 |
| Vertical Frequency Range | Maximum: 60Hz |
| Video Amplifier Bandwidth | Up to 18Gbps |
| HDCP2.2 / HDCP1.4 Compliant | |
| Supports Uncompressed and Compressed Audio | |
| Supports 3D | |
| Cannot be daisy chained | |
| Signal Transmission | 80ft @ 4k x 2k @ 60Hz (50ft In, 30ft Out) 150ft @ 4k x 2k @ 30Hz (100ft In, 50ft Out) 200ft @ 1080p @ 60Hz (100ft In, 100ft Out) *Maximum Lengths May Vary Depending on the Source, Display and Cables Being Used |
|
Approvals
|
|
| FCC | Yes |
| CE | Yes |
| UL | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.03 lbs |
| Package Weight | 0.1 lbs [0.1kg] |
|
Contents
|
|
| Included in Package | 1 – HDMI Repeater |
