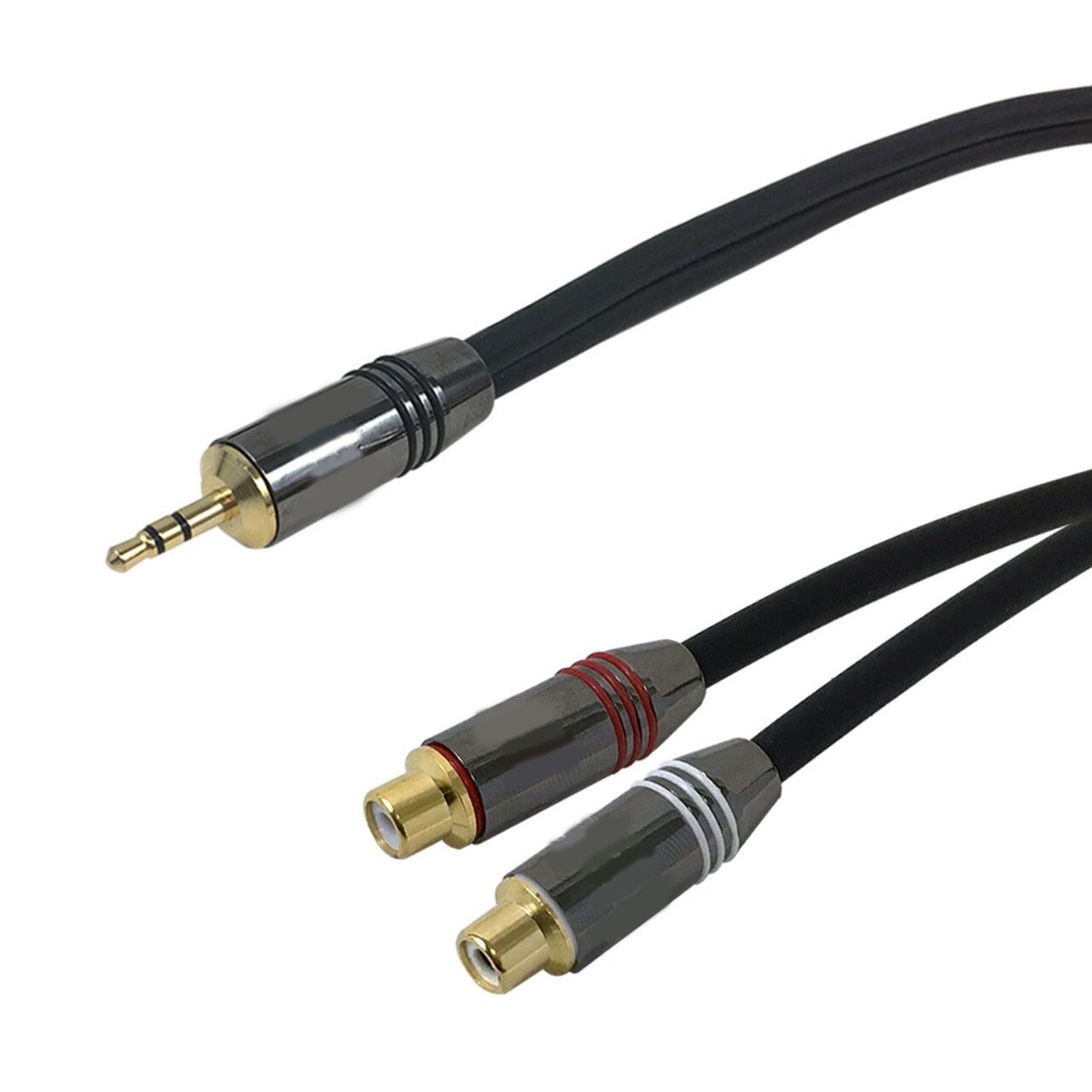

Premium 3.5mm Male to 2 x RCA Female Audio Cable
Description
This premium stereo audio cable has a 3.5mm male on one end and two RCA females on the other. It is typically used to connect 3.5mm audio devices such as PCs and stereo systems to dual channel RCA audio inputs.
- 22 gauge, heavy duty cable is used to capture all highs & lows for optimum audio performance
- Constructed of “siamese” cable for easy installation of left and right audio
- Constructed of low-loss, stranded 22 gauge OFHC (Oxygen Free Copper) with a foam polyethelene insulation around center conductors
- 95% braided copper shield surrounds dielectric for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors allows for extra flexible cables
- High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, “silver laced” solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 5.00mm x 10.00mm |
| Wire Gauge | 22AWG |
| Fire Rating | FT4 (Riser CMR) |
| Connector Plating | Nickel |
| Cable Shielding | 95% Bare Copper Braid |
| Strain Relief | Metal Shell |
|
Connectors
|
|
| Connector A | 3.5mm Stereo Male |
| Connector B | RCA Female – White |
| Connector C | RCA Female – Red |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
Cable Weights
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.45 lbs | 0.55 lbs | 0.80 lbs | 1.00 lbs | 1.35 lbs | 2.00 lbs | 2.65 lbs | 3.65 lbs |
