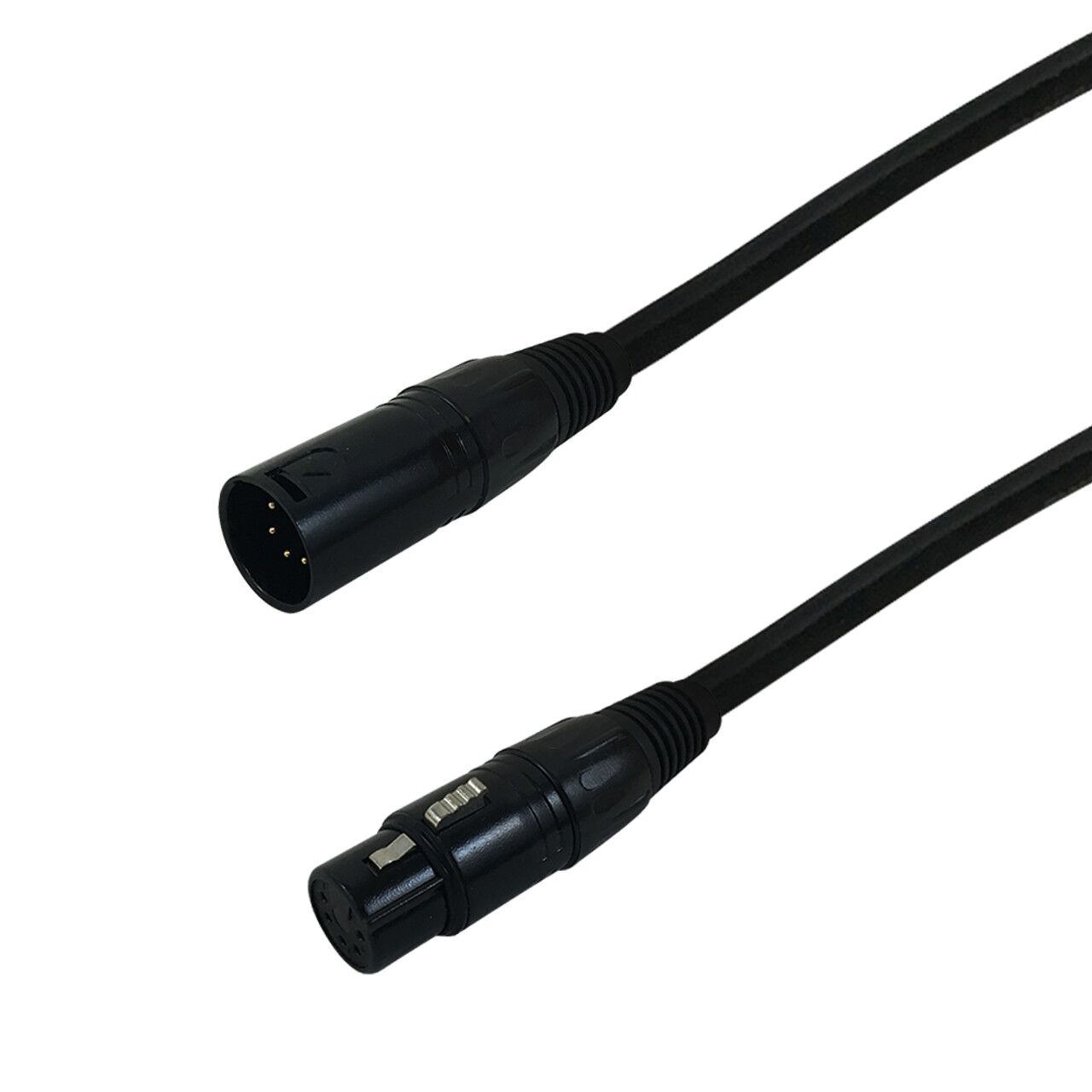

Premium 5-Pin XLR DMX Male To Female Cable
Description
This premium 5-pin DMX lighting cable has a 5-pin XLR male on one end and a 5-pin XLR female on the other. It is typically used to control stage lighting and effects.
- Constructed true 110 ohm cable for quick response time movement
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- 100% aluminum/mylar foil shield for superior EMI and RFI rejection
- High quality, heavy duty premium strain relief connectors optimizes connectivity and maintains a clear signal integrity
- Lead Free, “silver laced” solder is used in order to reduce loss and maximize conductivity
- Standard Color Kinetics ColorBlast® pinout.
|
Physical Characteristics
|
|
|---|---|
| Shielded | 100% aluminum/mylar foil shield, 85% Braid |
| Color | Black Cable, Nickel Plated Connectors, Gold Plated Pins |
| Cable Diameter | 7.1mm |
| Cable Temperature Rating | -30 deg C to 75 deg C |
|
Performance
|
|
| Impedance | 110 Ohms |
|
Connectors
|
|
| Connector A | 5-pin XLR Male |
| Connector B | 5-pin XLR Female |
|
Packaging Information
|
|
| Packaging Quantity | 1 Cable |
|
Warranty Information
|
|
| Warranty | Lifetime Limited |
Cable Weights
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs | 2.75 lbs | 3.52 lbs |
