Premium Ultra-Thin LCD SVGA + 3.5mm Audio Cable HD15 Male to Male CL2/FT4 Rated

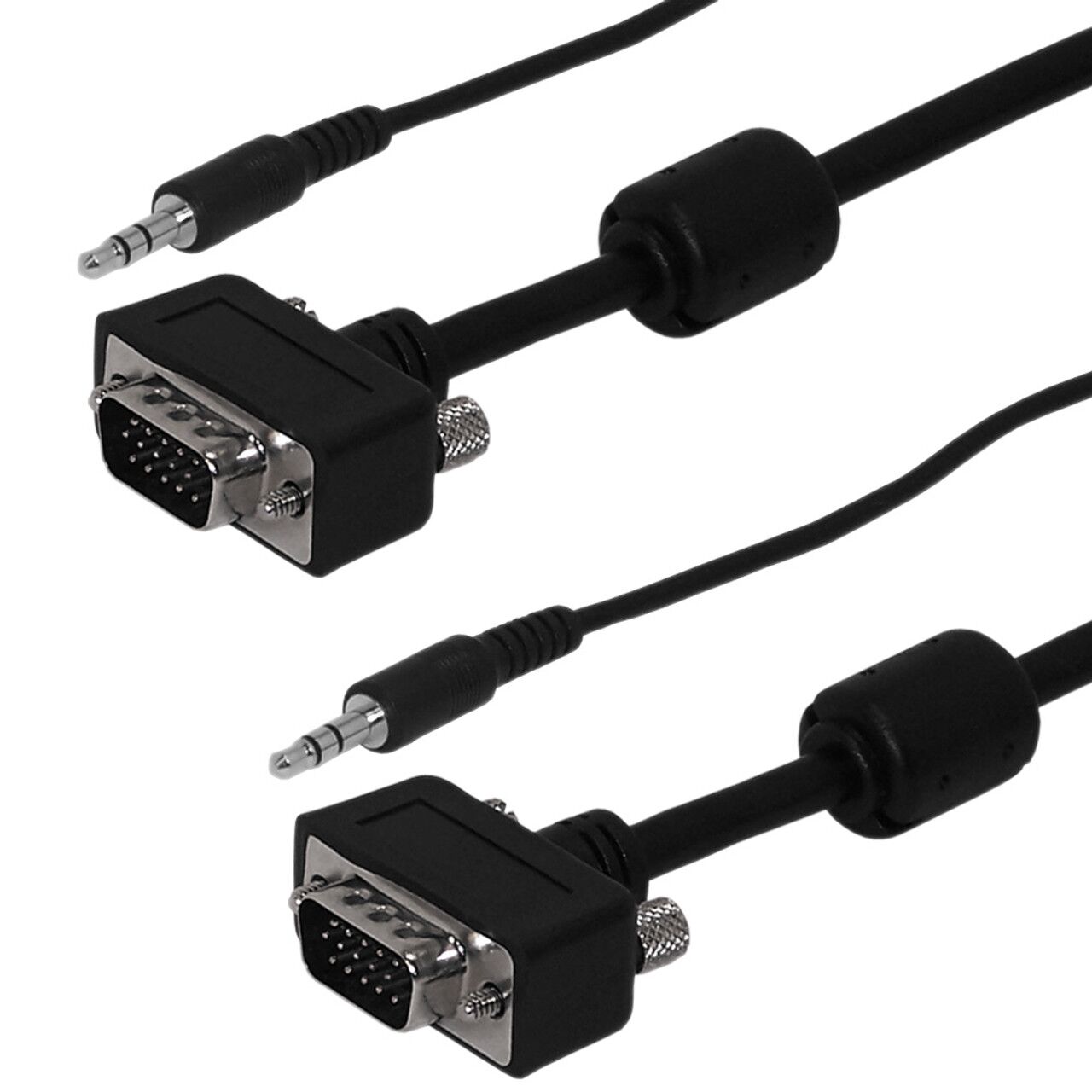

This ultra-thin SVGA cable consists of a HD15 male and 3.5mm stereo male on both ends. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as VGA flat panel monitors.
Description
This ultra-thin SVGA cable consists of a HD15 male and 3.5mm stereo male on both ends. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as VGA flat panel monitors.
- Constructed of a combination of 3 mini coax cables and 9 conductors for optimal SVGA video quality
- This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
- Ferrite cores placed at either end of the cable further enhance the video quality
- Fully CL2/FT4 fire rated for in-wall use
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Wire Gauge – Coax | 3 – 30AWG Mini-Coax |
| Wire Gauge – Conductors | 9 – 30AWG Conductors |
| Wire Gauge – Audio | 2C – 30AWG Conductors |
| Cable Diameter | 6.50 mm |
| Shielding | AEB Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
|
Connector(s)
|
|
| Connector A | 1 – SVGA HD15 Male 1 – 3.5mm Stereo Male |
| Connector B | 1 – SVGA HD15 Male 1 – 3.5mm Stereo Male |
|
Performance
|
|
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
|
Approvals
|
|
| c(UL)us | Approved Cable |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 Cable |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.25 lbs | 0.40 lbs | 0.55 lbs | 0.70 lbs | 1.05 lbs | 1.40 lbs | 1.90 lbs | 2.70 lbs | 3.50 lbs |
