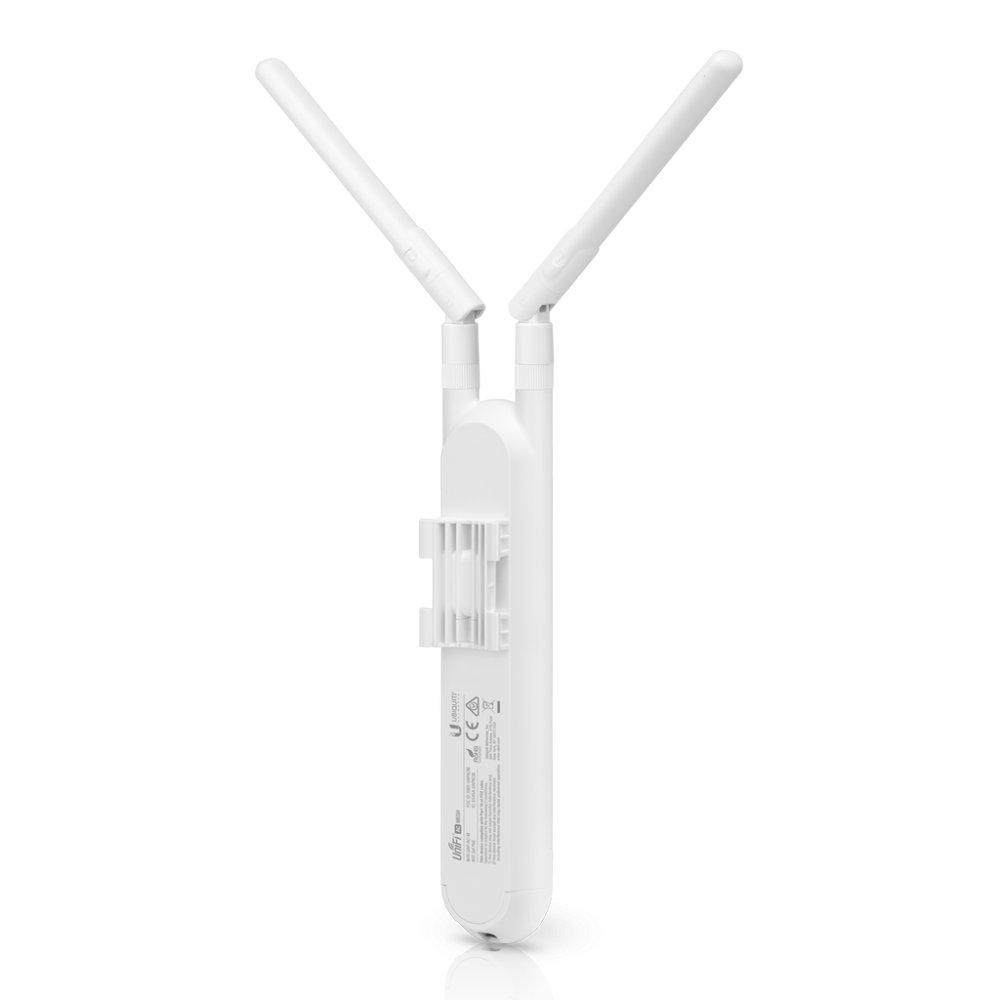

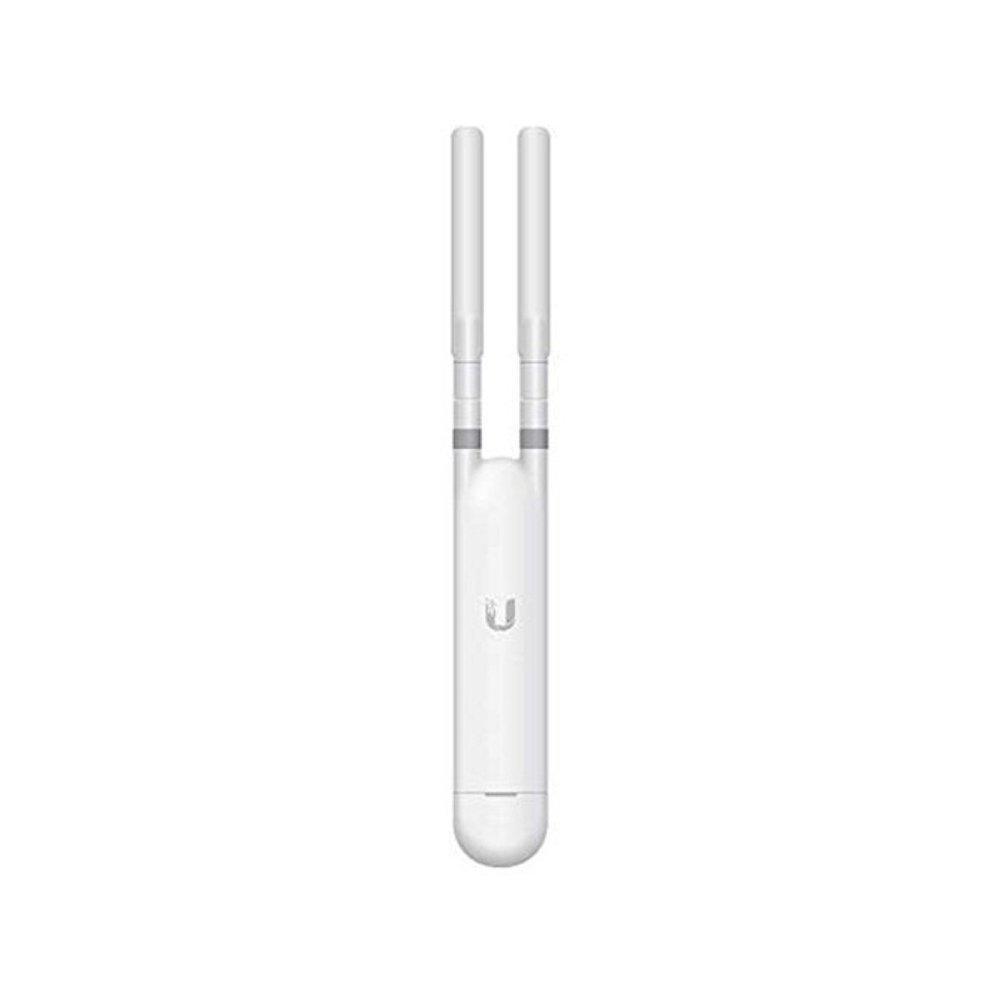

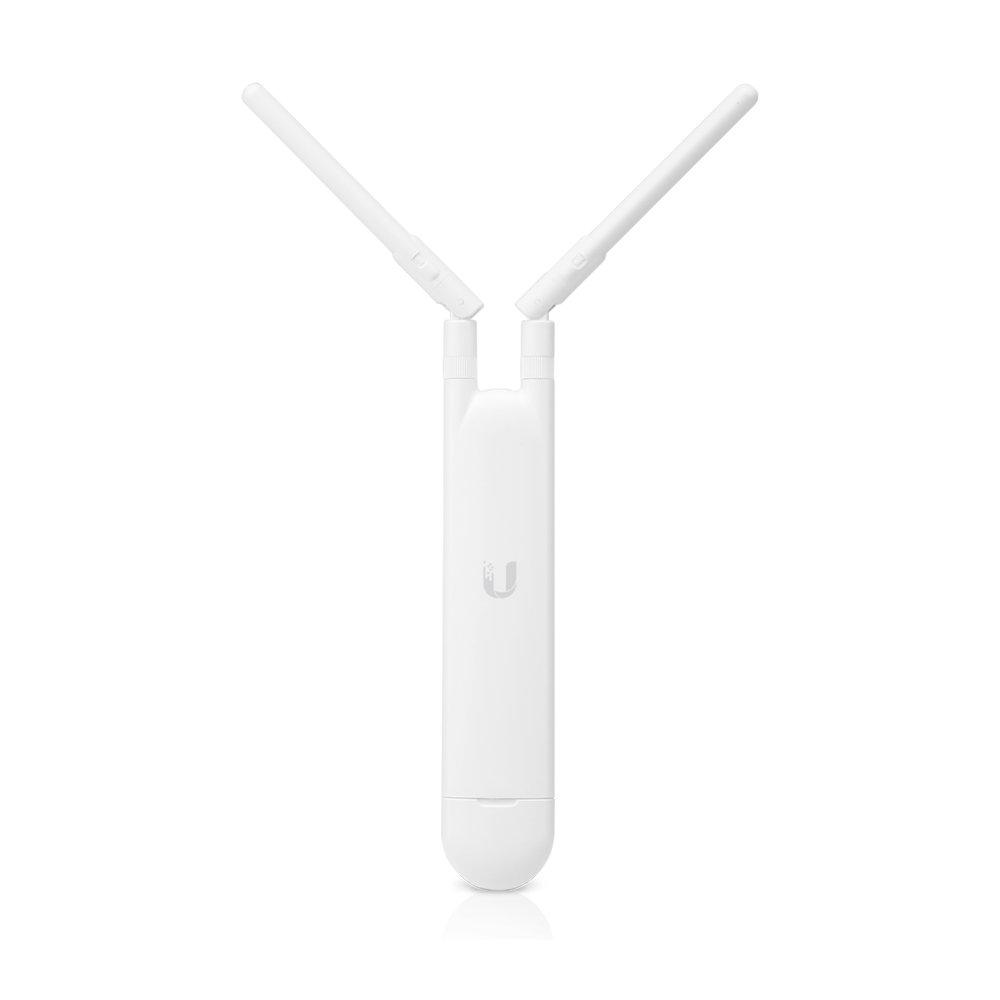

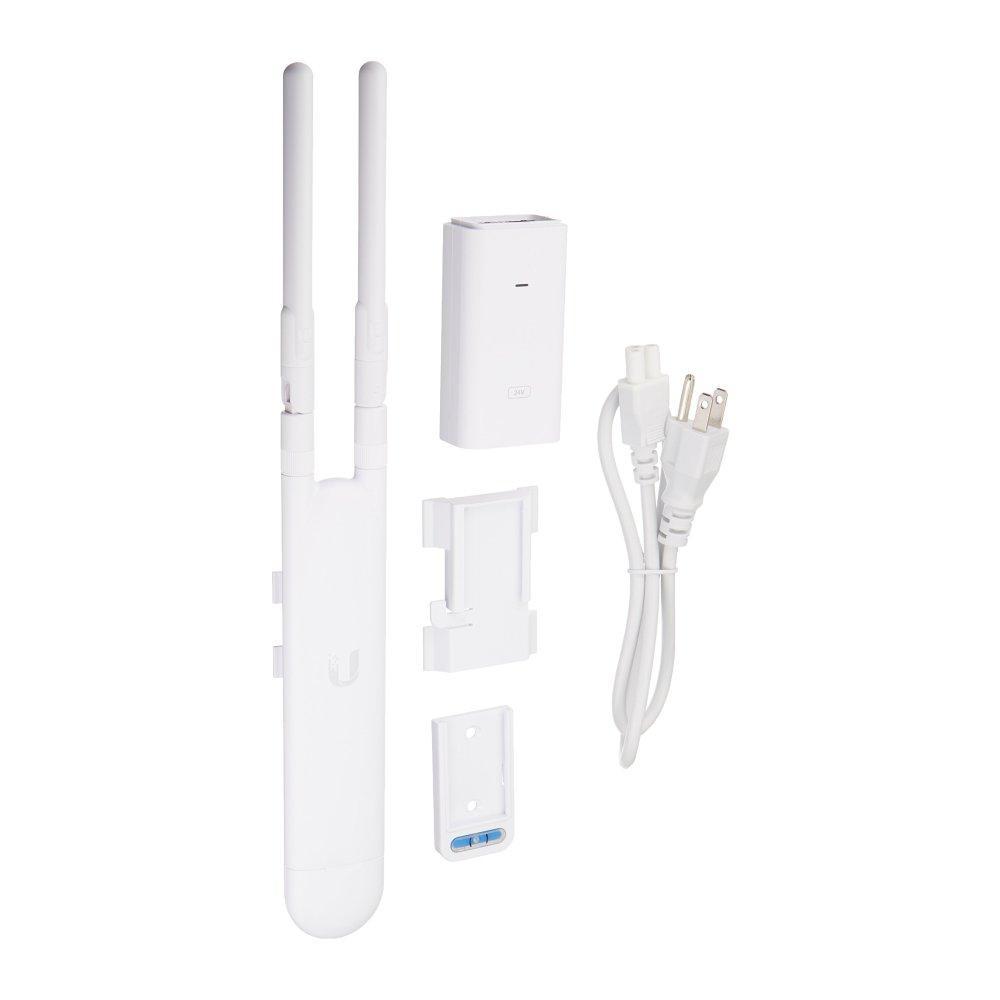

Ubiquiti UniFi AC Mesh UAP-AC-M IEEE 802.11ac 1.71 Gbit/s Wireless Access Point
The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1 Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands.
Description
The Access Point AC Mesh (UAP AC Mesh) is a high-performance, outdoor-ready, dual-band, 802.11ac WiFi access point than can reach a 1.1 Gbps aggregate throughput rate with its 5 GHz and 2.4 GHz bands. The UAP AC Mesh features two, omnidirectional WIFi antennas (2×2 MIMO) to provide robust and extensive wireless coverage 360° coverage, as well as (2) RP-SMA connectors that can be used in tandem with the antennae for customized pattern shaping. This access point is powered with either PoE or 24V passive PoE and is equipped with (1) GbE RJ45 port for high-speed LAN connectivity. The UAP AC Mesh can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features:
- 802.11ac Wave 1 WiFi technology
- Dual omnidirectional antennae with 2×2 MIMO functionality
- 5 GHz band with an 867 Mbps throughput rate
- 2.4 GHz band with a 300 Mbps throughput rate
- (2) RP-SMA connectors for customized pattern shaping
- Powered with PoE* or 24V passive PoE
- (1) GbE RJ45 port
| Mechanical | |
|---|---|
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35″) |
| Weight | With Antennas: 152 g (5.36 oz) |
| Hardware | |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| Antennas | (2) Dual-Band Antennas |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) PoE Alternative A (Pairs 1, 2+; 3, 6 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* *5-packs do not come with PoE injectors. |
| Supported Voltage Range | 44 to 57VDC |
| Maximum Power Consumption | 8.5W |
| Max. TX Power | 20 dBm |
| Mounting | Wall/Pole/Fast-Mount (Kits Included) |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 802.11a/b/g/n/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| VLAN | 802.1Q |
| BSSID | Up to 4 per Radio |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Power Save | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
