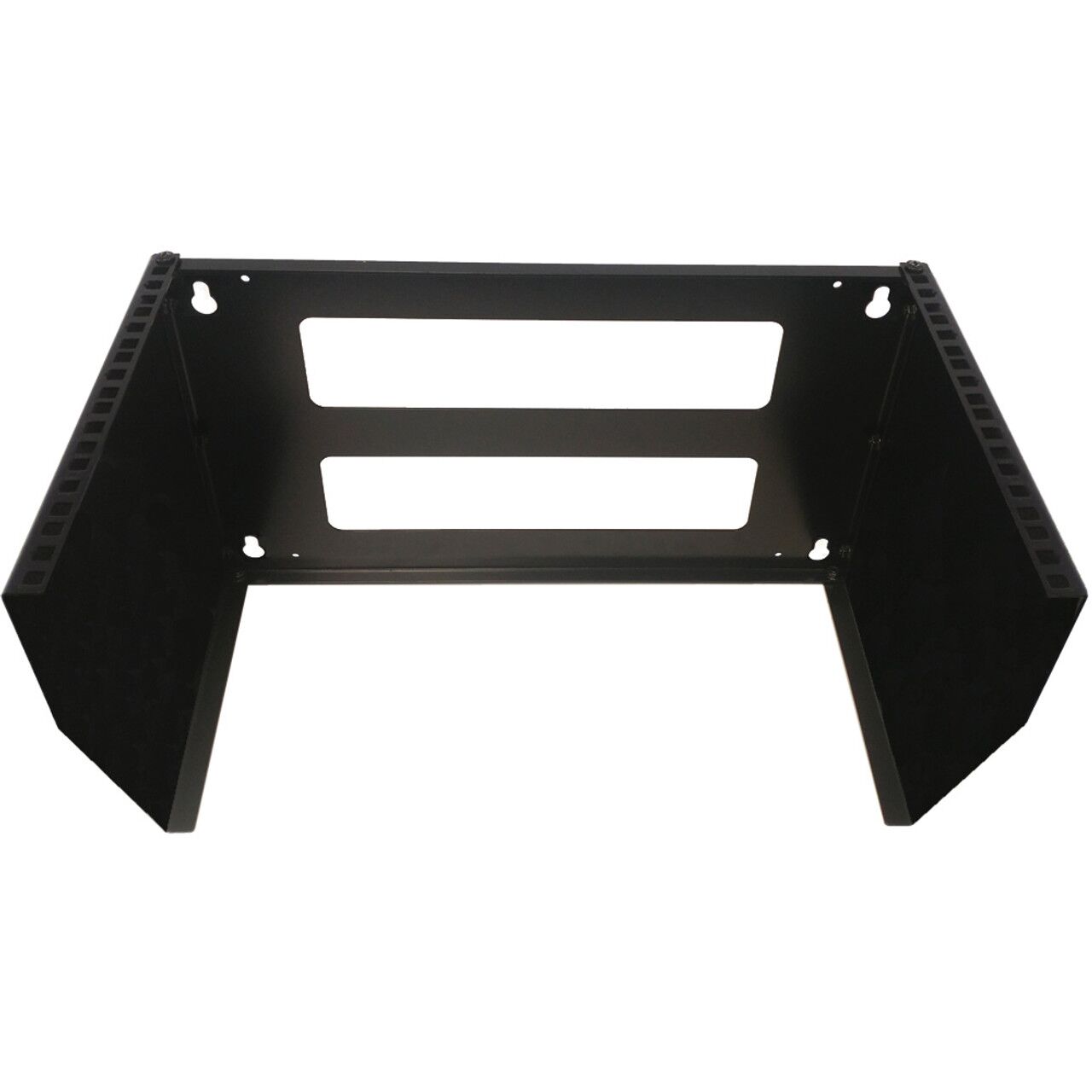

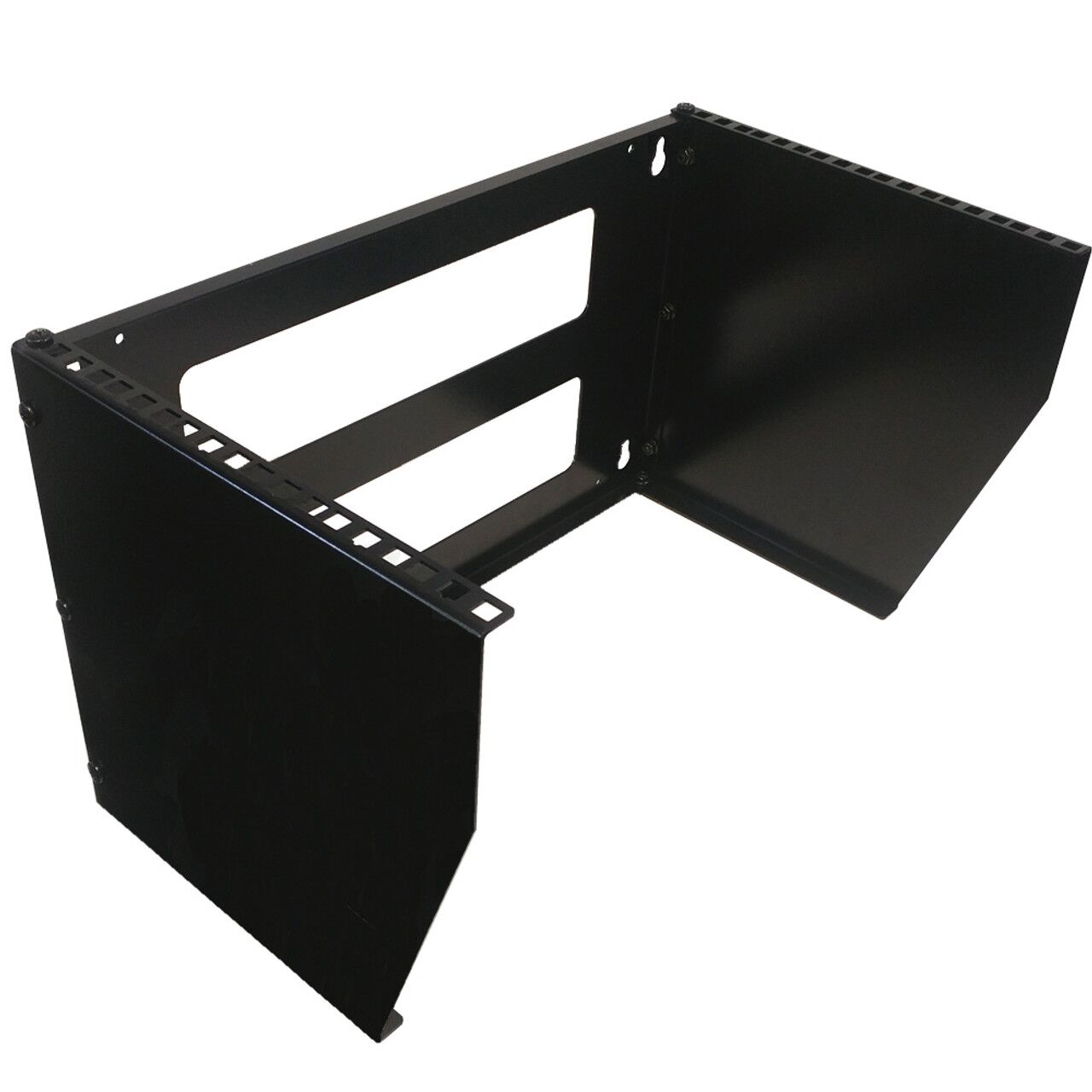

Vertical Wall Mount Rack – 6U
This vertical wall mount rack is 6U in depth. It is used for mounting 19″ wide networking equipment vertically. Works well in a small office or home where space is limited.
Description
This vertical wall mount rack is 6U in depth. It is used for mounting 19″ wide networking equipment vertically. Works well in a small office or home where space is limited.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | 2.0mm SPCC Cold Rolled Steel |
| Depth in units | 6U |
| Height in inches | 11.3 inches [287mm] |
| Rail Mounting Style | Square Hole Punched Rails |
| Mounting Rail Thickness | 2.2mm |
| Mounting Width | 19 Inches |
| Overall Dimensions | 11.3H x 19.2W x 11.2D Inches |
| Rear Wire Access Hole | 2 (15.6 x 3 inches) |
| Load Capacity | 66lbs (30kg) |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
|
Approvals
|
|
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 9 lbs [4.08kg] |
|
Content
|
|
| Included in Package | 1 – Vertical Wall Mount Rack |
| 10 – M6 Black Screws with Washers and Clip Nuts | |
| 10 – M6 Clip Nuts | |
