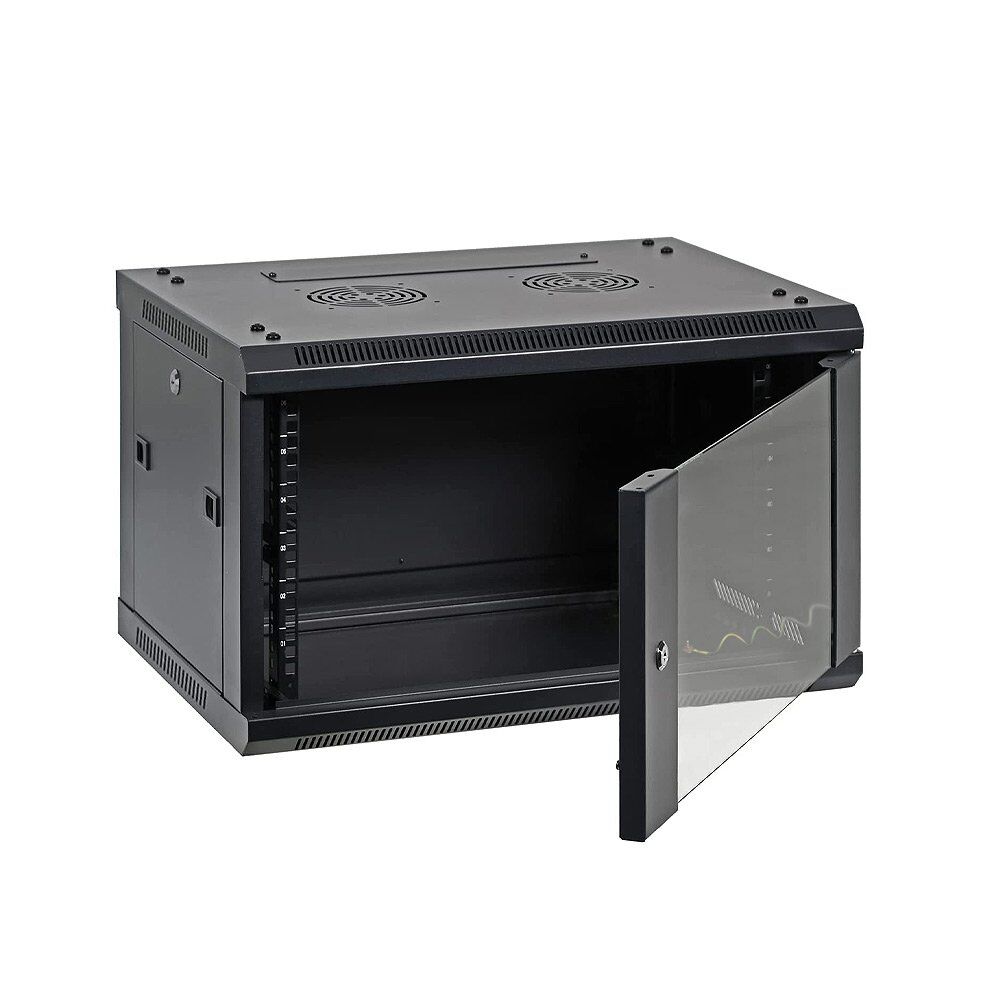

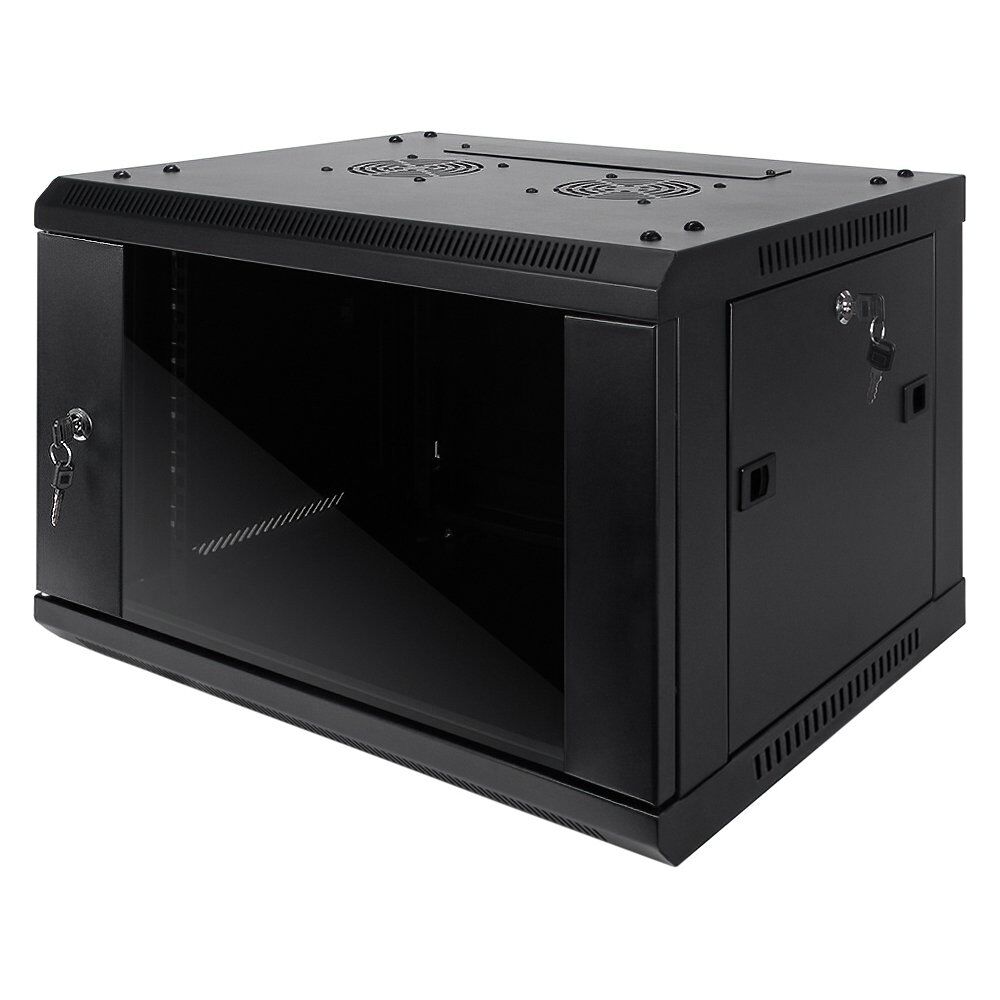

Wall Mount Cabinet 6U x 18″ Depth, Glass Door – Black
This 6U wall-mount enclosure is the perfect solution to install, secure, and organize rack equipment in wiring rooms, corridors, communication areas, retail locations, and other locations with limited space. Wall-mounted cabinets are widely used because of their small size, easy installation and disassembly, easy management, and anti-theft features.
$99.99
Description
Size: 14.3″ H x 22.4″ W x 17.7″ D. Total Usable Space of 13.50″ front to back.
Security and Protection: Locking front door and side panel prevent unauthorized access to equipment’s.

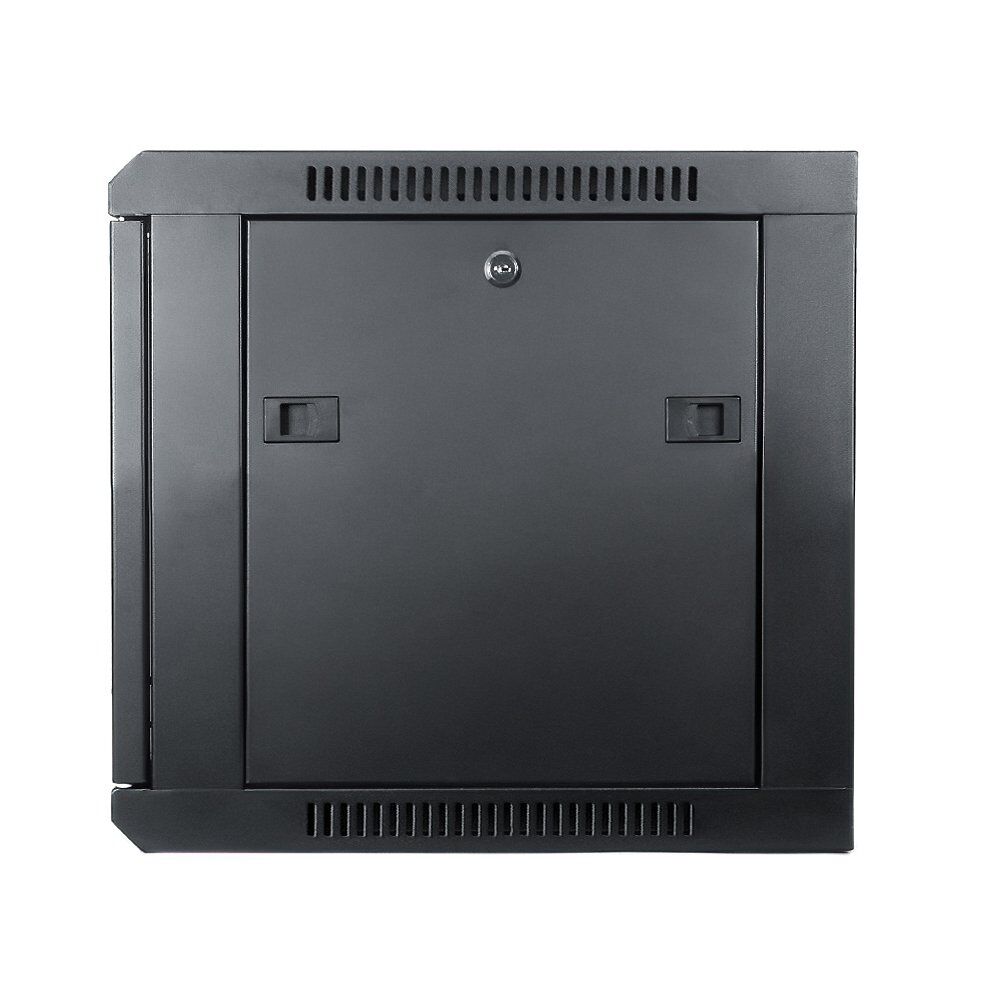

Easy Access: Quick open side panel for easy maintenance.
Warranty: 3 years limited warranty and lifetime technical supports.
| Weight | 33.9 lbs |
|---|
|
Physical Characteristics
|
|
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:1.35mm, Others:1.0 mm |
| Doors | Glass front door can be assembled to open in either direction Opening angle of front door is over 180 degrees |
| Locks | Locking front door and side panels |
| Removable Side Panels | Yes |
| Adjustable Mounting Profile Installation | Yes |
| Assembly Required | Yes (Flat Packed) |
| Loading Capacity | Maximum 132 lbs [60 kg] |
| Cable Entries | Cable entry on both of top cover and bottom panel |
| Width | 22.4 inches |
| Capacity | 6U |
| Product Dimensions | 14.3″ H x 22.4″ W x 17.7″ D. inches |

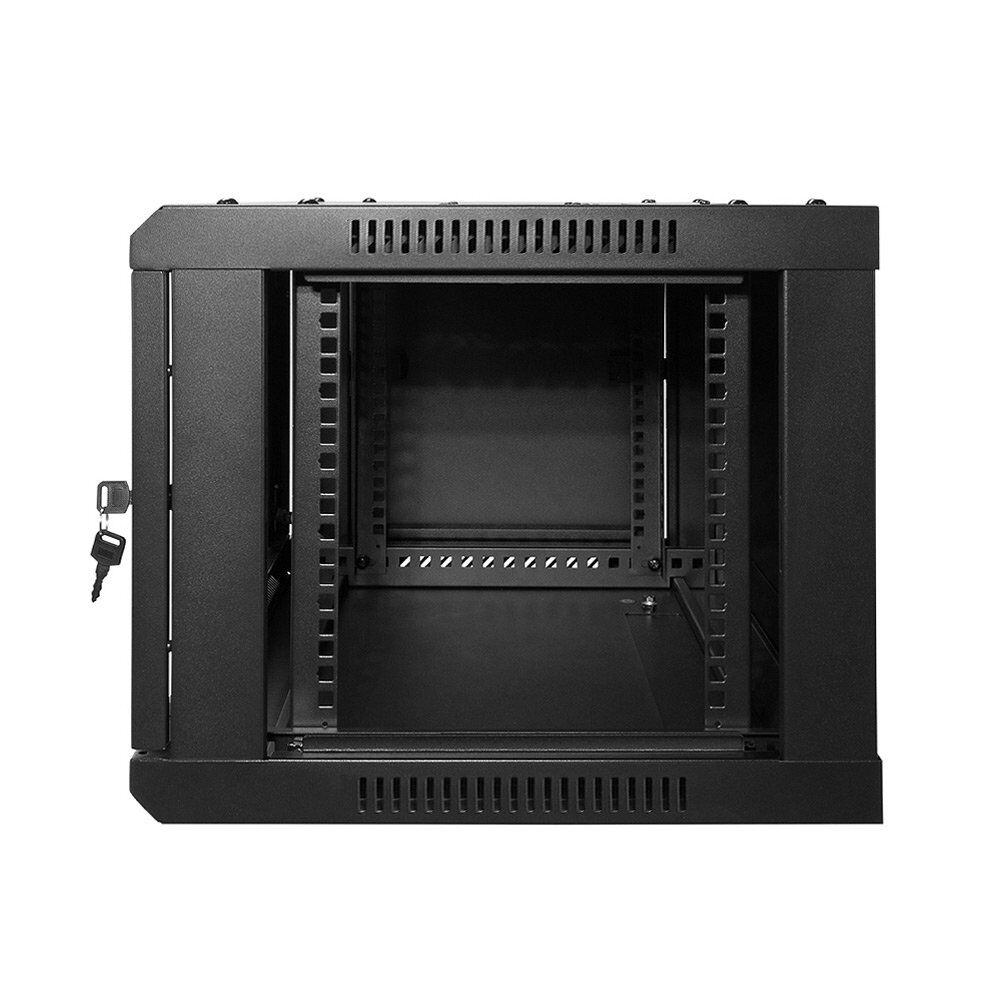

| Mounting Rails | 2 pairs of square hole rails Adjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail) |
| Usable Mounting Dimensions | 6U Height x 19″ Wide x 13.5″ Deep |
| Cooling Fans | Not Included, Sold Separately (RM-615) |
| Grounding Stud | Yes |
|
Compatible Products
|
|
| RM-500-BRUSH | Brush Opening Cover for Cable Knockout with Screws for RM-5XX Cabinets |
| RM-615 | Fan Kit for RM-500 Series Wall Mount Cabinets – Low Decibel 28dBa – 55 CFM – Pair |
|
Approvals
|
|
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 – Wall Mount Cabinet 6U (Unassembled) |
| Mounting Hardware | 10 Sets – M6 Screws and Cage Nuts |
| Product Weight | 33.9 lbs [19kg] |
