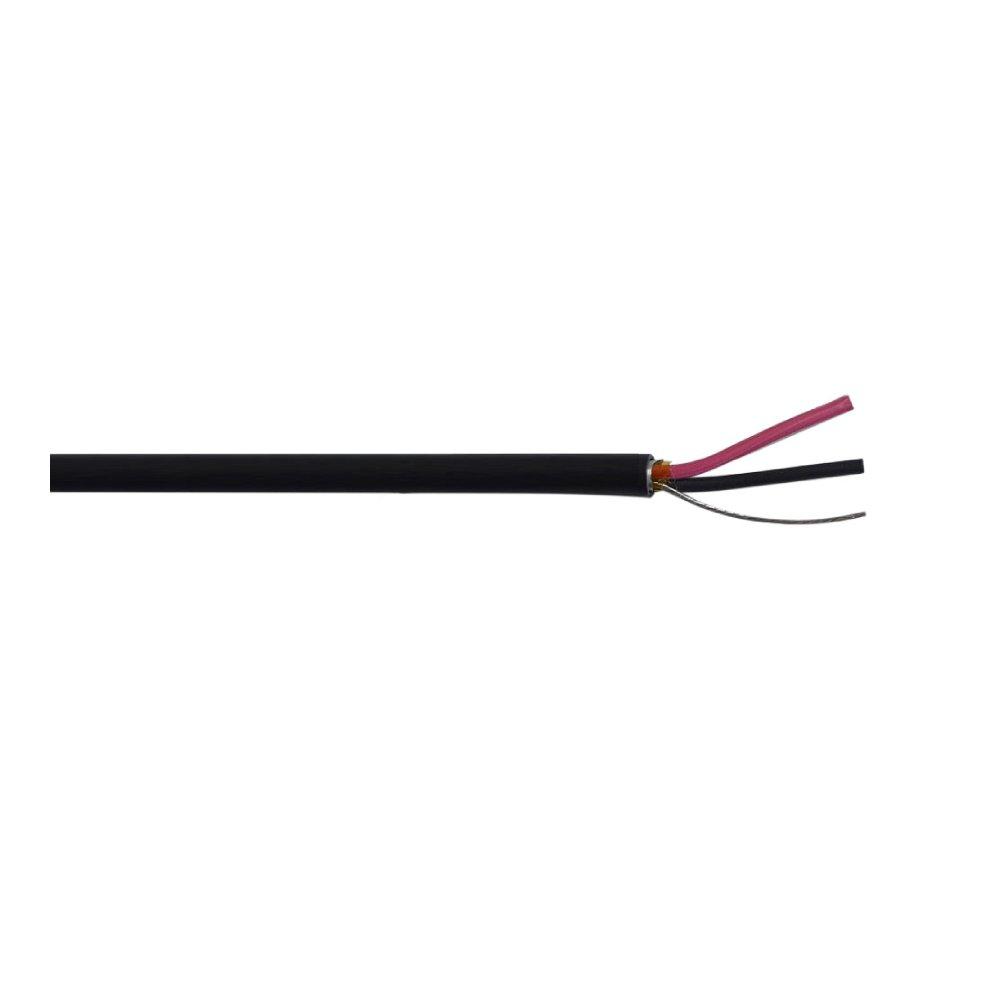

1000ft 2C 18AWG stranded control cable CMP foil shielded – Black
This 2 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
$274.99
Description
This 2 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
|
Physical Characteristics
|
|
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | Black |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC |
| Outer Diameter | 4.60± 0.10mm |
| Min. Ave. Jacket Thickness | 0.45 mm |
| Wire Gauge | 18 AWG |
| Material (conduct0rs) | Bare Copper |
| Maximum Voltage | 300V |
| Stranding | 16/0.254±0.004mm |
| Individual Conductor | 1.7±0.05mm |
| Inner Jacket Material | PVC |
| Drain Wire (TC) | 7/0.20 |
| Shielding | Aluminum Foil |
| Ripcord | Nylon |
| Temperature Rating | 75°C |
| Flamability Test | CMP/FT6 (Plenum Rated) |
|
Certifications
|
|
| RoHS | Yes |
| c(UL) | Yes |
| UL | Yes |
|
Packaging Information
|
|

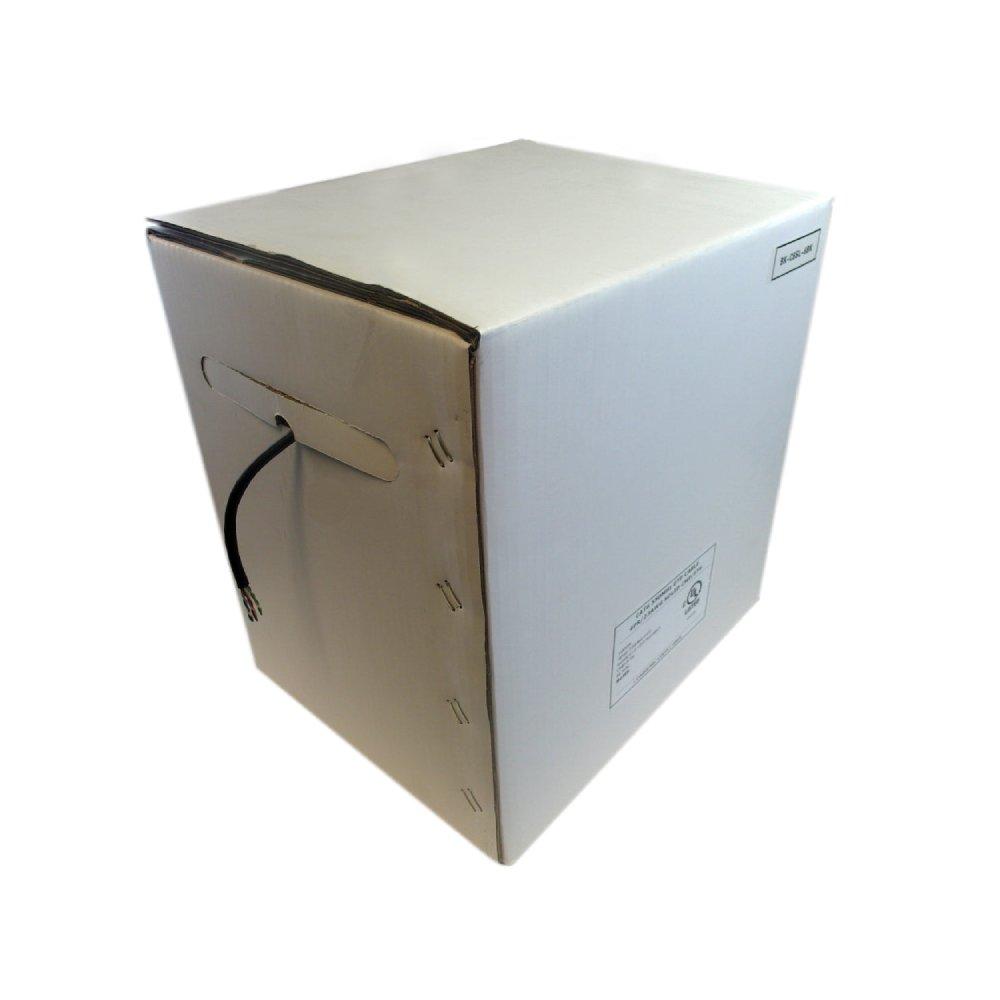

| Package Quantity | 1 Pull Box |
| Product Weight | 21.56 lbs |
