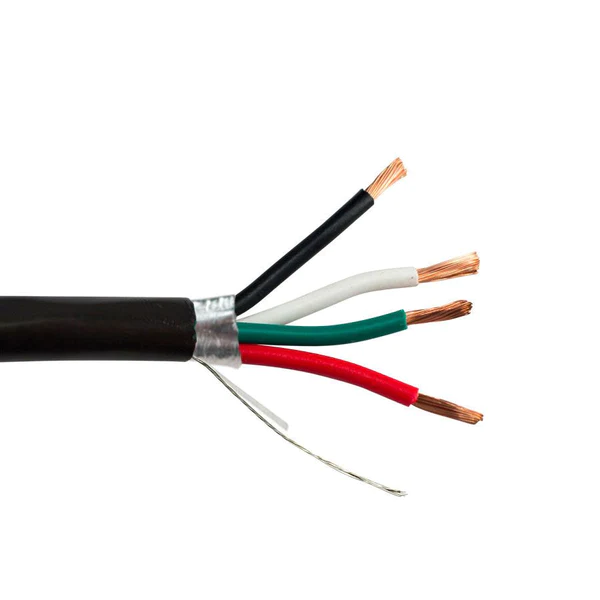

1000ft 4C 18AWG Stranded Control Cable CMR Shielded
This 4 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
Description
This 4 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
|
Physical Characteristics
|
|
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | Black |
| Number of Conductors | 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC) |
| Jacket Material | PVC |
| Outer Diameter | 5.8mm |
| Wire Gauge | 18 AWG |
| Material (conductors) | Bare Copper |
| Stranding | 16/0.25mm |
| Insulation Material | PVC |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.9mm |
| Shielding | Overall Foil Shielded 110% |
| Drain Wire | 7*0.2mm Tinned Copper Drain Wire |
| Ripcord | Nylon |
| Temperature Rating | -20ºC ~ 75ºC |
| Operating Voltage | 300V |
| Flammability Test | In Wall CMR/FT4 |
|
Mechanical Characteristics
|
|
| Before Tensile Strength | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (ºCxhrs) |
100×168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) |
No Crack |
|
Certifications
|
|
| RoHS | Yes |
| Reach | Yes |
| c(ETL)us | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 Pull Box |
| Product Weight | 39 lbs |
