24-Port CAT6A Shielded Patch Panel, 19″ Rackmount 1U

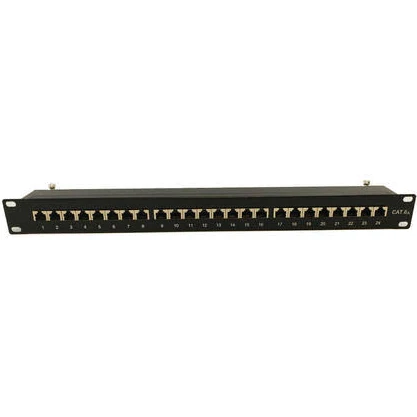

This 24 port Cat6a 1U shielded patch panel has shielded RJ45 female ports on the front and 110 punch-down style terminals on the rear. It has a built in cable manager and is meant to be mounted on a 19″ rack or cabinet. It provides an easy method to terminate raw Cat6a shielded cable runs.
Description
This 24 port Cat6a 1U shielded patch panel has shielded RJ45 female ports on the front and 110 punch-down style terminals on the rear. It has a built in cable manager and is meant to be mounted on a 19″ rack or cabinet. It provides an easy method to terminate raw Cat6a shielded cable runs.
| Physical Characteristics | |
|---|---|
| Color | Black Powder Coated |
| Panel Material | SECC Steel, 1.2mm thickness |
| Jack Material | Housing and Contact Bracket: PBT+Glass Fiber |
| Jack Contact Material | Phosphor Bronze with Nickel Plating |
| Jack Contact Finish | Gold Plated |
| Jack Shield | Bronze with Nickel Plating |
| Connector Type | Cat6a |
| Color Code | 568A or 568B |
| Operating Temperature | -10 deg C to 60 deg C |
| Ports | 24 |
| Rack Space | 1U |
| Product Dimensions | 19″ W x 1.7″ H [48 cm W x 4.3 cm H] |
| Insertion Force | 30N max |
| Retention Strength | 7.7 kg between jack and plug |
| Rackmountable | Yes, 19″ Rack or Cabinet |
| Cable Management | Yes |
| Connectors | |
| Front | 24 – RJ45 Shielded CAT6a Female |
| Rear | 12 x 4 Pair – 110 Style Shielded Punch-Down Terminations |
| Compatible Tool | |
| TLH-410 | Professional 110/88 Style Impact Punchdown Tool – 4 Pair |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 – Patch Panel 1 – Cable Jacket 25 – Cable Ties |
| Product Weight | 3.2 lbs [1.5 kg] |
