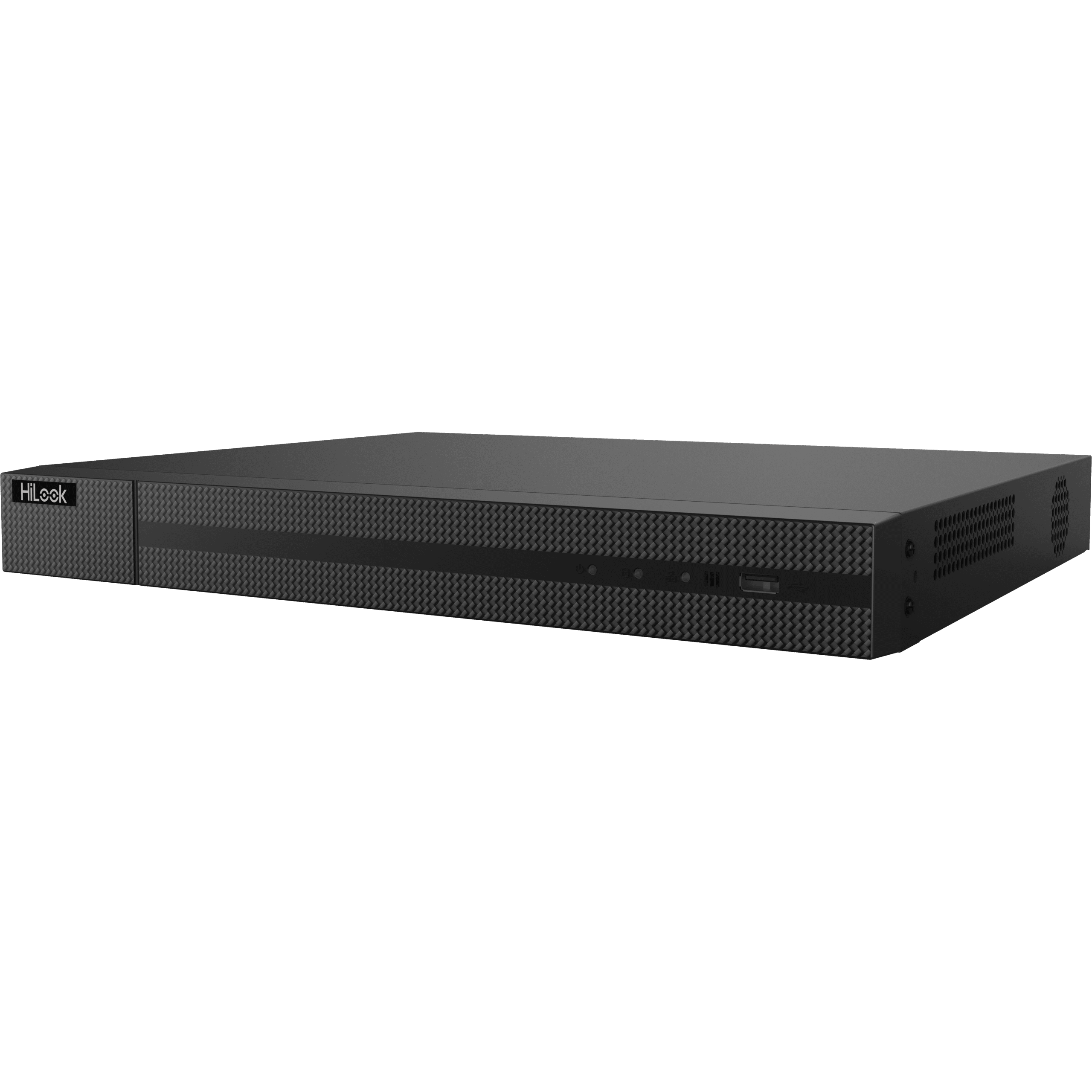

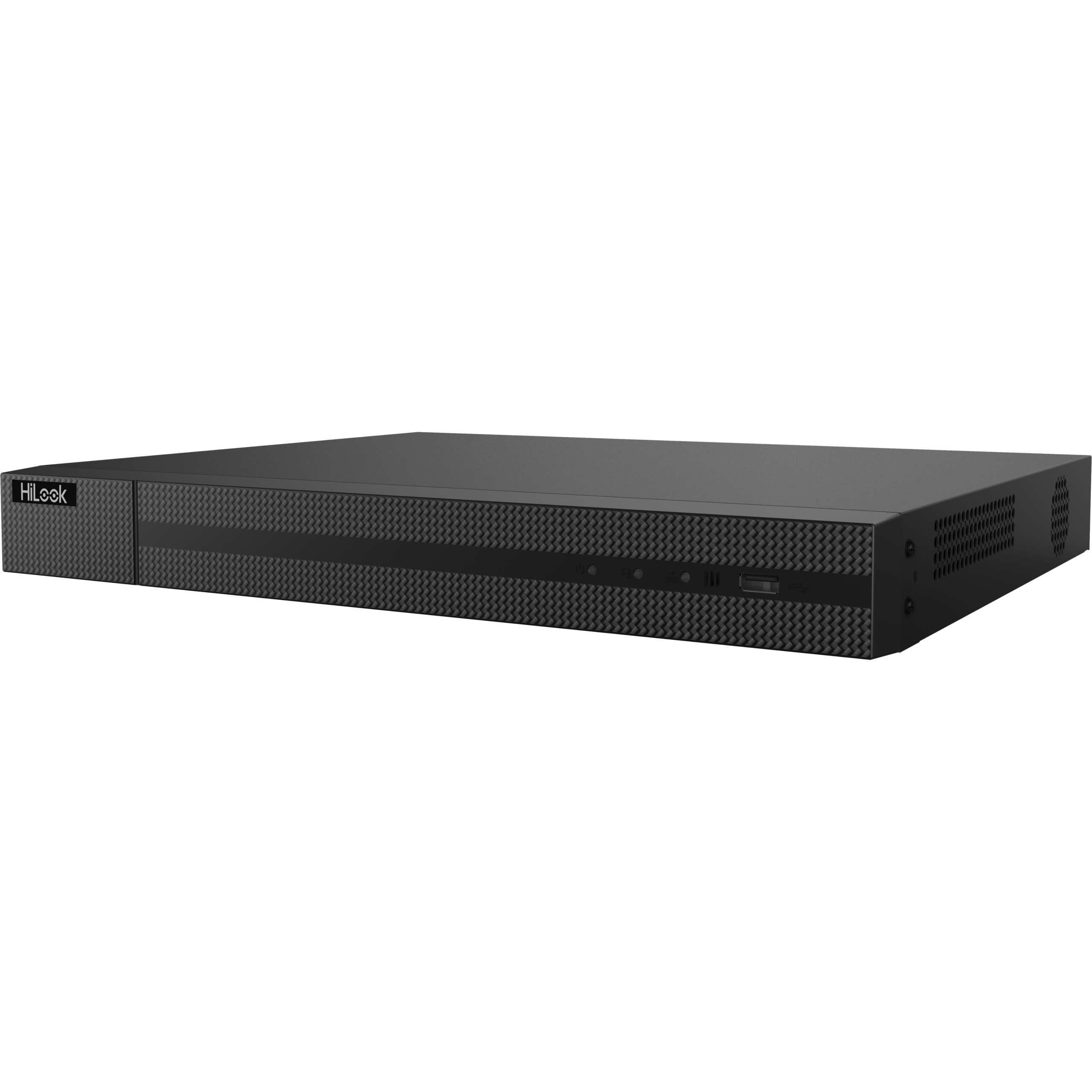

8 Channel 4K PoE Network Video Recorder (NVR) – 1U Rackmount, H.265+, 80Mbps Bandwidth, HDMI 4K Output, Supports 8TB HDD
Professional 8-Channel 4K PoE Network Video Recorder (NVR) designed for modern IP surveillance systems. Supports 8 IP cameras, H.265+/H.265 compression, 4K HDMI output, motion detection with human/vehicle analysis, and up to 80 Mbps bandwidth. Compact 1U rackmount design with 8 PoE ports and support for up to 16TB storage (2×8TB HDD).
$199.00
Description
The 8-Channel 1U 4K PoE Network Video Recorder (NVR) is a powerful and reliable solution for professional security and surveillance systems. Built to support up to 8 IP cameras, it provides high-quality video recording with advanced compression technologies including H.265+, H.265, H.264+, and H.264, ensuring efficient storage usage without compromising video quality.
This NVR features 4K HDMI output for ultra-high-definition monitoring and simultaneous HDMI and VGA video output, making it suitable for various display configurations. With 80 Mbps incoming and outgoing bandwidth, the system ensures smooth video transmission and recording.
Equipped with Motion Detection 2.0 and Human/Vehicle Analysis, the recorder improves security by reducing false alarms and enabling smarter detection capabilities. The 8 built-in PoE ports simplify installation by powering IP cameras directly through Ethernet cables.
The unit supports up to two SATA hard drives with 8TB capacity each, providing up to 16TB of total storage, making it suitable for small businesses, offices, retail stores, and residential security systems.
Its compact 1U rackmount chassis ensures easy installation in server racks or security cabinets while maintaining reliable performance in demanding environments.
| Category | Specification |
|---|---|
| Video Input | 8 Channel IP Cameras |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Motion Detection | Motion Detection 2.0 |
| Smart Detection | Human & Vehicle Analysis |
| Smart Event Channels | 4 Channels |
| HDMI Output | 1 × HDMI (Up to 4K 4096×2160 @30Hz) |
| VGA Output | 1 × VGA (Up to 1920×1080 @60Hz) |
| Video Output Mode | HDMI & VGA Simultaneous |
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 × RCA |
| Recording Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, VGA, CIF |
| Decoding Capability | 1-ch @ 8MP / 3-ch @ 4MP / 6-ch @ 1080p |
| Synchronous Playback | 8 Channels |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet |
| PoE Ports | 8 × RJ-45 10/100 Mbps |
| PoE Standard | IEEE 802.3 af/at |
| Remote Connections | Up to 32 Users |
| Supported Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, HTTP, HTTPS, SMTP, SNMP, NFS, iSCSI, UPnP |
| SATA Interfaces | 2 |
| Maximum Storage | Up to 8TB per HDD (16TB total) |
| USB Ports | 2 × USB 2.0 |
| Power Supply | 48V DC, 2.5A |
| Power Consumption | ≤15W (without HDD & PoE) |
| PoE Power Budget | ≤80W |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% – 90% |
| Chassis Type | 1U Rackmount |
| Device Dimensions | 385 × 315 × 52 mm |
