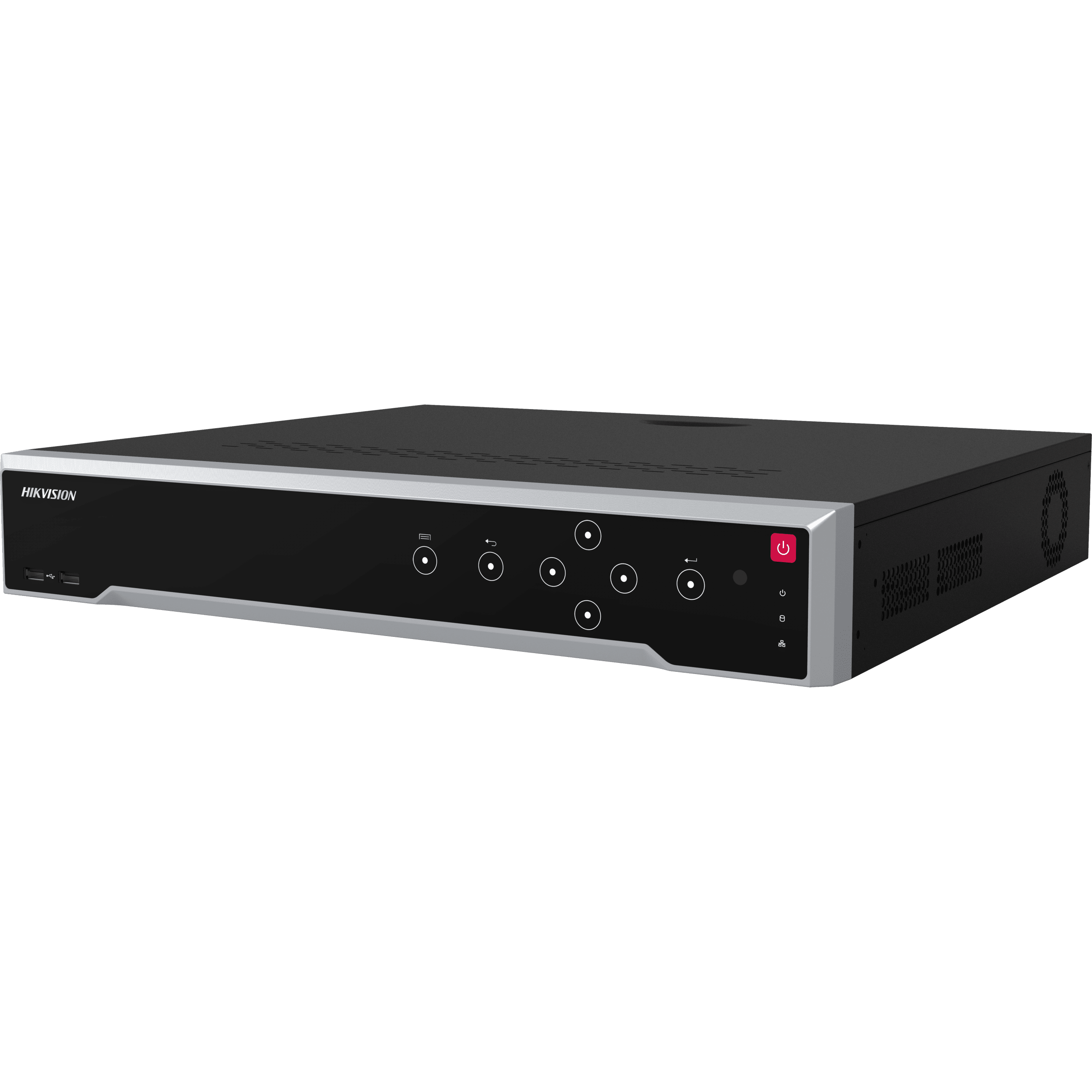

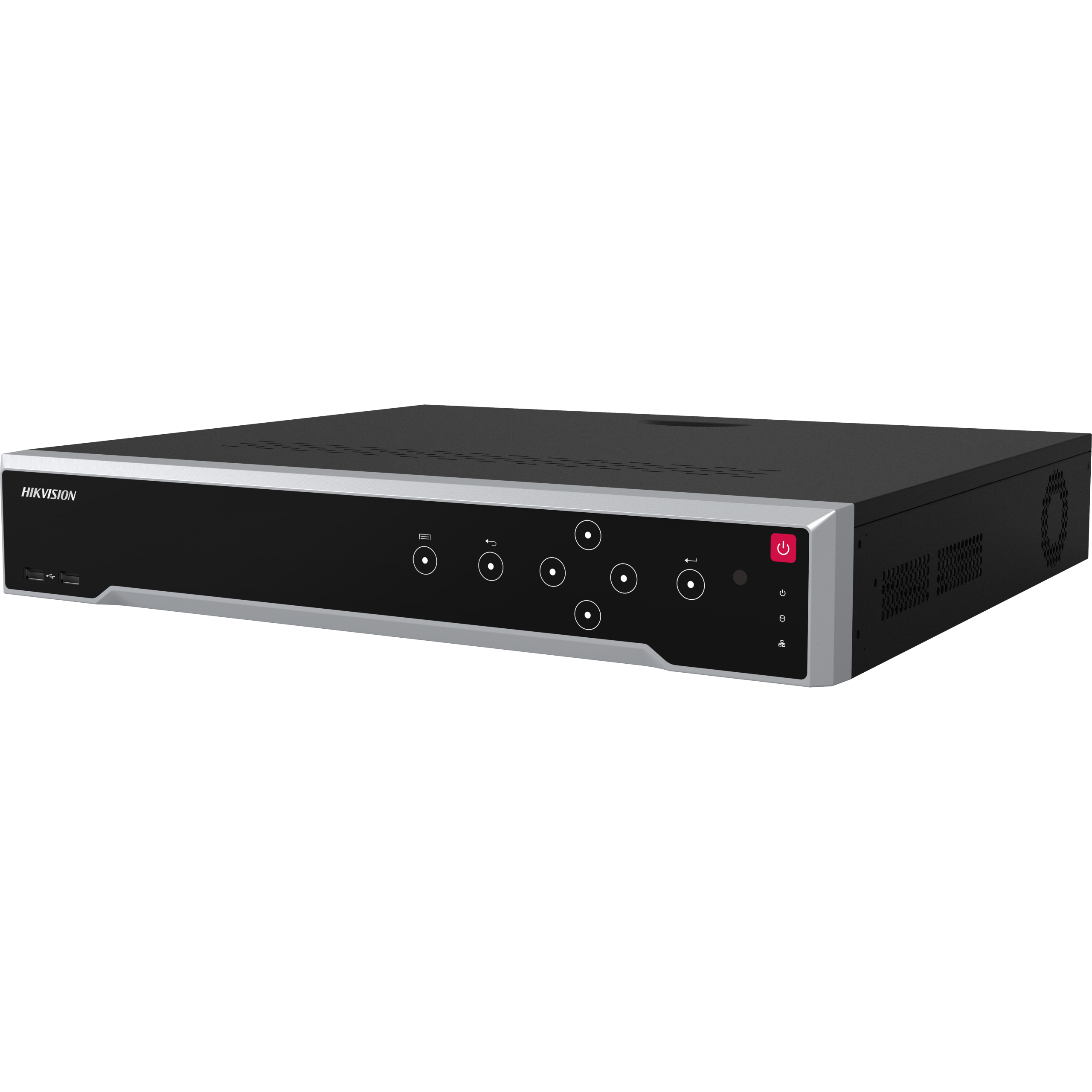

32-Channel 8K Network Video Recorder (NVR) – 320Mbps, H.265+, 4 SATA, Dual HDMI, 32MP Support
Professional 32-channel 8K NVR designed for large-scale IP surveillance systems. Supports up to 32MP cameras, 320 Mbps incoming bandwidth, dual HDMI outputs (8K/4K), 4 SATA bays (up to 16TB each), and advanced H.265+ compression for efficient storage and smooth playback.
$699.00
Description
This 32-channel 8K Network Video Recorder (NVR) is built for enterprise-grade and high-resolution surveillance environments such as warehouses, commercial buildings, retail chains, offices, schools, and industrial facilities. With support for up to 32 IP cameras and resolutions up to 32MP, it delivers ultra-clear video recording and powerful decoding performance.
The recorder supports advanced H.265+/H.265/H.264+/H.264 compression, significantly reducing bandwidth usage and storage requirements without compromising video quality. With an impressive 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, it ensures smooth recording and remote streaming even in high-traffic network environments.
Ultra HD & 8K Video Output
Equipped with dual HDMI outputs, this NVR supports:
- 8K (7680 × 4320) at 30Hz via HDMI 1
- 4K at 60Hz and 30Hz
- 2K and Full HD output options
It also includes VGA and CVBS outputs for flexible display configurations. HDMI1 and VGA can output simultaneously, while HDMI2 and VGA operate independently.
High-Performance Decoding
The device offers powerful decoding capability, including:
- 2-ch @ 32MP (30fps) + 2-ch @ 8MP (30fps)
- 10-ch @ 8MP (30fps)
- 20-ch @ 4MP (30fps)
- Up to 40-ch @ 1080p (30fps)
It supports 16-channel synchronous playback, making it ideal for detailed incident review.
Flexible Storage Expansion
With 4 SATA interfaces, each supporting up to 16TB, this NVR provides large storage capacity suitable for long-term recording. An additional eSATA interface allows external storage expansion.
Advanced Network & Integration
- Dual Gigabit Ethernet ports (RJ-45 10/100/1000 Mbps)
- Supports up to 128 remote connections
- ONVIF 2.5 & RTSP compatibility
Multiple network protocols including TCP/IP, DHCP, IPv4/IPv6, HTTP/HTTPS, SNMP, NFS, iSCSI, and more
It also supports up to 8 IP speakers, enabling audio broadcasting and two-way communication.
Alarm & Control Features
- 16 alarm inputs / 9 alarm outputs
- Controllable 12V DC output for external alarm devices
- RS-485 and RS-232 serial interfaces
- Dual-stream recording support
Designed in a 19-inch 1.5U rack-mount chassis, this NVR is suitable for professional server rack installations.
| Weight | 11.02 lbs |
|---|---|
| Dimensions | 44.5 × 40 × 7.5 cm |
| Category | Specification |
|---|---|
| Video Input | 32 IP channels |
| Maximum IP Resolution | Up to 32MP |
| Ultra HD Mode | Supports up to 8-ch 32MP/24MP inputs when enabled |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA / CIF variants |
| Decoding Capability | 2-ch@32MP (30fps) + 2-ch@8MP (30fps) / 10-ch@8MP / 20-ch@4MP / 40-ch@1080p |
| Synchronous Playback | 16 channels |
| Dual-Stream Recording | Supported |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2 |
| Two-Way Audio | 1-ch RCA |
| HDMI 1 Output | 8K (7680×4320)@30Hz / 4K@60Hz / 4K@30Hz / 2K@60Hz / 1080p@60Hz |
| HDMI 2 Output | 4K (3840×2160)@60Hz / 4K@30Hz / 2K@60Hz / 1080p@60Hz |
| VGA Output | 1920×1080@60Hz |
| CVBS Output | 1-ch BNC (PAL/NTSC) |
| Video Output Mode | HDMI1 & VGA simultaneous; HDMI2 & VGA independent |
| IP Speaker Support | Up to 8 IP speakers |
| Ethernet Ports | 2 × RJ-45 (10/100/1000 Mbps) |
| Remote Connections | Up to 128 users |
| Supported Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS, ONVIF 2.5 |
| Camera Protocol | ONVIF (2.5), RTSP |
| SATA Interfaces | 4 |
| Max HDD Capacity | Up to 16TB per disk |
| eSATA | 1 interface |
| Alarm Input / Output | 16 In / 9 Out |
| Serial Interface | 2 × RS-485 (half-duplex), 1 × RS-232 |
| USB Ports | 2 × USB 2.0 (Front), 1 × USB 3.0 (Rear) |
| Controllable 12V Output | 12V DC, 1A (linked to alarm output 9) |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | ≤ 15W (without HDD) |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% |
| Chassis Type | 19-inch rack-mounted, 1.5U |
| Dimensions (W×D×H) | 445 × 400 × 75 mm |
| Weight | ≤ 5 kg (without HDD) |
| Certifications | FCC Part 15 Subpart B, CE Compliant |
