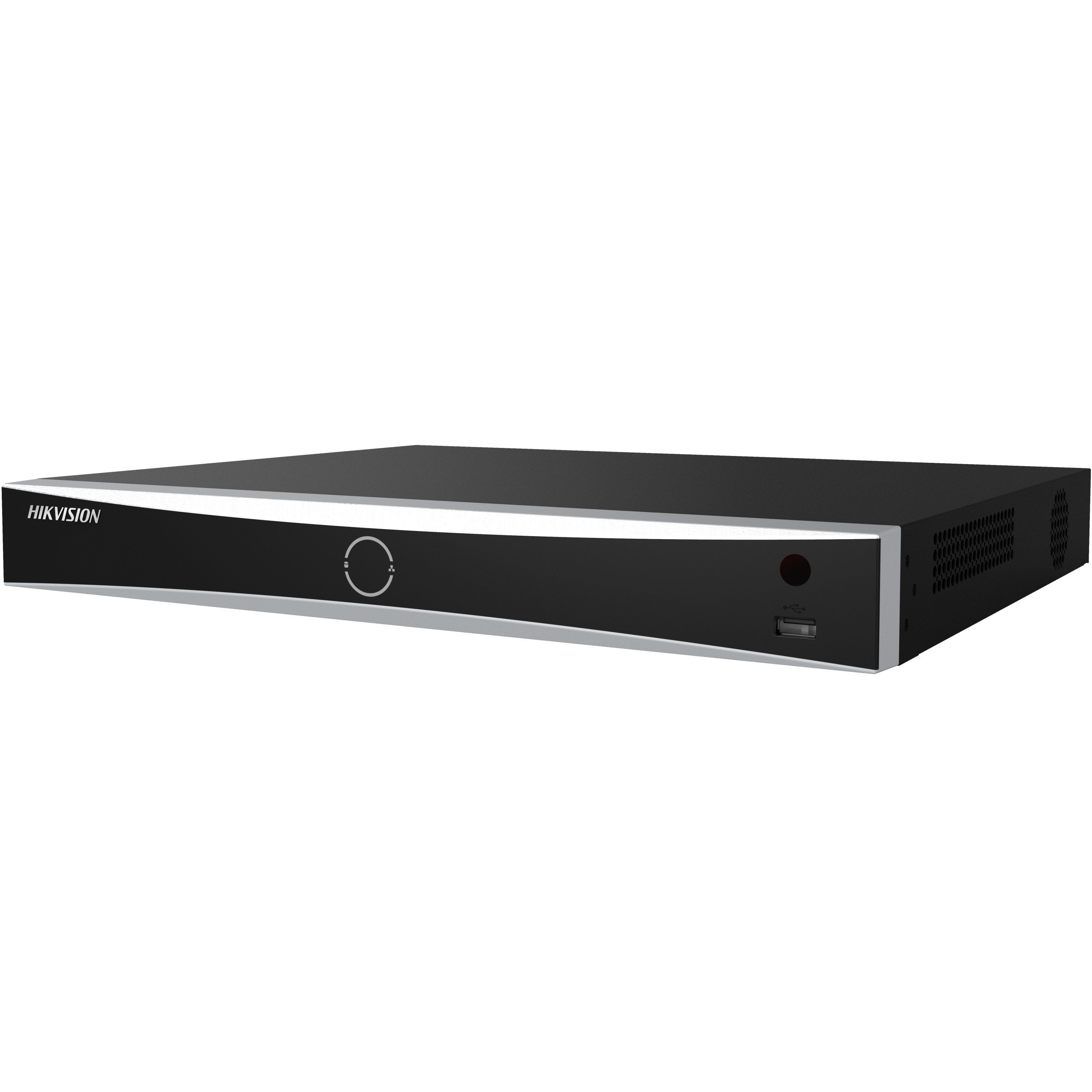

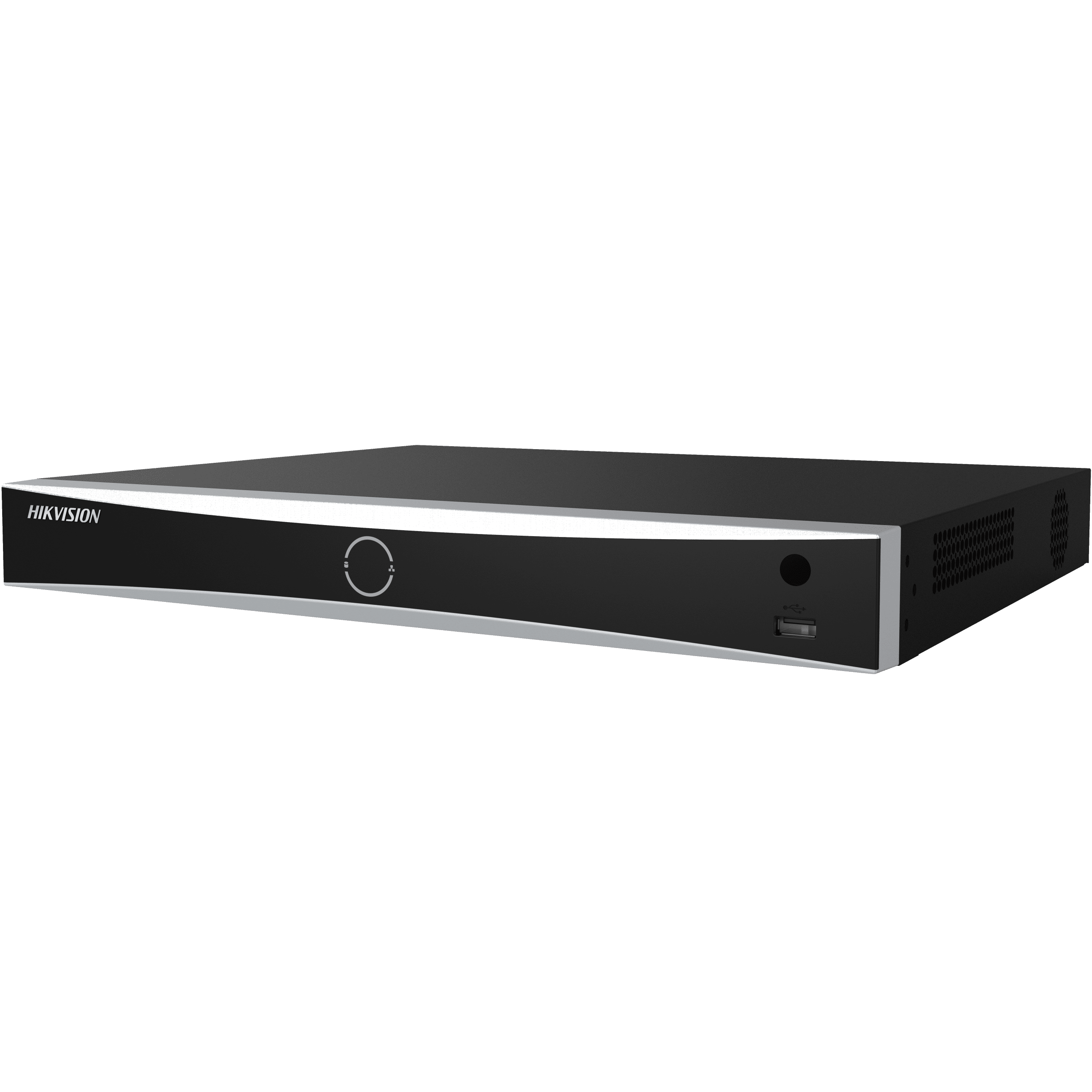

Hikvision DS-7616NXI-K2/16P 16-Channel PoE 4K AcuSense NVR | 16-Port PoE | 160Mbps | H.265+ | Facial Recognition
The Hikvision DS-7616NXI-K2/16P is a powerful 16-channel 4K NVR with built-in 16 PoE ports and AcuSense AI technology. Supporting up to 12MP resolution, 160 Mbps bandwidth, facial recognition, perimeter protection, and advanced motion detection, this 1U rackmount NVR delivers intelligent, high-performance surveillance for commercial and enterprise applications.
$469.99
Description
The Hikvision DS-7616NXI-K2/16P 16-Channel PoE 4K AcuSense NVR is designed for professional IP surveillance systems requiring intelligent analytics and reliable high-resolution recording. Featuring 16 built-in PoE ports for plug-and-play camera installation, this NVR simplifies deployment while delivering advanced AI-powered security functions.
Powered by Hikvision AcuSense technology, it supports facial recognition, perimeter protection, Motion Detection 2.0, and human/vehicle classification to significantly reduce false alarms and manual monitoring efforts. With up to 160 Mbps incoming bandwidth and decoding support up to 12MP resolution, it ensures crystal-clear video recording and smooth playback.
The unit supports dual SATA interfaces (up to 16TB per HDD), HDMI 4K output, VGA output, and independent video output modes. Designed in a compact 1U chassis, it is ideal for retail stores, offices, warehouses, residential complexes, and commercial buildings.
Key Features
- 16 IP camera inputs with 16 integrated PoE ports
- 4K HDMI video output (3840 × 2160 @30Hz)
- H.265+/H.265/H.264+/H.264 compression
- 160 Mbps incoming & outgoing bandwidth
- Facial recognition & face picture comparison
- Perimeter protection with human & vehicle classification
- Motion Detection 2.0 for false alarm reduction
- 2 SATA interfaces (Up to 16TB per HDD)
- 4 Alarm inputs / 1 Alarm output
- 1U rackmount design
| Category | Specification |
|---|---|
| Model | DS-7616NXI-K2/16P |
| Video Input | 16 IP Channels |
| PoE Ports | 16 × RJ-45 (10/100 Mbps) |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Max Recording Resolution | 12MP |
| HDMI Output | 4K (3840×2160)/30Hz |
| VGA Output | 1080p/60Hz |
| Audio Output | 1-ch RCA |
| Two-Way Audio | 1-ch RCA |
| Synchronous Playback | 16-ch |
| Decoding (AI Off) | 2-ch@12MP / 3-ch@8MP / 6-ch@4MP / 12-ch@1080p |
| Decoding (AI On) | 1-ch@12MP / 2-ch@8MP / 4-ch@4MP / 8-ch@1080p |
| Facial Recognition | 1-ch, 8MP |
| Face Library Capacity | 16 libraries / 20,000 face images |
| Perimeter Protection | 2-ch by device / All channels by camera |
| Motion Detection 2.0 | All channels (Human & Vehicle Classification) |
| Remote Connections | Up to 128 users |
| Network Interface | 1 × Gigabit RJ-45 |
| Supported Protocols | TCP/IP, DHCP, IPv4/IPv6, ONVIF (S/G), HTTP, HTTPS, RTSP, etc. |
| SATA Interface | 2 SATA (Up to 16TB each) |
| USB Interface | 2 × USB 2.0 |
| Alarm In/Out | 4/1 |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Max PoE Power | ≤ 200 W |
| Consumption (No HDD, PoE Off) | ≤ 15 W |
| Operating Temperature | -10°C to 55°C |
| Working Humidity | 10%–90% |
| Certifications | CE, FCC, UL, RoHS, UKCA, BIS, WEEE, RCM, CB, KC |
