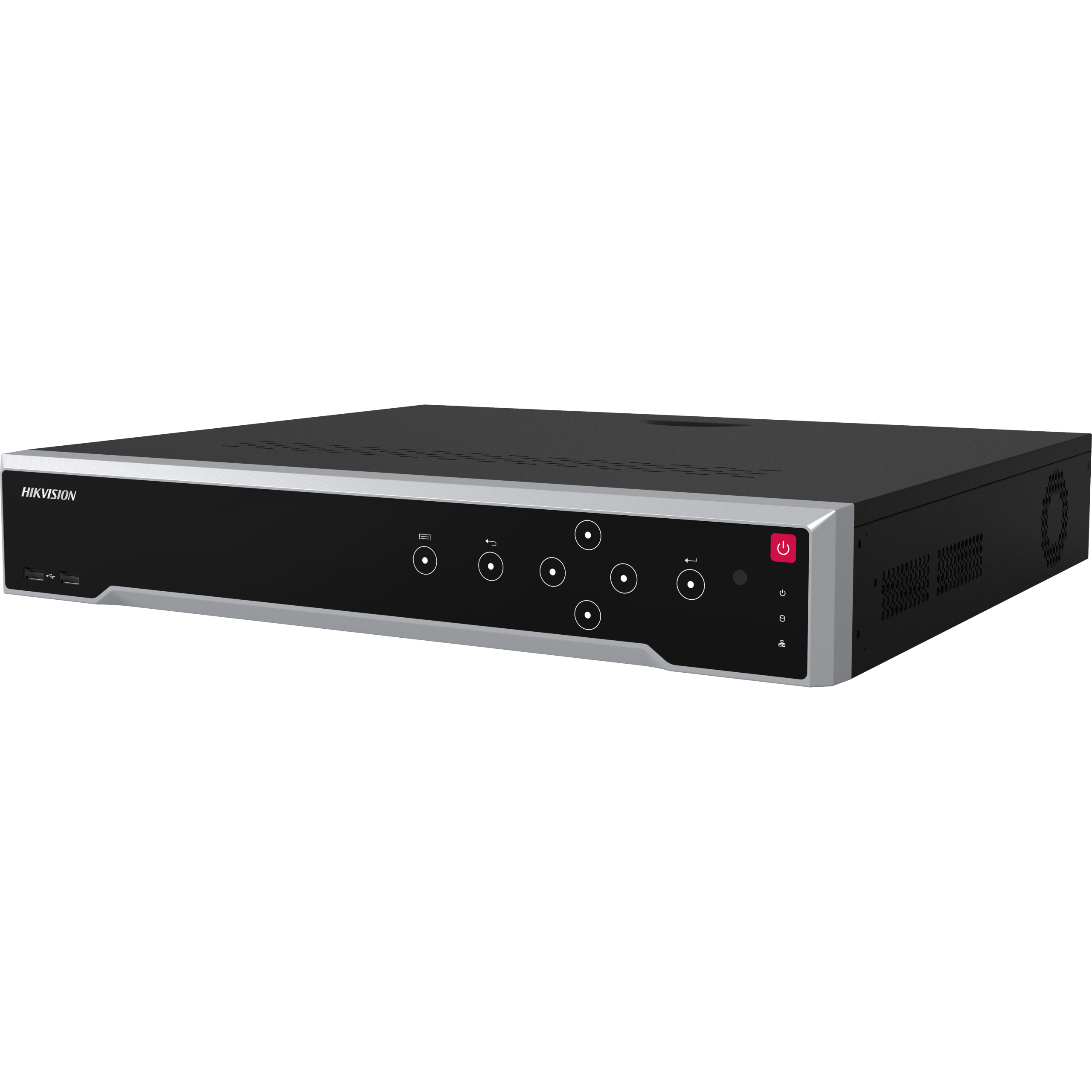

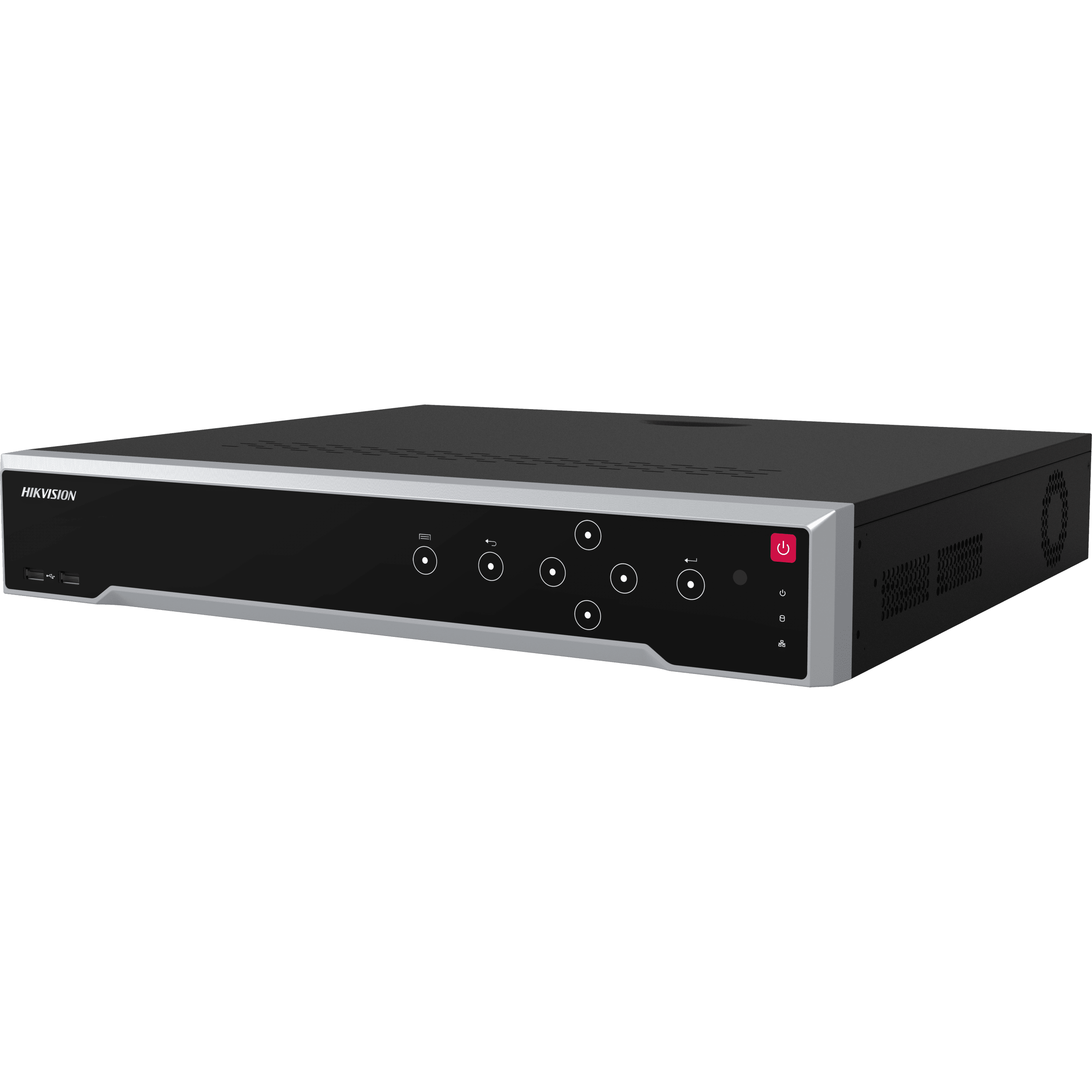

DS-7732NI-M4/16P 32-Channel 8K NVR with 16-Port PoE | High-Performance Network Video Recorder
Professional 32-channel 8K network video recorder with 16 PoE ports, H.265+ compression, and massive decoding capability. Supports up to 32 IP cameras and 320 Mbps incoming bandwidth—ideal for enterprise-grade surveillance with ultra-high resolution performance.
$775.00
Description
The DS-7732NI-M4/16P is a powerful 32-channel network video recorder (NVR) designed for advanced security installations. Supporting up to 8K video decoding and 16 PoE ports, it simplifies IP camera deployment while delivering exceptional recording and playback performance. With H.265+/H.265 compression, it optimizes storage without sacrificing image quality.
This NVR allows connection of up to 32 IP cameras and supports decoding of high-resolution streams, making it suitable for large-scale surveillance projects. The dual HDMI outputs—including 8K support—enable flexible multi-display setups for monitoring and control. It also supports up to 16 simultaneous playback channels and 128 remote connections for seamless remote management.
Built for reliability, the DS-7732NI-M4/16P includes four SATA interfaces (up to 16TB per disk) for extensive storage and supports multiple network protocols for integration with modern security ecosystems. Its 19-inch rack-mountable 1.5U chassis ensures easy installation in professional environments.
| Weight | 11.02 lbs |
|---|---|
| Dimensions | 44.5 × 40 × 7.5 cm |
| Feature | Details |
|---|---|
| Model | DS-7732NI-M4/16P |
| Channels | 32 IP camera inputs |
| PoE Ports | 16 RJ-45 PoE ports (IEEE 802.3 af/at) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Decoding Capacity | Up to 32-ch @1080p |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI Output 1 | 8K (7680×4320) @30Hz, 4K @60Hz/30Hz |
| HDMI Output 2 | 4K @60Hz/30Hz |
| VGA Output | 1920×1080 @60Hz |
| Storage | 4 SATA interfaces (up to 16TB per disk) |
| Synchronous Playback | 16 channels |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps |
| Remote Connections | Up to 128 |
| Alarm Inputs/Outputs | 16 inputs / 9 outputs |
| USB Ports | 2 × USB 2.0 (front), 1 × USB 3.0 (rear) |
| Power Supply | 100–240 VAC |
| Power Consumption | ≤15W (without HDD, PoE off) |
| Operating Temperature | -10°C to 55°C |
| Dimensions | 445 × 400 × 75 mm (1.5U chassis) |
| Weight | ≤5 kg (without HDD) |
| Certifications | FCC Part 15, CE compliance |
| Supported Protocols | TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, ONVIF |
| Audio Support | Two-way audio, G.711/AAC codecs |
| Decoding Formats | H.265+, H.264+, H.265, H.264 |
