This is a 2MP IP based turret camera which has a maximum resolution of 1080p at 30 fps NTSC. It has IP67 rated housing for external use, 2.8mm fixed lens which delivers a 106° horizontal field of view and offers 100 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.

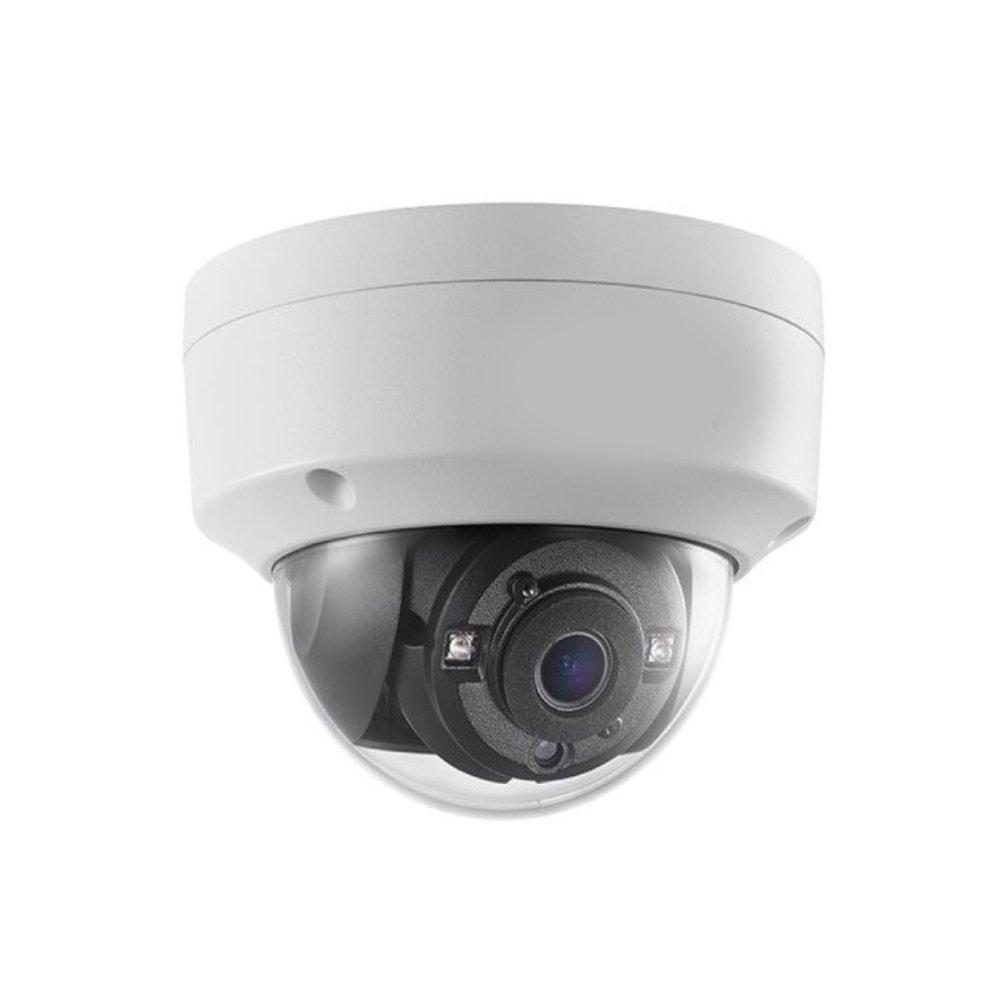

This 2MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 106° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
2 Megapixel high-performance CMOS
Analog HD output, up to 1080p resolution
EXIR 2.0 up to 100 ft (30 m) IR Range
Multiprotocol Output: TVI/AHD/CVI/CVBS
IP67 outdoor rated
120dB True WDR, 3D DNR
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
2 MP CMOS image sensor
1920 (H) x 1080 (V)
Color: 0.005 lux @ (f/1.2, AGC on), 0 lux with IR
1/30 s to 1/50,000s
Horizontal Field of View
Day & Night
IR cut filter
Pan: 0° to 340°, tilt: 0° to 75°, rotate: 0° to 360°
WDR (Wide Dynamic Range)
Day and Night Mode
Smart/color/BW(Black and White)
Level 1 to 9
Brightness, sharpness, 3D DNR, mirror, smart IR
1 HD analog output
-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
12 VDC ± 20%
Max. 4.6 W
Up to 100 ft (30 m)

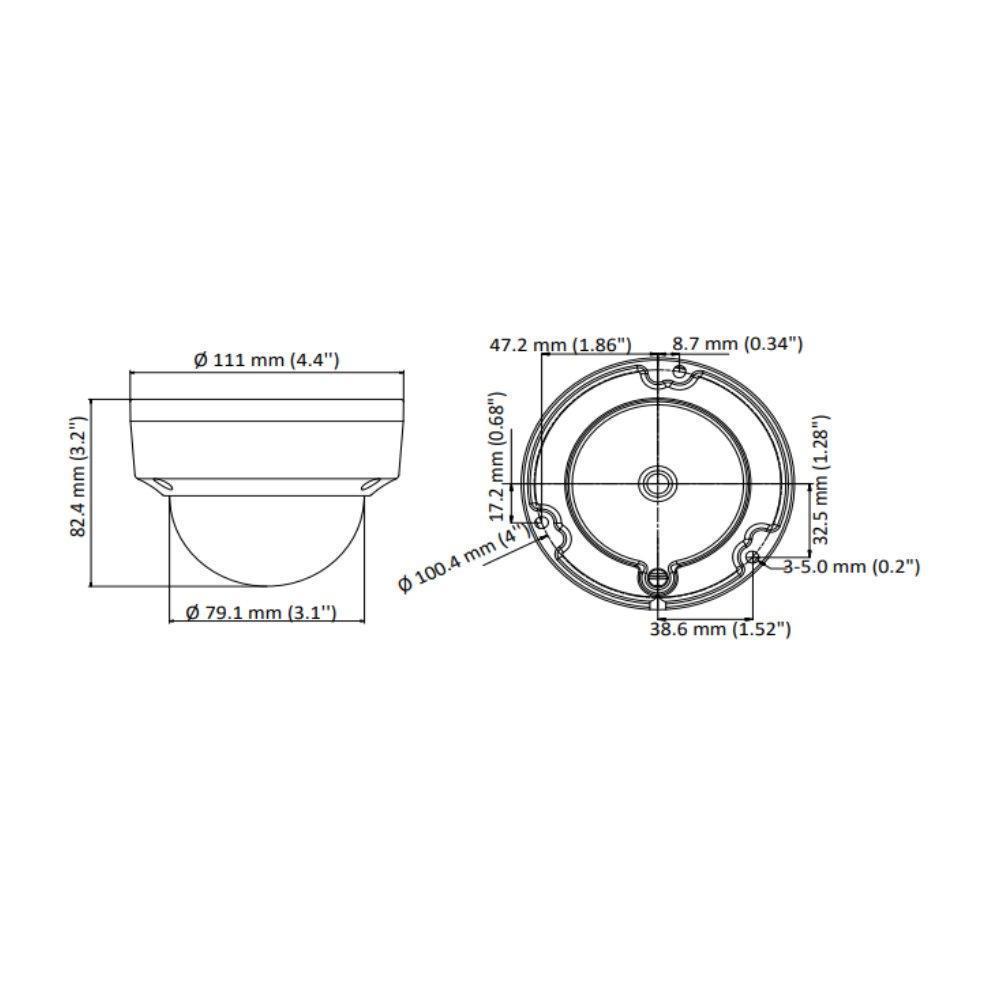

Φ111 × 82.4(Φ4.37” × 3.24”)
Approximately 1.07 lbs (487 g)
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
