2MP Turret TVI Camera – Fixed Lens – Ultra Lowlight IR with 130ft Range – Outdoor IP67 Rated
This is a 2MP IP based turret camera which has a maximum resolution of 1080p at 30 fps NTSC or 1080p at 25 fps PAL.It has IP67 rated housing for external use, 2.8mm and 6mm fixed lens which delivers a 103° and 54.4° horizontal field of view and offers 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Description
This 2MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm and 6mm fixed lens which delivers a 103° and 54.4° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
- 2M Smart FSI CMOS Sensor
- EXIR
- 60m IR
- Outdoor EXIR Turret
- ICR
- 0.003 Lux/F1.2
- 12 VDC
- Smart IR
- 3D DNR
- OSD Menu(Up the Coax)
- 130dB True WDR
- IP67
- 2.8mm, 6mm Lens
Application
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 2.0 MP progressive scan CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps |
| Resolution | 1920 (H) x 1080 (V) |
| Minimum Illumination | Color: 0.005 lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Maximum 16 times |
| Lens | 2.8 mm fixed focal lens 6 mm fixed focal lens |
| Horizontal Field of View | 103.5° 54.4° |
| Lens Mount | M12 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt:0° to 75°, rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | > 120 dB |
|
Menu
|
|
| AGC | Supported |
| Day and Night Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MANUAL |
| Privacy Mask | ON/OFF, 4 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| Backlight Compensation | WDR/BLC/HLC/OFF |
| 3D DNR (Digital Noise Reduction) | Level 1 to 10 |
| Language | English |
| Functions | Brightness, sharpness, mirror, Smart IR |
|
Interface
|
|
| Video Output | 1 HD analog output |
|
General
|
|
| Operating Conditions | -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Maximum 3.6 W |
| Ingress Protection | IP67 |
| Material | Plastic |
| IR Range | Up to 130 ft (40 m) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |

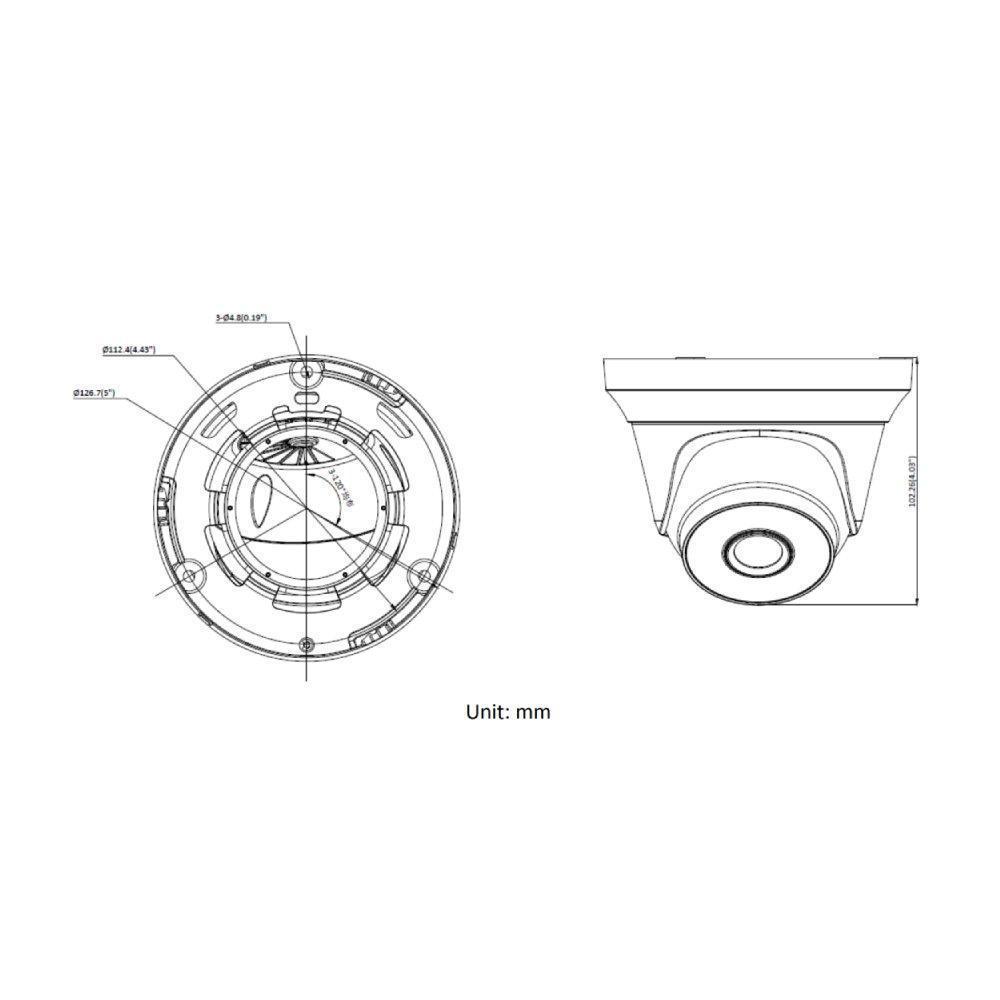

| Dimensions | ⌀ 4.33″ x 3.67″ (⌀ 110 mm x 93.2 mm) |
| Weight | Approximately 0.77 lbs (350 g) |
