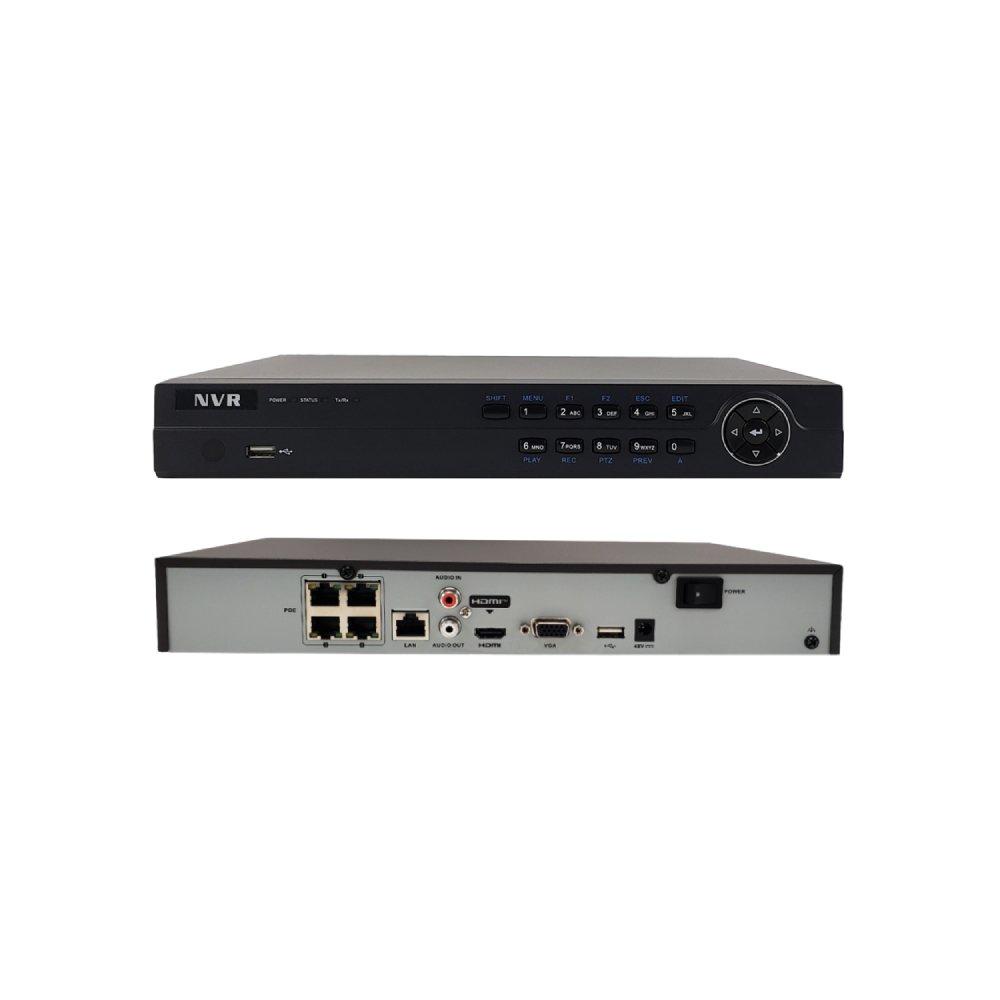

4-Channel Embedded Plug & Play NVR – 4K Resolution – Integrated PoE – 1U
This 4 channel NVR is a network video recorder that can support up to 8MP IP cameras. It has 4 built in plug & play PoE ports to make set up simple and easy. With a space for one hard drive with capacity up to 6TB and can support H.265/H.264/MPEG4 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.
Description
DVR Features:
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160) resolution
- 4-ch network cameras can be connected with 40M incoming bandwidth
- Support dual-os to ensure high reliablility of system running
- Plug & Play with up to 4 independent PoE network interfaces
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
HDD Features:
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras.
NVR Specifications
| Video/Audio Input and Output | |
|---|---|
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1㏀) |
| IP video input | 4-ch |
| HDMI Output | 1-ch, resolution:4K (3840 x 2160)/30Hz,1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 1-ch, RCA (Linear, 1㏀) |
| VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Network | |
| Network Interface | 1 RJ-45 10 / 100 Mbps self adaptive Ethernet interface |
| POE Interface | 4 independent 10 /100 Mbps PoE Ethernet interfaces |
| Incoming bandwidth | 40Mbps |
| Outgoing bandwidth | 80Mbps |
| Decoding | |
| Capability | 4-ch@1080P |
| Live view / Playback | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF80Mbps |
| Hard Disk and External Interface | |
| SATA | 1 SATA interface for 1 HDD |
| Capacity | Up to 6TB capacity for each HDD |
| USB Interface | 2 x USB2.0 |
| General | |
| Power Supply | 48 VDC |
| Consumption(without hard disk and POE) | ≤ 10 W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 315 mm chassis |
| Dimensions | 315 x 240 x 48 mm (12.4″ x 9.4″ x 1.9″) |
| Weight(without HDD)Communication | ≤ 1 kg (2.2 lb) |
HDD Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Form Factor | 3.5 inch | |||
| Dimensions | ∅ 5.7″ x 4.0″ x 1.0″ (∅ 147 x 102 x 26mm) | |||
| Operating Temperature | 0°C to 65°C | |||
| Non-Operating Temperature | -40°C to 70°C | |||
| Performance | ||||
| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) |
| Cache | 64MB | |||
| Data Transfer Rate | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 110 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 145 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 150 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 175 MB/s |
| Hard Disk Interface | SATA | |||
| Rotational Speed (RPM) | IntelliPowerTM | |||
| Load/Unload Cycles | 300,000 | |||
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | |||
| Power Management | ||||
| Average Power Requirements | Read/Write – 3.3W Idle – 2.9W Standby and Sleep – 0.4W | Read/Write – 4.4W Idle – 4.1W Standby and Sleep – 0.4W | Read/Write – 5.1W Idle – 4.5W Standby and Sleep – 0.4W | Read/Write – 5.3W Idle – 4.9W Standby and Sleep – 0.4W |
Dowmloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
