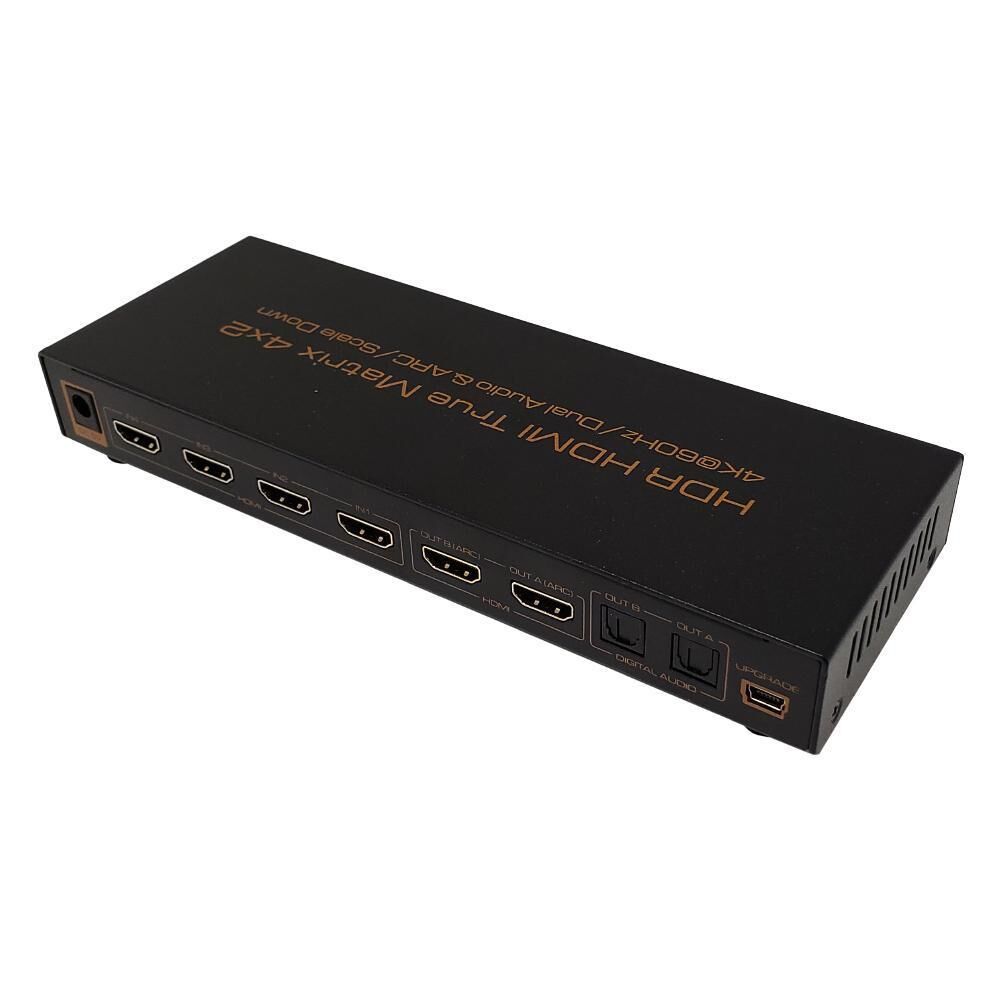

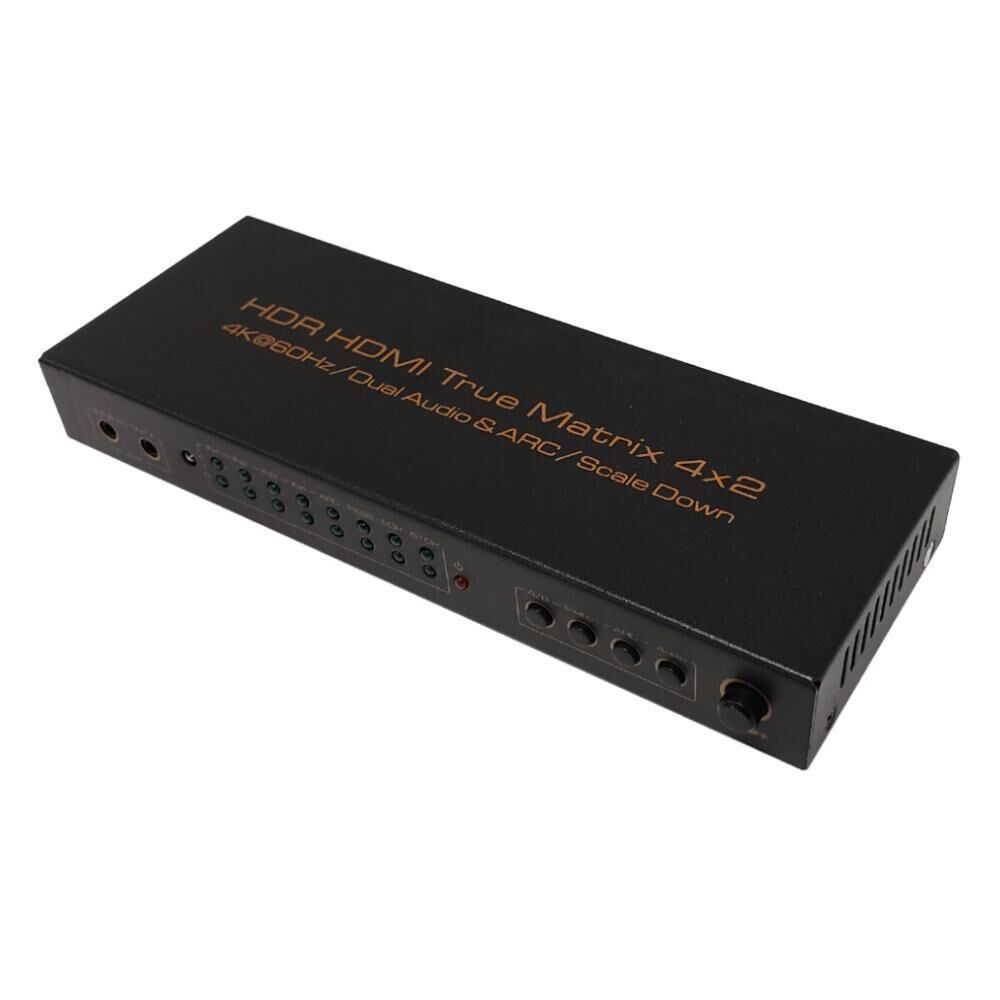

4×2 HDMI 4K Matrix – 4K*2K@60Hz – HDMI 2.0v – YUV 4:4:4 – IR Control
This 4×2 HDMI matrix switch enables you to connect up to four HDMI sources to up to two HDMI displays. Any one of the four inputs can be displayed on any one of the two outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Description
This 4×2 HDMI matrix switch enables you to connect up to four HDMI sources to up to two HDMI displays. Any one of the four inputs can be displayed on any one of the two outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 205 x 75 x 30mm |
| Operating Temperature | -5° ~ 40°C |
| Operating Humidity Range | 5 to 85% RH (No condensation) |
| Storage Temperature | -15° ~ 55°C |
| Storage Humidity | 5 ~ 95% RH (No condensation) |
|
Power
|
|

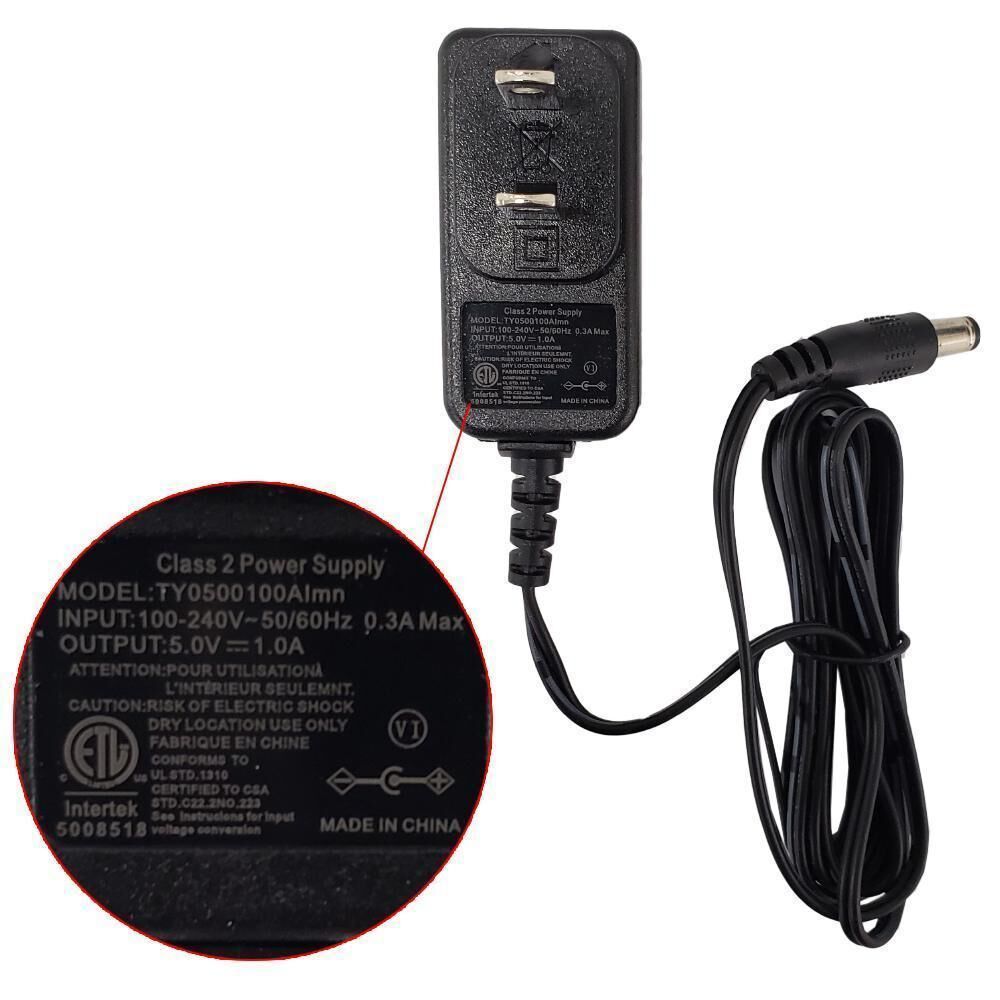

| Power Adapter | Input: AC 100~240V Output: DC 5V/1A |
| Max Working Current | 500mA |
|
Connector(s)
|
|
| Input | 4 x HDMI Female |
| Output | 2 x HDMI Female, 2 x Optical, x 2 AUX |
|
Performance
|
|
| Video | 480i / 480p / 576i / 720p / 1080i / 1080p / 2160p (Supports HDR/Dolby Vision) |
| Deep Color | 8/10/12Bit @ 480p / 720p / 1080p 8Bit @ 2160p |
| Audio | Dolby HD / DTS HD / Dolby Atoms / Dolby AC3 / DTS / LPCM |
| Transmission | Bandwidth 25~600MHz |
| Transmission Rate | 0.75 ~ 18Gbps |
| HDMI Version | HDMI 2.0v |
| Analog Output Level | 2V RMS (1kHz@0dB) |
|
Approvals
|
|
| Power Adapter | c(ETL)us |
|
Environmental
|
|
| RoHS | Yes |
|
Certification(s)
|
|
| CE | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.97 lbs [0.44 kg] |
|
Contents
|
|

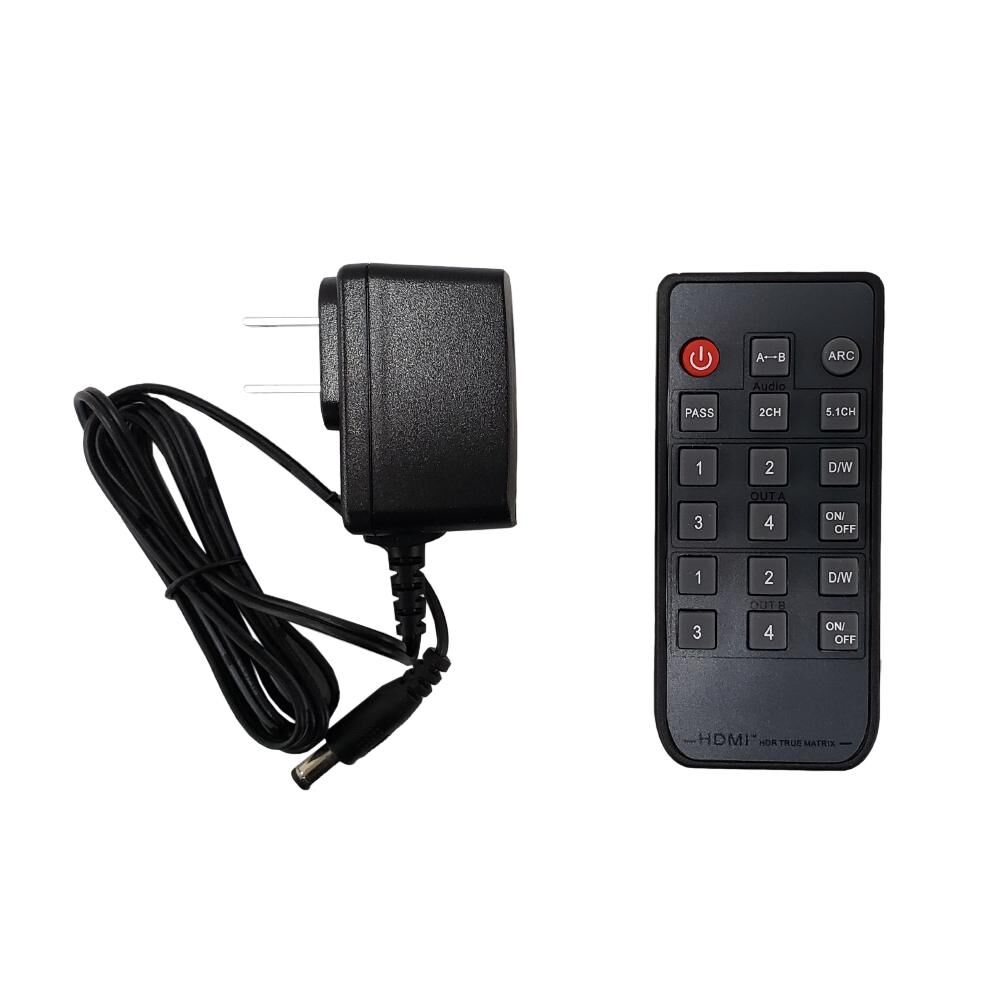

| Included in Package | 1 – HDMI Matrix |
| 1 – Power Adapter | |
| 1 – Remote Control | |
| 1 – User Manual | |
