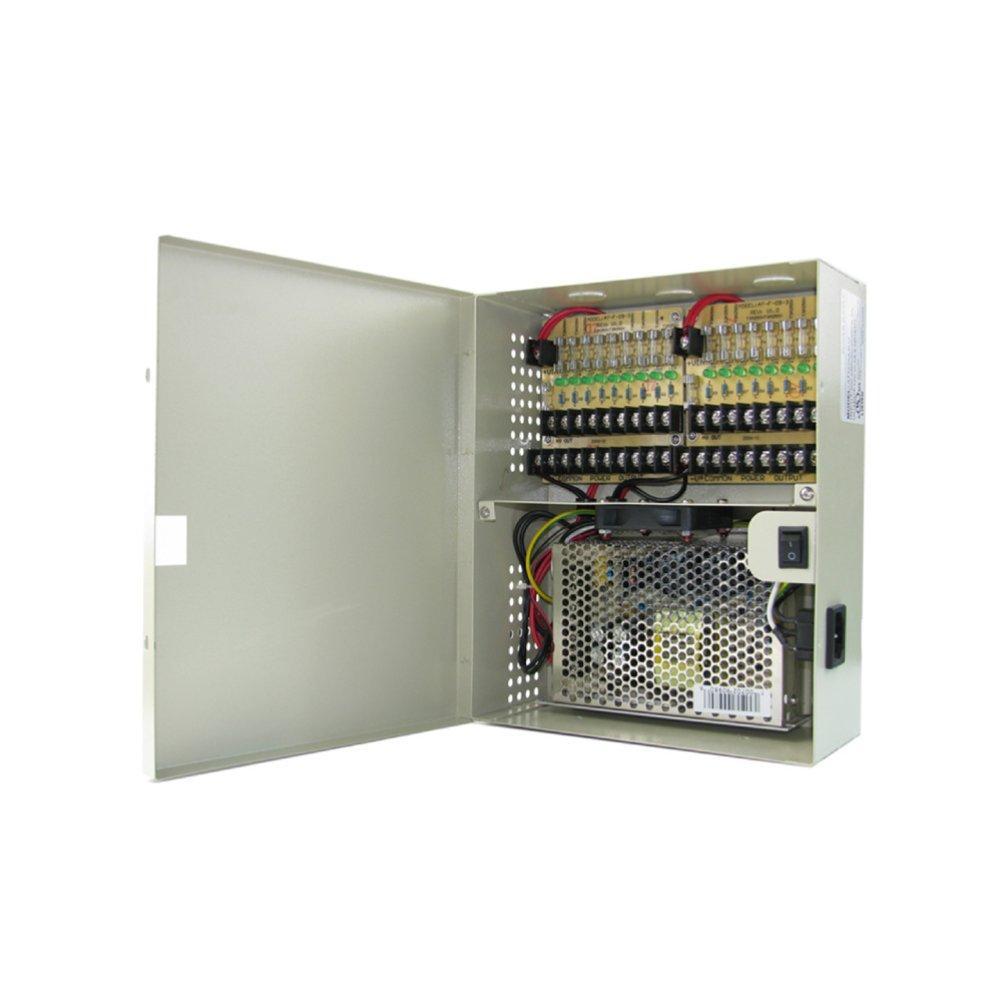

DC Power Supply 18CH – Input 120V ~ 240V – Output 12V 18A – c(UL)us
This power supply has an input voltage of 100V to 240V AC with an auto switch function. It also has an output voltage of 12V DC /- 5%. Its total output current is 18A with a total of 18 channels. It features thermal cutoffs protection – each output has an independent PTC fuse and LED indicator so that other outputs function if one output has an issue. It also has short circuit protection, high voltage protection and over current protection. Typical applications for this power supply include using it with CCTV cameras, IP cameras, PTZ, IR illuminators, DVRs and access control.
Description
This power supply has an input voltage of 100V to 240V AC with an auto switch function. It also has an output voltage of 12V DC /- 5%. Its total output current is 18A with a total of 18 channels. It features thermal cutoffs protection – each output has an independent PTC fuse and LED indicator so that other outputs function if one output has an issue. It also has short circuit protection, high voltage protection and over current protection. Typical applications for this power supply include using it with CCTV cameras, IP cameras, PTZ, IR illuminators, DVRs and access control.
Specifications
|
Performance
|
|
|---|---|
| Input Voltage | 100V to 240V AC |
| Output Voltage | 12V DC +/- 5% |
| Output Current | 18A |
| Channels | 18 |
| Fuse Type | PTC (Resettable) |
| Fuse Rating | 2A |
| Short Circuit Protection | Yes |
| High Voltage Protection | Yes |
| Over Current Protection | Yes |
|
Approvals
|
|
| CE | Yes |
| FCC | Yes |
| c(UL)us | Yes |
|
Environmental
|
|
| RoHS | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 6.5 lbs |
