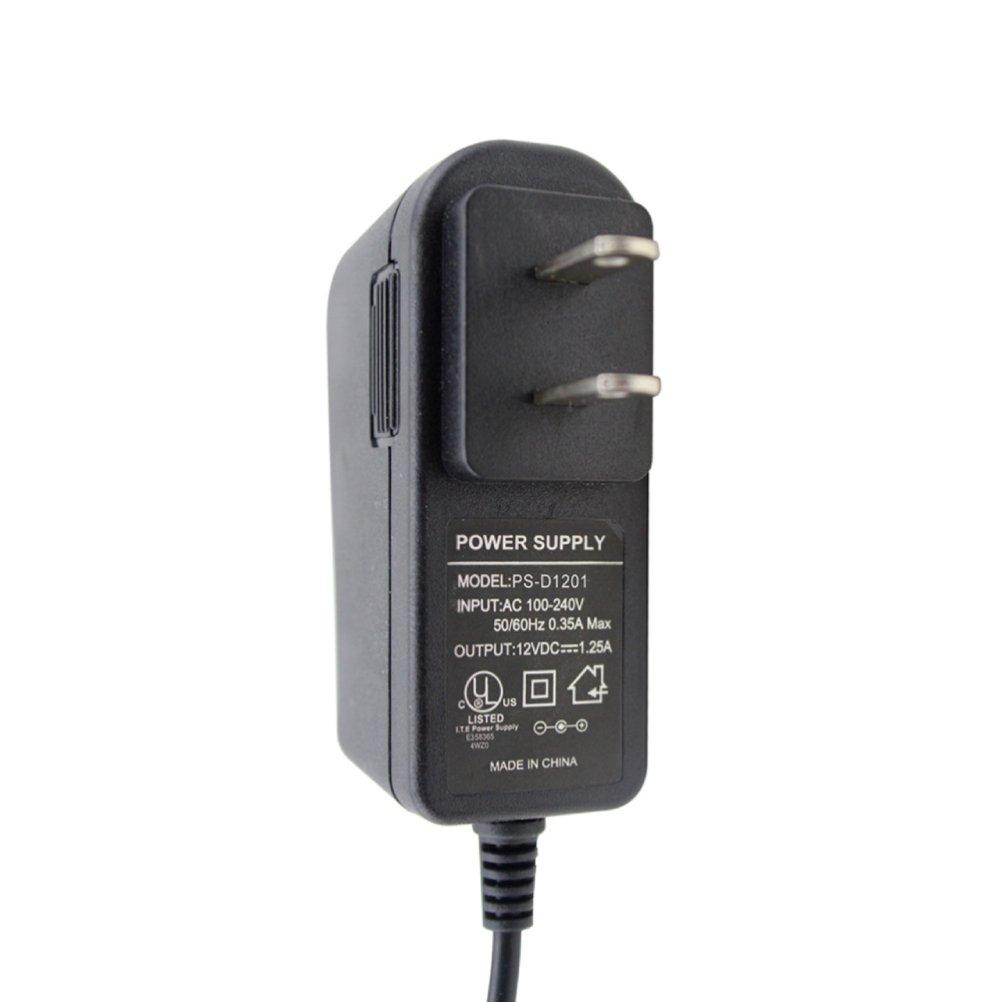

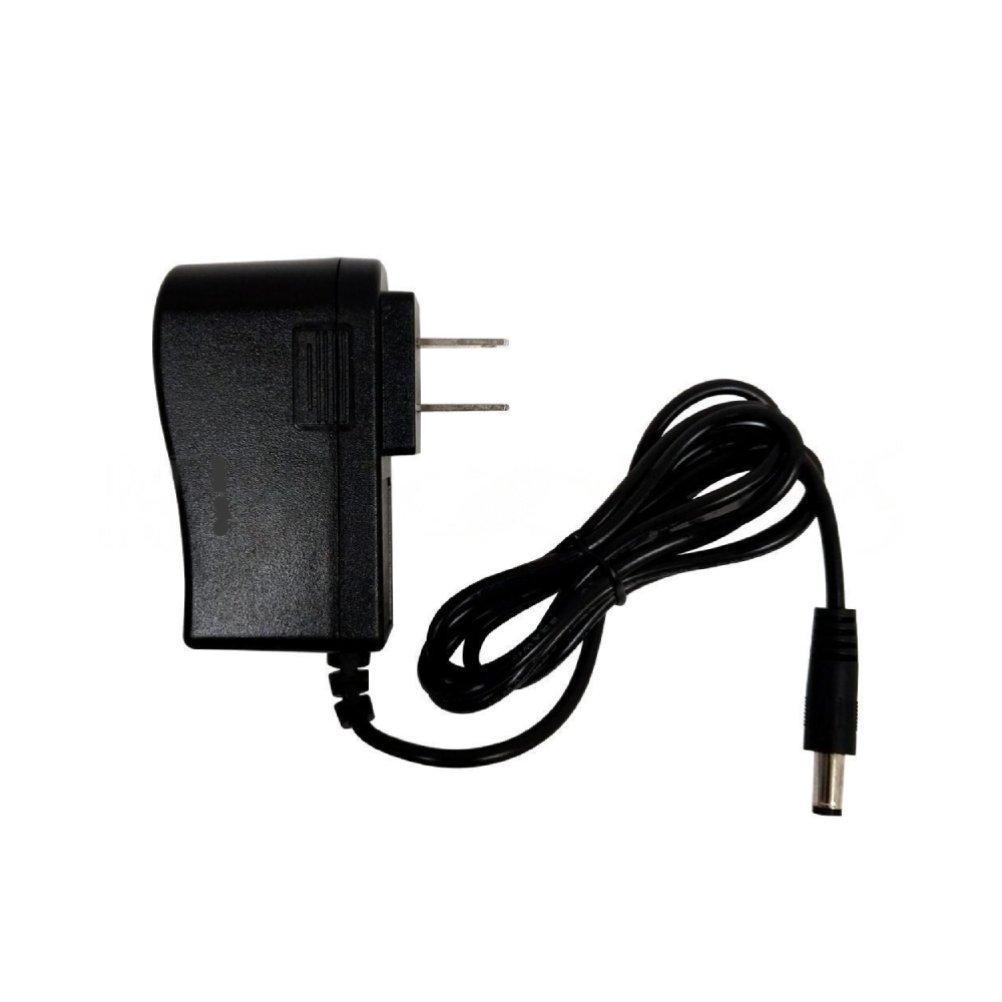

DC Power Supply – Input 120V ~ 240V – Output 12V 1A – c(UL)us
This power supply has an input voltage of 100V to 240V AC and an output voltage of 12V DC. Its input current is 350mA and its output current is 1A. It has surge protection, over load protection and short circuit protection in which the output is shut down and automatically restarted.
$7.99
Description
This power supply has an input voltage of 100V to 240V AC and an output voltage of 12V DC. Its input current is 350mA and its output current is 1A. It has surge protection, over load protection and short circuit protection in which the output is shut down and automatically restarted.
Specifications
| Cable Length | 4ft [1.2m] |
|
Performance
|
|
| Input Voltage | 100V to 240V AC |
| Input Current | 350mA RMS Maximum |
| Output Voltage | 12V DC |
| Output Current | 1A |
| Frequency Rated | 50-60Hz |
| Efficiency | 82% Minimum |
| Leakage Current | 0.25mA |
| Over Voltage Protection | 15 |
| Ripple | 50Mv |
| Load Regulation | A± 5% |
| Short Circuit Protection | Yes |
| Surge Protection | Yes |
| Over Load Protection | Yes |
|
Connectors
|
|
| DC Connector | 2.1mm x 5.5mm |
|
Approvals
|
|
| c(UL)us | Yes |
|
Environmental
|
|
| RoHS | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.5 lbs |
