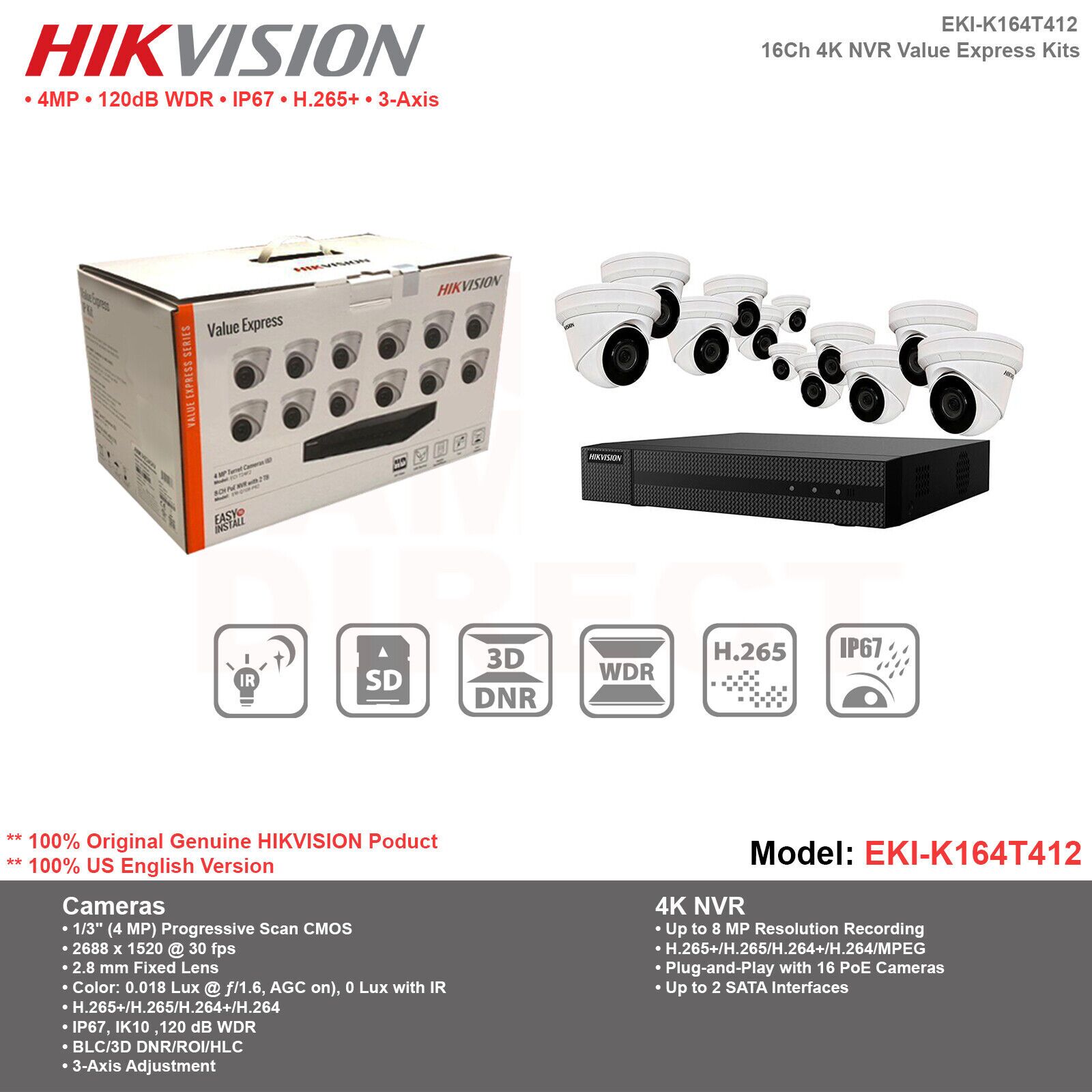

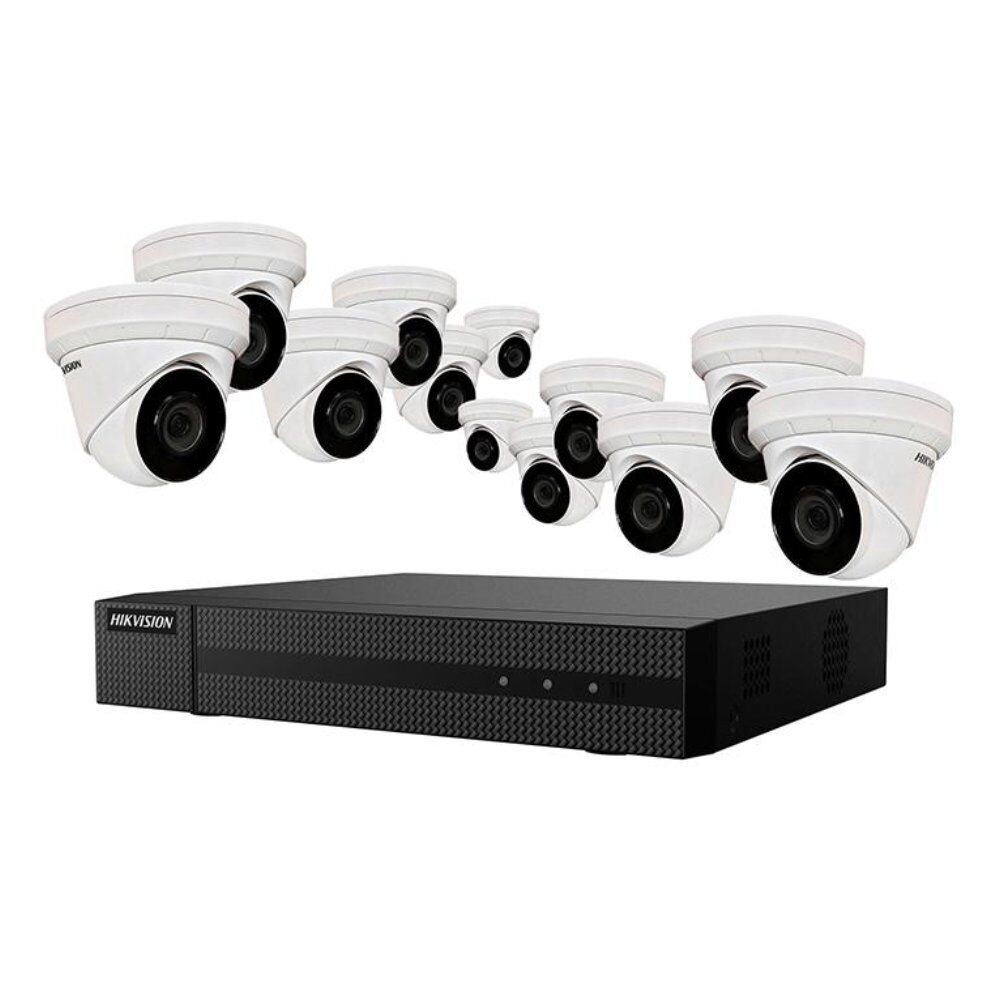

Hikvision EKI-K164T412 | 4K Value Express Kits
Monitor your property with the EKI-K164T412 16-Channel 8MP NVR with 4TB HDD & 12 4MP Night Vision Turret Cameras Kit from Hikvision. This NVR enables you to record from and manage up to 16 cameras. It is equipped with two SATA ports that support an HDD capacity up to 12TB (4TB preinstalled). H.265 , H.265, H.264 , H.264, and MPEG-4 video codecs keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
$1,729.99
Description
Hikvision EKI-KxxxT4xx Series 4K Value Express Kits are a cost-effective solution for value-oriented users. Each kit is supplied with four, six, or twelve network cameras with 4 MP image sensors, and 4-, 8-, or 16-channel NVRs in the same box.
- Up to 8 MP Resolution Recording
- 2560 x 1440 (4 MP) Resolution
- 2.8 mm Fixed Lens
- H.265 /H.265/H.264 /H.264/MPEG
- Plug-and-Play
- EXIR 2.0 with 100 ft (30 m) IR Range
- Up to 2 SATA Interfaces
Cameras
- 1/3″ (4 MP) Progressive Scan CMOS
- 2560 x 1440 (4 MP) Resolution
- 2.8 mm Fixed Lens
- EXIR 2.0 with 100 ft (30 m) IR Range
- H.265 /H.265/H.264 /H.264/MJPEG
- IP67 Protection
- Durable Metal Housing
- 120 dB WDR for Clear Images
NVR
- Up to 8 MP Resolution Recording
- H.265 /H.265/H.264 /H.264/MPEG
- Plug-and-Play with 4, 8, or 16 PoE Cameras
- Up to 2 SATA Interfaces
| Number of Channels | 16 |
| Resolution | Up to 8 MP |
| Two-Way Audio | 1-Channel, RCA (2 V p-p, 1 Kilohm) |
| Bandwidth | Incoming: 160 Mb/s Outgoing: 80 Mb/s |
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| VGA Output Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Audio Output | 1-Channel, RCA (Linear, 1 Kilohm) |
| Decoding Formats | H.265+, H.265, H.264+, H.264, MPEG-4 |
| Playback Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 16 Channels |
| Decoding Capability | 1 Channel at 8 MP 4 Channels at 1080p |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| SATA | 2 x SATA Interface |
| Drive Bays | 2 |
| HDD Capacity | 6 TB per HDD |
| HDD Included | 4 TB |
| Network Interface | 1 x RJ45 1000M Self-Adaptive Ethernet Port |
| USB | 2 x USB 2.0 |
| PoE Interface | 16 x 100M RJ45 Self-Adaptive Ethernet Ports |
| PoE Power | ≤150 W |
| PoE Standard | IEEE 802.3af/at |
| Power Supply | 100 to 240 VAC |
| Power | <280 W |
| Power Consumption | ≤15 W (Without HDD) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Rack Units | 1 RU |
| Dimensions | 15.2 x 12.4 x 2″ / 385 x 315 x 52 mm |
| Weight | 5.7 lb / ≤2.7 kg (Without HDD) |
Camera
| Image Sensor | 1/3″, 4 MP Progressive Scan CMOS |
| Minimum Illumination | Color: 0.03 Lux (f/2.0 with AGC) B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Slow Shutter | Yes |
| Day/Night | IR Cut Filter |
| Digital Noise Reduction | 3D-DNR |
| WDR | Digital Wide Dynamic Range |
| 3-Axis Adjustment | Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360° |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Aperture | f/2.0 |
| Field of View | Horizontal: 100° Vertical: 55° Diagonal: 117° |
| IR Range | 65′ / 19.81 m |
| IR Wavelength | 850 nm |
| Video Compression | Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265+, H.265, H.264+, H.264, MPEG-4 |
| H.264 Profile | Main, Baseline, High Main Stream: H.264+ |
| Video Bit Rate | 32 Kb/s to 8 Mb/s |
| Region of Interest | One Fixed Region for Main Stream and Sub-Stream |
| Maximum Resolution | 2560 x 1440 |
| Frame Rate | Main Stream: 20 fps at 2560 x 1440, 30 fps at 2304 x 1296, 1920 x 1080, 1280 x 720 Sub-Stream: 30 fps at 640 x 480, 640 x 360, 320 x 240 |
| Image Enhancement | BLC, 3D-DNR |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, AGC, White Balance |
| Day/Night Switching | Auto, Scheduled |
| Network Storage | Supports NAS (NFS, SMB/CIFS) |
| Alarm Triggers | Motion Detection, Video Tampering Alarm, Illegal Login |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| General Functions | Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark |
| API | ONVIF Profiles G & S, ISAPI |
| Simultaneous Live View | Up to 6 Channels |
| User/Host Level | Up to 32 Users at 3 Host Levels (Admin, Operator, User) |
| Client | iVMS-4200, Hik-Connect |
| Supported Web Browsers | Internet Explorer 8 or Higher, Chrome 31-44, Firefox 30.0-51, Safari 8.0 or Higher |
| Communication Interface | 1 x RJ45 100M Self-Adaptive Ethernet Port |
| Operating Temperature | -22 to 122°F / -30 to 50°C |
| Operating Temperature | 0 to 95% (Non-Condensing) |
| Power Supply | 12 VDC ≤25%, PoE (802.3af, Class 3) |
| Power Consumption and Current Draw | 12 VDC, 0.4 A, 5 W Maximum PoE: (802.3af, 36 to 57 V), 0.2 to 0.1 A, 6.5 W Maximum |
| IP Rating | IP67 |
| Material of Construction | Metal and Plastic |
| Dimensions | 4.3 x 3.7″ / 110 x 93.2 mm |
| Weight | 0.8 lb / 360 g |
