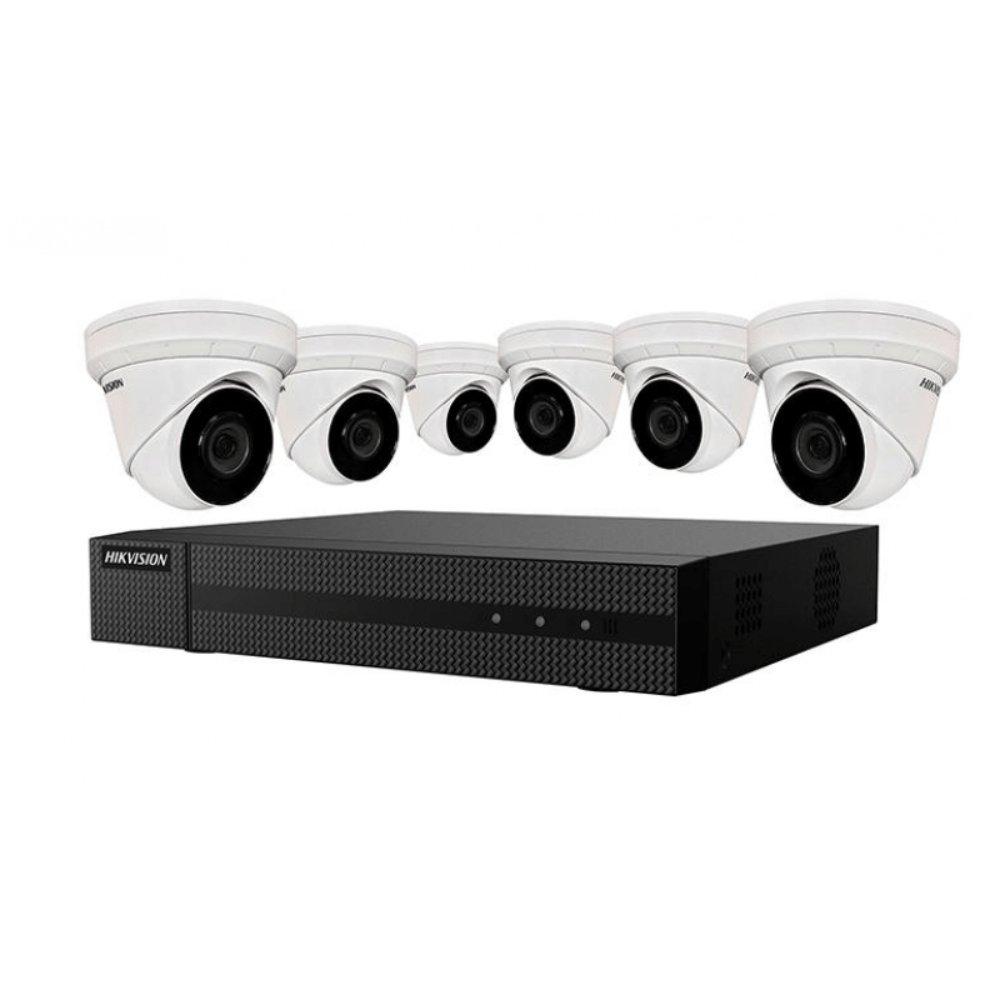

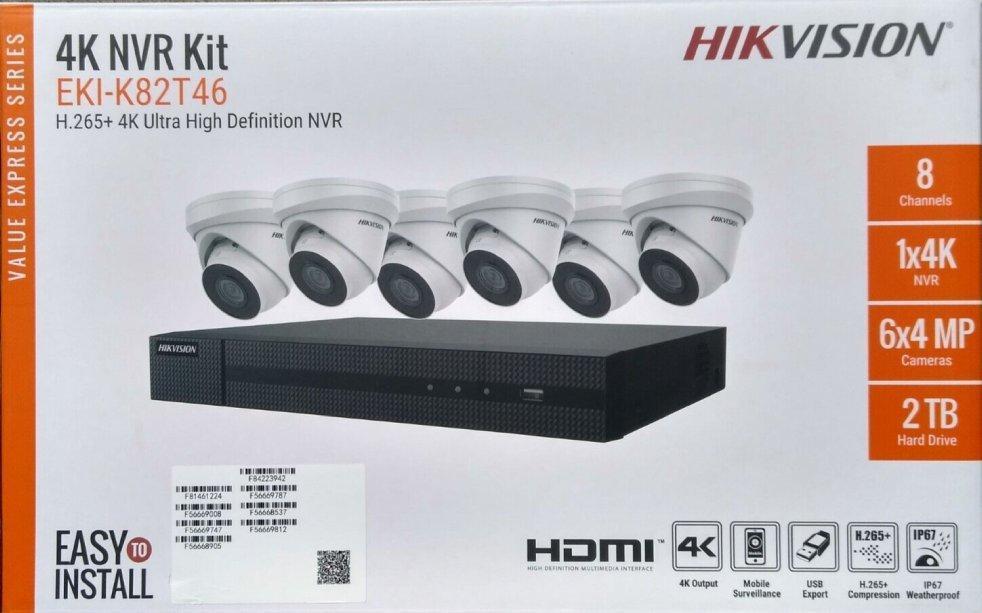

Hikvision IP Security Camera Kit 8 Channel 4K NVR with 6 x 4MP Turret Cameras
Hikvision EKI-KxxxT4xx Series 4K Value Express Kits are a cost-effective solution for value-oriented users. Each kit is supplied with four, six, or twelve network cameras with 4 MP image sensors, and 4-, 8-, or 16-channel NVRs in the same box.
Description
Monitor your property with the EKI-K82T46 8-Channel 8MP NVR with 2TB HDD & 6 4MP Night Vision Turret Cameras Kit from Hikvision. This NVR enables you to record from and manage up to 8 cameras. It is equipped with a SATA port that supports an HDD up to 6TB (2TB preinstalled). H.265 , H.265, H.264 , H.264, and MPEG-4 video codecs keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
The included turret cameras capture 2560 x 1440 resolution video at 20 fps from a 2.8mm fixed lens that delivers a 100° horizontal field of view. The cameras have a night vision range up to 65′. They are rated IP67 for outdoor use.
NVR Features
- Plug-and-play operation
- H.265 , H.265, H.264 , H.264, and MPEG-4 video codecs
- Recording resolution up to 8MP
- HDMI and VGA output ports
- 8-channel synchronous playback
- 8 PoE ports
- 2 x USB 2.0 ports
Turret Camera Features
- IR cut filter enables day and night functionality
- H.265 , H.265, H.264 , H.264, and MJPEG video codecs
- Slow shutter support
- Camera pivots horizontally from 0 to 360° & vertically from 0 to 75°
- 0 to 360° rotation
- 3D-DNR
- Backlight compensation
- Image settings include saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- General functions include anti-flicker, heartbeat, mirror, password protection, privacy masking, and watermark
- ROI (region of interest) supports one fixed region for main stream and sub-stream
- Alarm triggers include motion detection, video tampering, and illegal login
- 100M self-adaptive Ethernet port
- Network-attached storage support
- Simultaneous live view for up to six channels
- Up to 32 users at 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer 8 or higher, Chrome 31-44, Firefox 30.0-51, Safari 8.0 or higher, iOS, Android, iVMS-4200, and Hik-Connect
NVR
| Number of Channels | 8 |
| Resolution | Up to 8 MP |
| Two-Way Audio | 1-Channel, RCA (2 V p-p, 1 Kilohm) |
| Bandwidth | Incoming: 80 Mb/s Outgoing: 80 Mb/s |
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| VGA Output Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Audio Output | 1-Channel, RCA (Linear, 1 Kilohm) |
| Decoding Formats | H.265+, H.265, H.264+, H.264, MPEG-4 |
| Playback Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 8 Channels |
| Decoding Capability | 1 Channel at 8 MP 4 Channels at 1080p |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| SATA | 1 x SATA Interface |
| Drive Bays | 1 |
| HDD Capacity | 6 TB |
| HDD Included | 2 TB |
| Network Interface | 1 x RJ45 1000M Self-Adaptive Ethernet Port |
| USB | 2 x USB 2.0 |
| PoE Interface | 8 x 100M RJ45 Self-Adaptive Ethernet Ports |
| PoE Power | ≤80 W |
| PoE Standard | IEEE 802.3af/at |
| Power Supply | 48 VDC |
| Power | <180 W |
| Power Consumption | ≤10 W (Without HDD & Enabling PoE) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Rack Units | 1 RU |
| Dimensions | 12.4 x 9.4 x 1.9″ / 315 x 240 x 48 mm |
| Weight | 2.2 lb / ≤1 kg (Without HDD) |
Camera
| Image Sensor | 1/3″, 4 MP Progressive Scan CMOS |
| Minimum Illumination | Color: 0.03 Lux (f/2.0 with AGC) B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Slow Shutter | Yes |
| Day/Night | IR Cut Filter |
| Digital Noise Reduction | 3D-DNR |
| WDR | Digital Wide Dynamic Range |
| 3-Axis Adjustment | Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360° |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Aperture | f/2.0 |
| Field of View | Horizontal: 100° Vertical: 55° Diagonal: 117° |
| IR Range | 65′ / 19.81 m |
| IR Wavelength | 850 nm |
| Video Compression | Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265+, H.265, H.264+, H.264, MPEG-4 |
| H.264 Profile | Main, Baseline, High
Main Stream: H.264+ |
| Video Bit Rate | 32 Kb/s to 8 Mb/s |
| Region of Interest | One Fixed Region for Main Stream and Sub-Stream |
| Maximum Resolution | 2560 x 1440 |
| Frame Rate | Main Stream: 20 fps at 2560 x 1440, 30 fps at 2304 x 1296, 1920 x 1080, 1280 x 720
Sub-Stream: 30 fps at 640 x 480, 640 x 360, 320 x 240 |
| Image Enhancement | BLC, 3D-DNR |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, AGC, White Balance |
| Day/Night Switching | Auto, Scheduled |
| Network Storage | Supports NAS (NFS, SMB/CIFS) |
| Alarm Triggers | Motion Detection, Video Tampering Alarm, Illegal Login |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour |
| General Functions | Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark |
| API | ONVIF Profiles G & S, ISAPI |
| Simultaneous Live View | Up to 6 Channels |
| User/Host Level | Up to 32 Users at 3 Host Levels (Admin, Operator, User) |
| Client | iVMS-4200, Hik-Connect |
| Supported Web Browsers | Internet Explorer 8 or Higher, Chrome 31-44, Firefox 30.0-51, Safari 8.0 or Higher |
| Communication Interface | 1 x RJ45 100M Self-Adaptive Ethernet Port |
| Operating Temperature | -22 to 122°F / -30 to 50°C |
| Operating Temperature | 0 to 95% (Non-Condensing) |
| Power Supply | 12 VDC ≤25%, PoE (802.3af, Class 3) |
| Power Consumption and Current Draw | 12 VDC, 0.4 A, 5 W Maximum PoE: (802.3af, 36 to 57 V), 0.2 to 0.1 A, 6.5 W Maximum |
| IP Rating | IP67 |
| Material of Construction | Metal and Plastic |
| Dimensions | 4.3 x 3.7″ / 110 x 93.2 mm |
| Weight | 0.8 lb / 360 g |
Packaging Info
| Package Weight | 17.695 lb |
| Box Dimensions (LxWxH) | 19.5 x 12.3 x 9.9″ |
