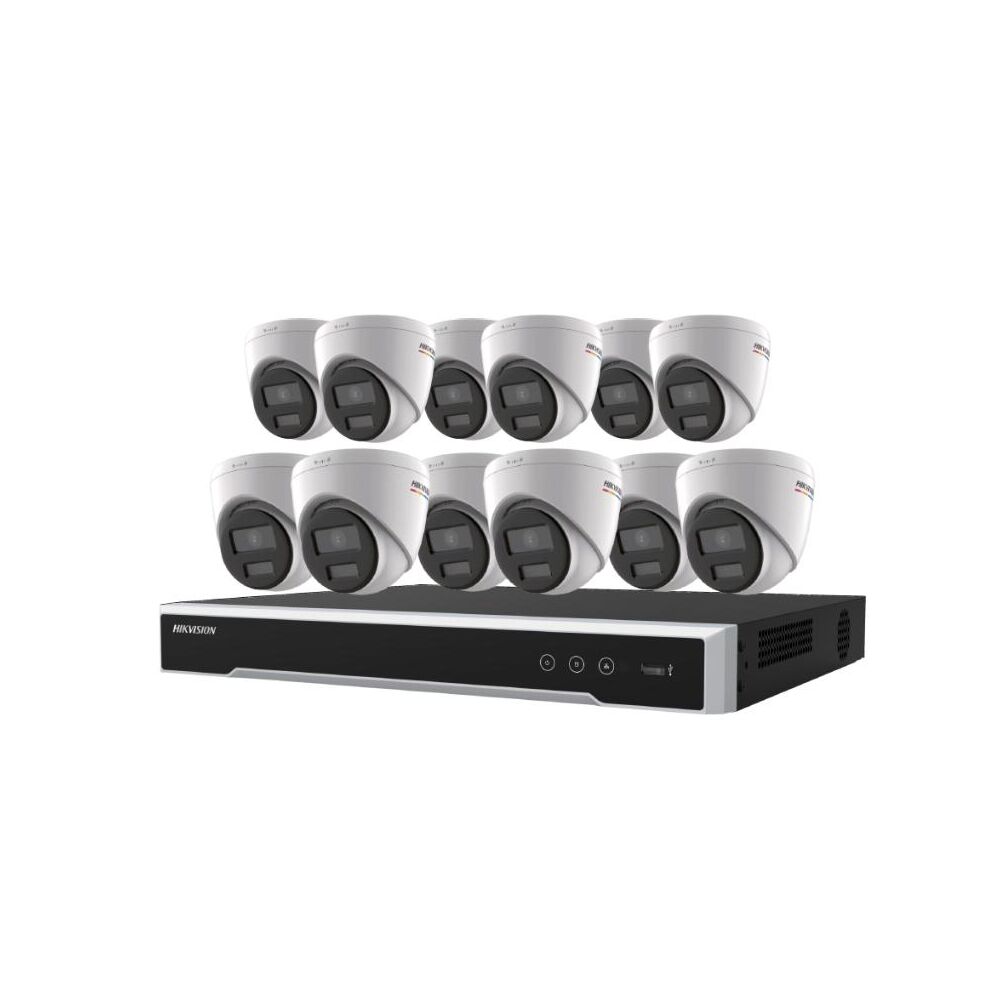

Hikvision EKI-K164T412C 13-Piece IP Kit with ColorVu, 4MP Turret Cameras (2.8mm), 16-Channel NVR (4TB)

Surveillance Kit SKU: EKI-K164T412C

Keep an eye on your property effortlessly with the EKI-K164T412C 16-Channel 8MP NVR featuring a 4TB HDD and a complete set of 12 ColorVu 4MP Night Vision Turret Cameras from Hikvision. This NVR allows you to efficiently record and manage footage from up to 16 cameras, boasting two SATA ports supporting HDD capacities of up to 12TB, with a preinstalled 4TB HDD for your convenience. The inclusion of H.265+, H.265, H.264+, and H.264 video codecs ensures optimal file size management without compromising video quality. Additionally, the NVR supports two-way audio communication.

Description

The ColorVu turret cameras included in this kit deliver high-quality 2560 x 1440 resolution video at 20 fps through a 2.8mm fixed lens, providing a wide 96° horizontal field of view. Equipped with a supplementary white light, these cameras offer up to 98′ of illumination, allowing them to capture full-color video in low-light conditions. Their outdoor usability is further enhanced by an IP67 rating.

Key NVR Features:

Easy plug-and-play operation
Support for H.265+, H.265, H.264+, and H.264 video codecs
Recording resolution capabilities up to 8MP
HDMI and VGA output ports for flexible display options
16-channel synchronous playback for comprehensive monitoring
16 Power over Ethernet (PoE) ports for simplified setup
Motion detection with human/vehicle analysis for enhanced security

Key Turret Camera Features:

Seamless day and night switching
Compatibility with H.265+, H.265, H.264+, H.264, and MJPEG video codecs
Built-in microphone for audio capture
Advanced features like backlight/highlight compensation and 3D-DNR
Customizable image settings, including rotate mode, saturation, brightness, contrast, sharpness, and white balance
ROI (region of interest) functionality supporting one fixed region for the main stream
Four programmable polygon privacy masks for added privacy
MicroSD/SDHC/SDXC card support up to 256GB (available separately)
Simultaneous live view for up to six channels
User-friendly compatibility with Internet Explorer 10 and 11 (plug-in required), Chrome 57 or higher, Firefox 52 or higher, iOS, Android, iVMS-4200, and Hik-Connect

Motion Detection	Human/Vehicle Analysis: 4 Channels
Channels	16
Bandwidth	Incoming: 160 Mb/s Outgoing: 80 Mb/s
HDMI Output Resolution	4096 x 2160 at 30 Hz, 3840 x 2160 at 30 Hz, 2560 x 1440 at 60 Hz, 1920 x 1080 at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz
VGA Output Resolution	1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz
Video Output	HDMI/VGA Simultaneous Output
Audio Output	1-Channel, RCA (Linear, 1 Kilohm)
Two-Way Audio	1-Channel, RCA (2 V p-p, 1 Kilohm)
Decoding Formats	H.265+, H.265, H.264+, H.264
Recording Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback	16 Channels
Decoding Capability	1 Channel at 8 MP (30 fps) 3 Channels at 4 MP (30 fps) 6 Channels at 1080p (30 fps)
Streaming	Video, Video & Audio
Audio Compression	G.711ulaw, G.711alaw, G.722, G.726
Remote	Remote Connections: 32
Network Protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network Interface	1 x RJ45 1000M Self-Adaptive Ethernet Port
PoE Interface	16 x 100M RJ45 Self-Adaptive Ethernet Ports
PoE Power	≤150 W
PoE Standard	IEEE 802.3af/at
SATA	2 x SATA Interfaces
HDD Capacity	8 TB per HDD
HDD Included	4 TB
Alarm I/O	N/A (4/1 Optional)
USB	2 x USB 2.0
Power Supply	100 to 240 VAC, 50 to 60 Hz
Power Consumption	≤15 W
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90% (Non-Condensing)
Rack Units	1 RU
Dimensions	15.2 x 12.4 x 2″ / 385 x 315 x 52 mm
Weight	5.7 lb / ≤2.6 kg (Without HDD)

Camera

Image Sensor	1/3″, 4 MP Progressive Scan CMOS
Maximum Resolution	2560 x 1440
Shutter Speed	1/100,000 to 1/3 Seconds
Minimum Illumination	Color: 0.001 Lux (f/1.0 with AGC) 0 Lux with Light
Day/Night	24/7 Color Imaging
3-Axis Adjustment	Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360°
Lens	2.8mm
Digital Noise Reduction	3D-DNR
Field of View	Horizontal: 96° Vertical: 52° Diagonal: 113°
Lens Mount	M12
Iris	Fixed
Aperture	f/1.0
Depth	Depth of Field: 6.6′ to Infinity / 2 m to Infinity
WDR	120 dB
IR Range	98′ / 30 m
IR Wavelength	850 nm
Video Compression	Main Stream: H.265, H.264 Sub-Stream: H.265, H.264, MJPEG
H.264 Profile	Main, High Main Stream: H.264+
H.265 Profile	Main, High Main Stream: H.265+
Video Bit Rate	32 kb/s to 16 Mb/s
Alarm Triggers	Basic Event: Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error)
Alarm Linkage	Trigger Recording: Memory Card, Network Storage, Pre-Record and Post-Record Trigger Captured Pictures Uploading: FTP, HTTP, NAS, Email Trigger Notification: HTTP, ISAPI, Email
Region of Interest	One Fixed Region for Main Stream and Sub-Stream
Frame Rate	Main Stream: 30 fps at 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 Sub-Stream: 30 fps at 640 x 480, 640 x 360, 320 x 240
Image Enhancement	BLC, HLC, 3D-DNR
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance
Day/Night Switching	Day, Night, Auto, Scheduled
Network Storage	Supports microSD/SDHC/SDXC Cards up to 128 GB, Local Storage, NAS (NFS, SMB/CIFS), ANR
Network Storage	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Functions	Anti-Flicker, Heartbeat, Mirror, Privacy Masks, Password Reset via Email, Pixel Counter, HTTP Listening
API	ONVIF Profiles G, S & T, ISAPI, SDK, Ehome
Security	Password Protection, Complicated Password, HTTPS Encryption, 802.1x Authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), Watermark, IP Address Filter, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for ONVIF, TLS1.2
Simultaneous Live View	Up to 6 Channels
User/Host Level	Up to 32 Users at 3 Host Levels (Admin, Operator, User)
Client	iVMS-4200, Hik-Connect, HikCentral
Web Browser	Plug-In Required Live View: Internet Explorer 8+ Plug-In Free Live View: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Communication Interface	1 x RJ45 100M Self-Adaptive Ethernet Port
SVC	H.264/H.265 Encoding
Reset Button	Yes
Operating Temperature	-22 to 140°F / -30 to 60°C
Operating Humidity	0 to 95% (Non-Condensing)
Storage Temperature	-22 to 140°F / -30 to 60°C
Storage Humidity	0 to 95% (Non-Condensing)
Power Supply	12 VDC ≤25%, 0.4 A, 5 W Maximum PoE (802.3af, Class 3) 36 to 57 V, 0.2 to 0.15 A, 6.5 W Maximum
IP Rating	IP67
Languages	English, Ukrainian
Material of Construction	Metal & Plastic
Dimensions	4.3 x 4.1″ / 109.9 x 103.6 mm
Weight	0.9 lb / 420 g

Packaging Info

Package Weight	31.495 lb
Box Dimensions (LxWxH)	19.5 x 19.5 x 17.8″
