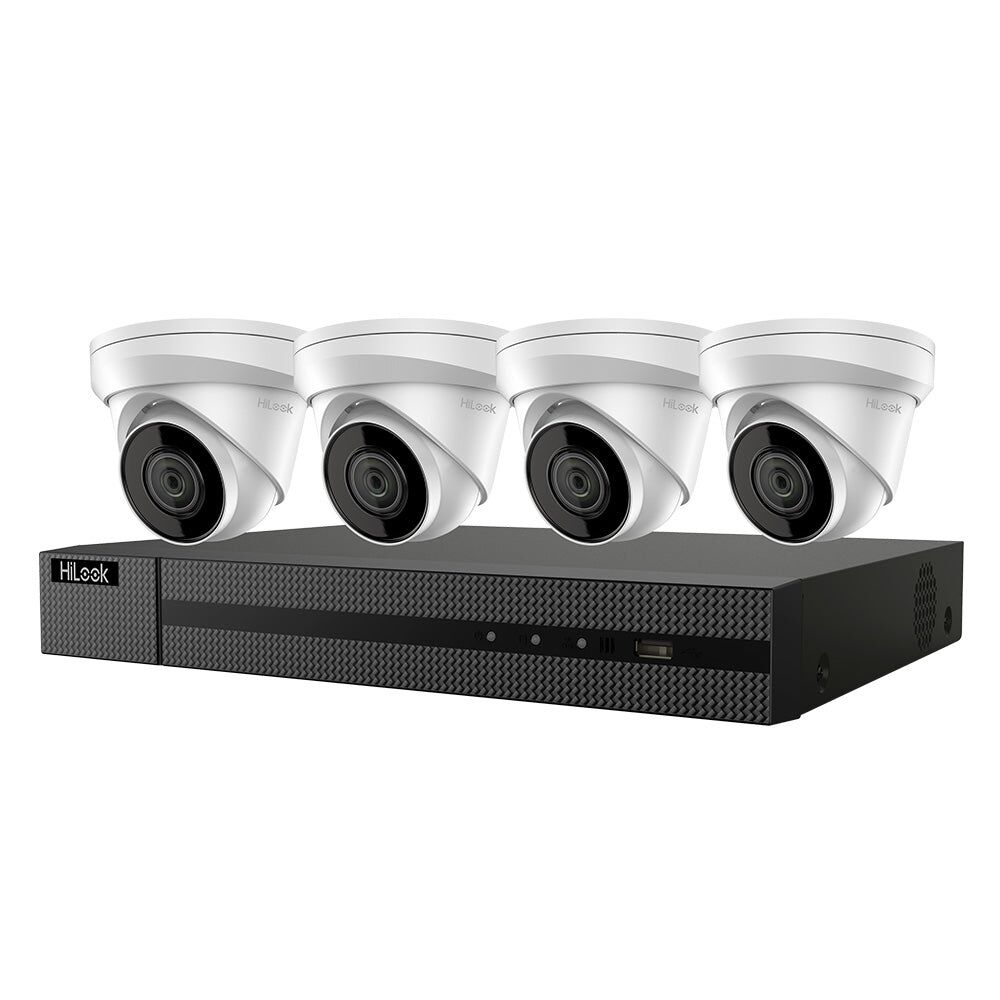

HiLook IK-4144TH-MH/P 4-Channel 4MP PoE NVR Kit | 1TB Pre-Installed HDD NVR, IP67, Desktop Client/HiLook Mobile App
The HiLook IK-4144TH-MH/P is a budget-friendly 4-channel, 4MP security camera system with night vision. Easy to set up, it offers remote viewing via free apps and includes a recorder, hard drive, 4 cameras, and cables.
Description
HiLook security cameras are a quality and budget friendly option for home and small business security. Use the free iOS and Android apps for live and recorded viewing. Free Windows software is also available. Camera set-up is plug and play – just connect the cameras to the recorder and they’re up and running. The recorder has an HDMI port to allow a local monitor to be connected.
The included 4MP cameras provide a great combination of resolution with day time colour viewing and night time infrared night vision.
The NVR (recorder) uses advanced H.265 video compression to store as much as possible without losing quality. The NVR has a pre-installed 1TB hard drive.
HiLook IK-4144TH-MH/P Includes:
1 x 4 Channel – NVR NVR-104MH-C/4P
1 x 1TB Hard Drive pre-Installed
4 x 4MP Cameras – IPC-T240H 2.8mm
5 x Network cables
HiLook IK-4144TH-MH/P Features:
NVR recording resolution up to 8MP
NVR has 4 channels and 4 PoE ports
4MP high def turret cameras with H.265 compression
Cameras have IR night vision up to 30m
Cameras have 2.8 mm lens, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
| Feature | Details |
|---|---|
| Image Sensor | 1/3″ progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Kit Model | IK-4144TH-MH/P |
| Camera Model | IPC-T240H (2.8mm) |
| NVR Model | NVR-104MH-C/4P |
| Camera | |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Upload to FTP, notify surveillance center, send email |
| General | |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material | Metal & Plastic |
| Dimension | Ø112 mm × 81.5 mm (Ø4.41″ × 3.21″) |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight | Approx. 320 g (0.7 lb.) |
| With Package Weight | Approx. 556 g (1.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval | EMC FCC SDoC (47 CFR Part 15, Subpart B); IC VoC (ICES-003: Issue 6, 2016); Protection IP67 (IEC 60529-2013) |
| NVR | |
| Video and Audio | |
| IP Video Input | 4-ch, Up to 8 MP resolution |
| Incoming/Outgoing Bandwidth | 40 Mbps/80 Mbps |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Video Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Capability | 2-ch@8 MP (15 fps)/5-ch@1080p (30 fps) |
| Network | |
| Remote Connection | 16 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 50 W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power Supply | 48 VDC, 1.35 A |
| Consumption (without HDD and PoE off) | ≤ 10 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 265 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″) |
| Weight (without hard disk) | ≤ 1 kg (2.2 lb) |
| Kit | |
| Accessories | Network cable: 4 × 18 m (59.1 ft) video and power cable, 1 × 1 m (3.3 ft) video and power cable |
| Hard Drive | Pre-installed 1 TB HDD |
| Certification | FCC, CE |
| Weight (with package) | ≤ 6.5 kg (14.3 lb) |
