Premium 3.5mm Male to 2x 1/4 inch TS Male Audio Cable FT4
Description

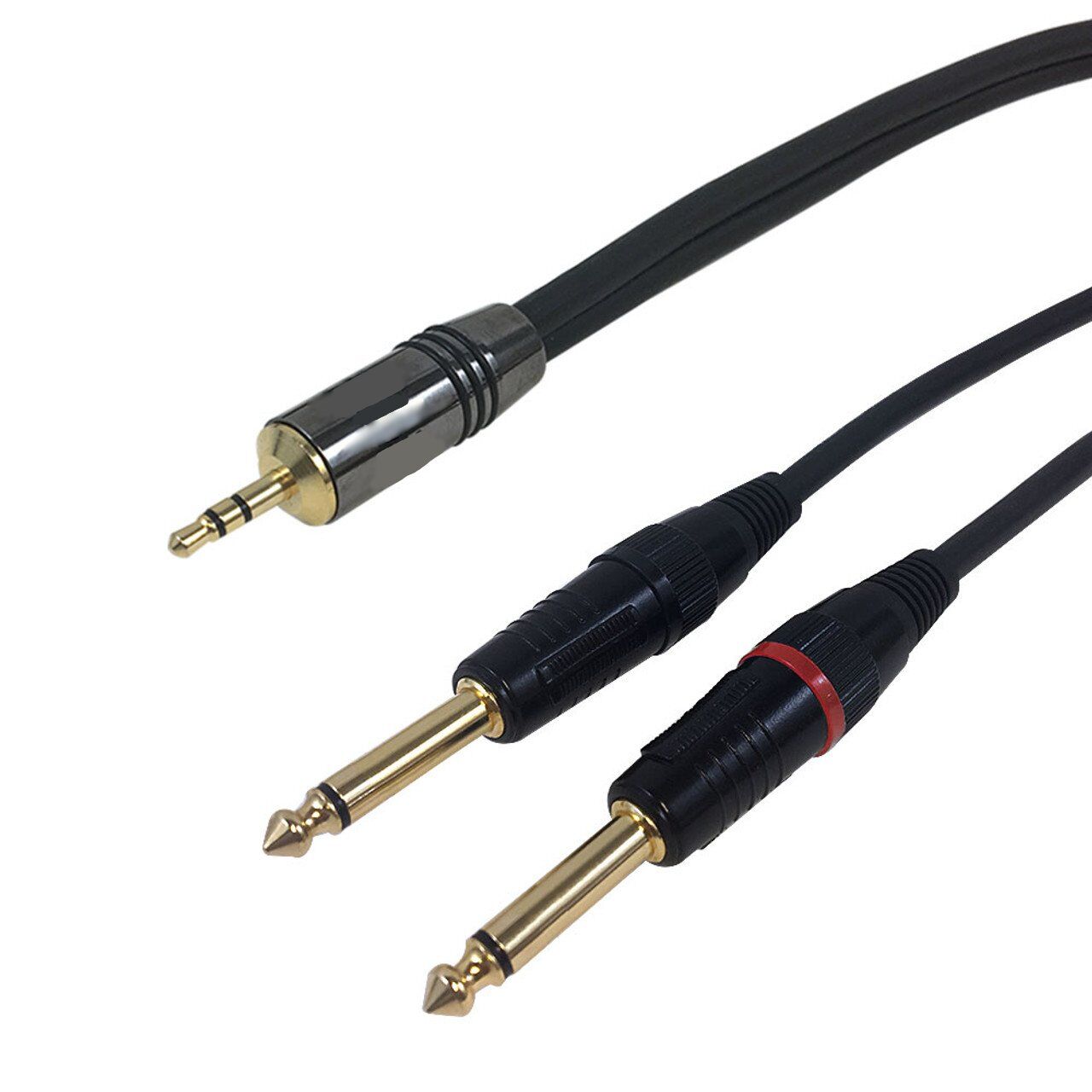

This stereo audio cable has a 3.5mm male on one end and two 1/4 inch TS male connectors on the other. It is typically used to connect audio devices such as PCs and stereo systems to the input of unbalanced pro audio equipment.
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, “silver laced” solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 5.0mm x 10.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid |
| Strain Relief | Metal Shell |
|
Connectors
|
|
| Connector A | 3.5mm Stereo Male |
| Connector B | 1/4 Inch TS Male – Black |
| Connector C | 1/4 Inch TS Male – Red |
|
Approvals
|
|
| cUL | Yes – Cable |
|
Environmental
|
|
| RoHS | Yes |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
Cable Weights
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.45 lbs | 0.55 lbs | 0.80 lbs | 1.00 lbs | 1.35 lbs | 2.00 lbs | 2.65 lbs | 3.65 lbs |
