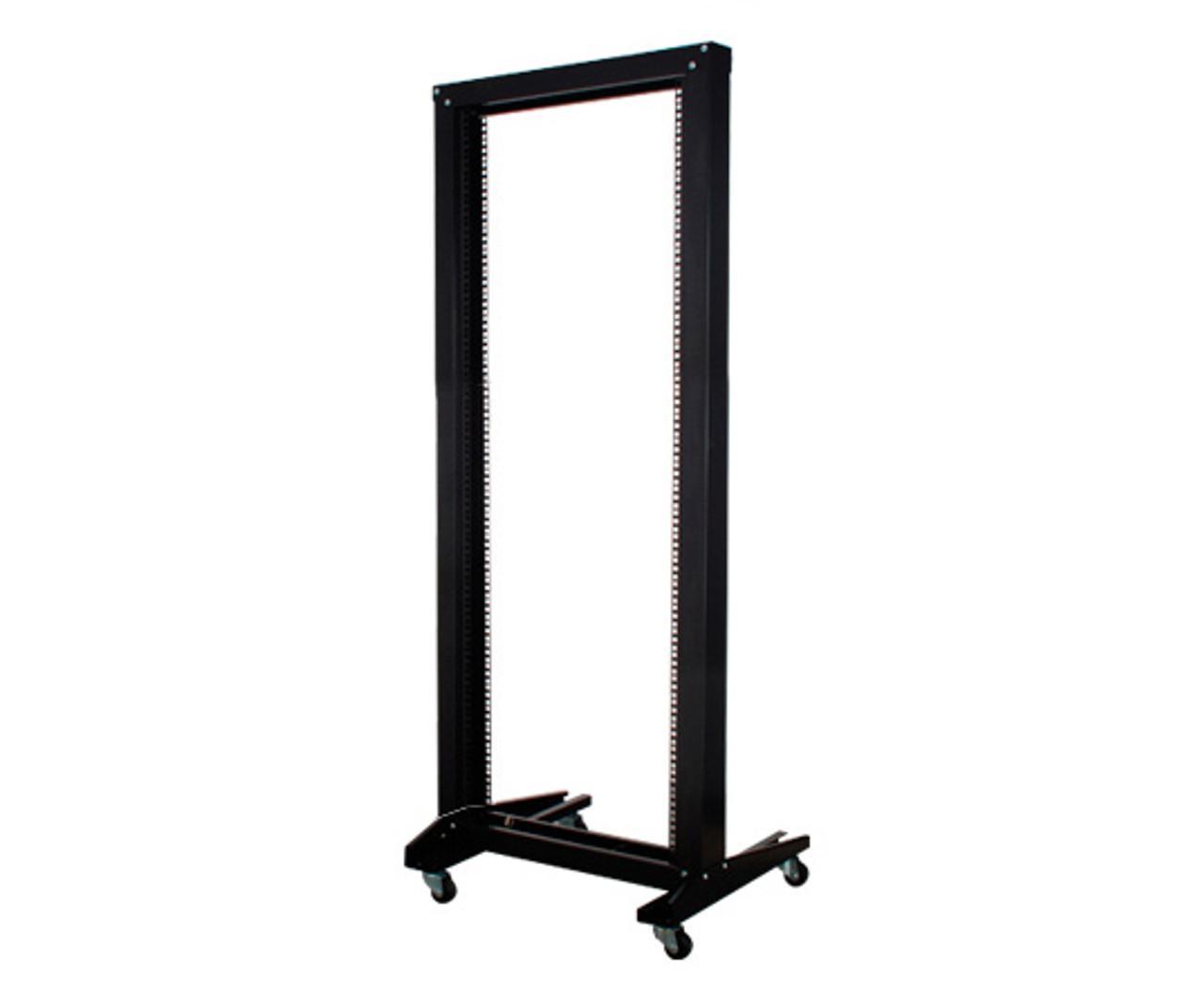

Relay Rack 27U (52 inch) – Knock Down Style

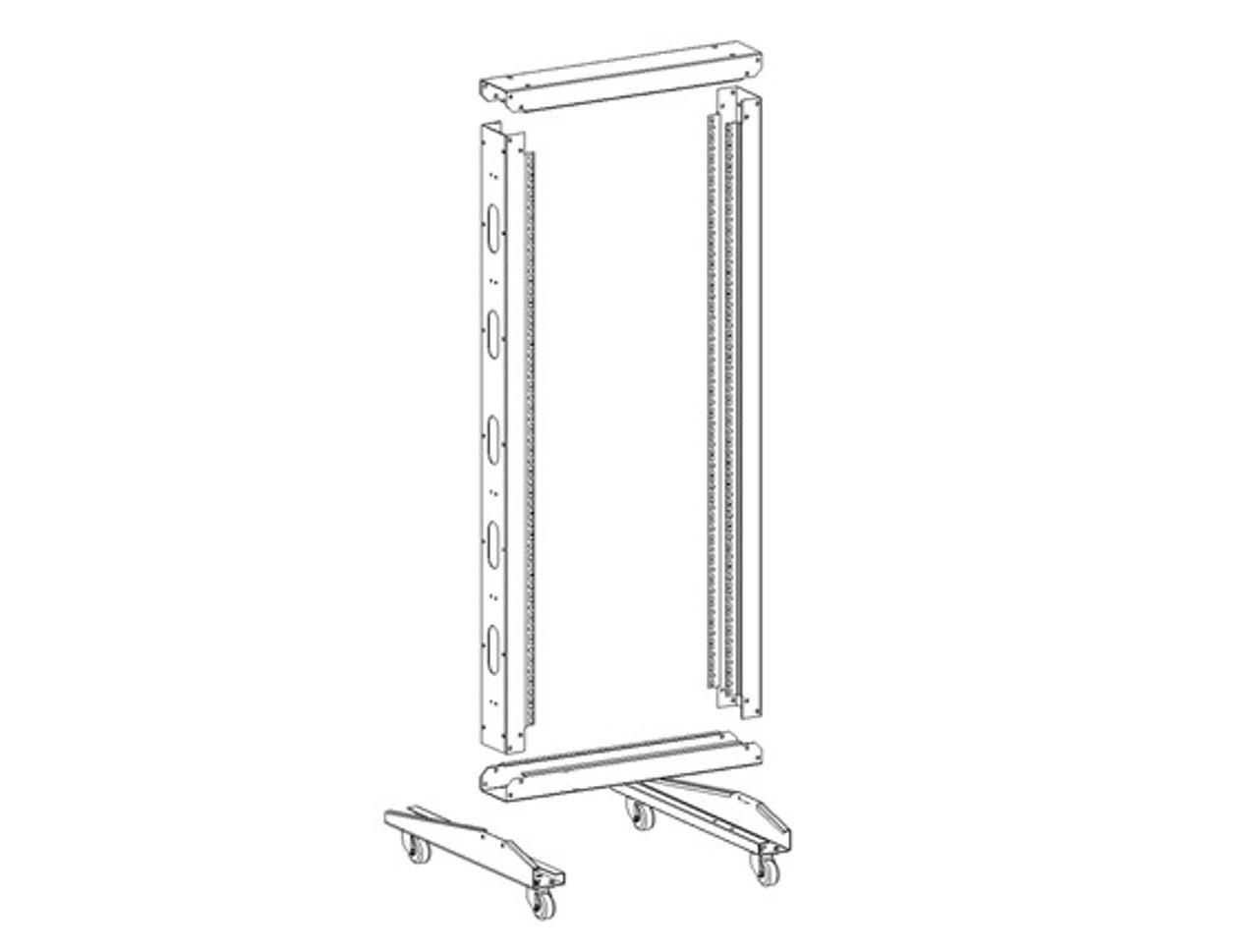

This 2-post relay rack is 19 inches wide, and 27U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
Description
This 2-post relay rack is 19 inches wide, and 27U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
|
Physical Characteristics
|
|
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 330 lbs [150kg] |
| Mounting Rails | 2 x 19″-Mounting Rail Posts (square hole knockouts on both sides) |
| Mounting Rail Thickness | 1.9mm |
| Product Dimensions |
23″W 23″D 52″H [58W 58D 142H cm] |
|
Compatibility
|
|
| Compatible Vertical Cable Managers | RM-450-29U – Vertical Cable Manager for Relay Rack – 29U RM-455-26U – 26U Vertical Cable Manager – Front Facing |
|
Approvals
|
|
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 – Relay Rack 29U (56 inch) – Knock Down Style (Unassembled) |
| 4 – Casters (use of casters is optional) | |
| 20 – M6 Screws and Cage Nuts | |
| Assembly Equipment | |
| Product Weight | 37.4 lbs [17.0kg] |
