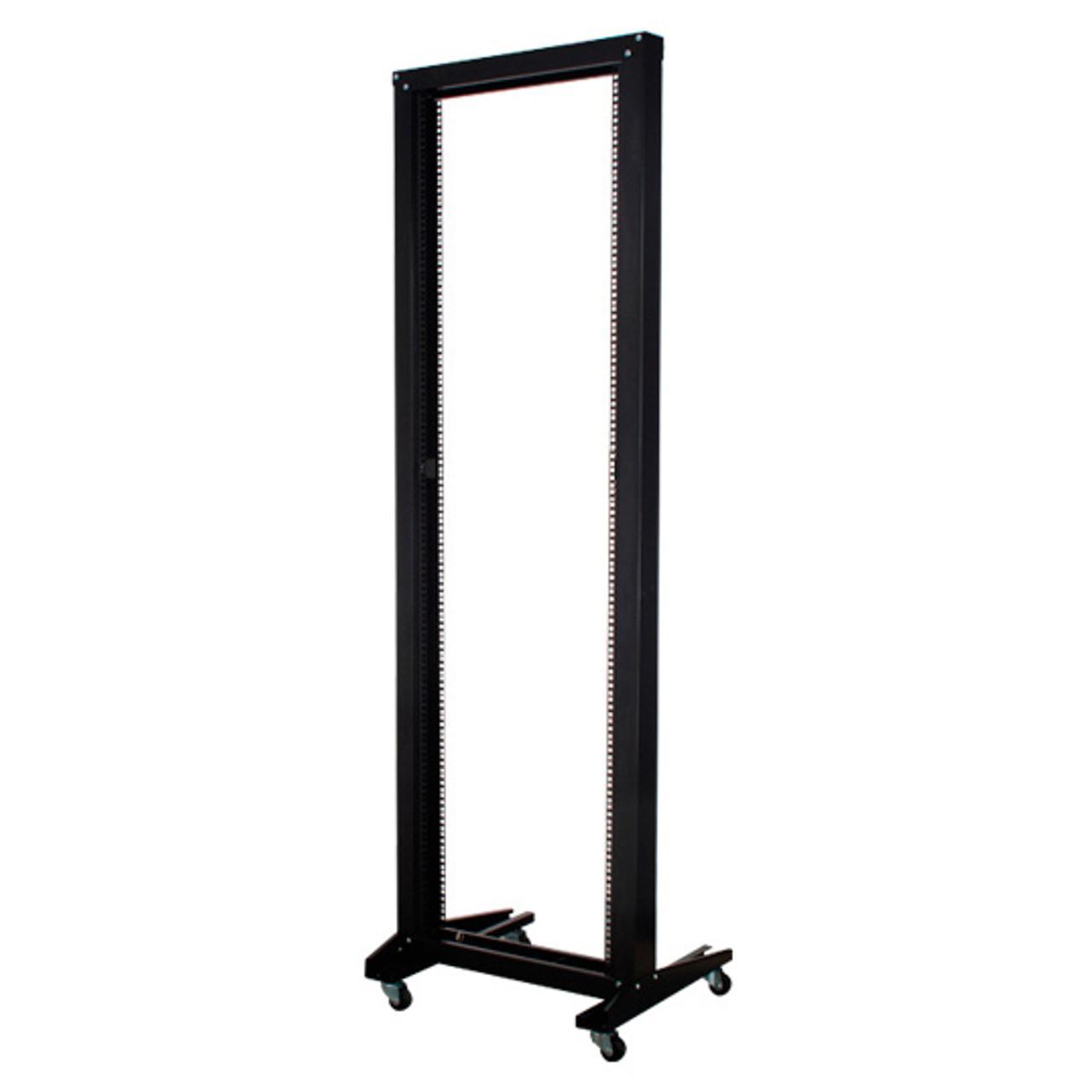

Relay Rack 42U (78 inch) – Knock Down Style
This 2-post relay rack is 19 inches wide, and 42U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
Description
This 2-post relay rack is 19 inches wide, and 42U in height. It is typically used to mount networking and audio/video rack mountable equipment. Shipped knockdown in a flat-pack for easy handling and shipping.
|
Physical Characteristics
|
|
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 330 lbs [150kg] |
| Mounting Rails | 2 x 19″-Mounting Rail Posts (square hole knockouts on both sides) |
| Mounting Rail Thickness | 1.9mm |
| Product Dimensions |
78.75” H x 23.6”W x 23.6”D [200cm H x 60cm W x 60cm D] |
|
Compatibility
|
|
| Compatible Vertical Cable Managers | RM-450-42U – Vertical Cable Manager for Relay Rack – 42U RM-455-42U – 42U Vertical Cable Manager – Front Facing |
|
Approvals
|
|
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 – Relay Rack 42U (78 inch) – Knock Down Style (Unassembled) |
| 4 – Casters (use of casters is optional) | |
| Assembly Hardware | |
| M6 Screws and Cage Nuts | |
| Product Weight | 45.1 lbs [20.5kg] |
| Package Dimensions |
78” H x 6.5” W x 7” D [198cm H x 16.5cm W x 17.8cm D] |
