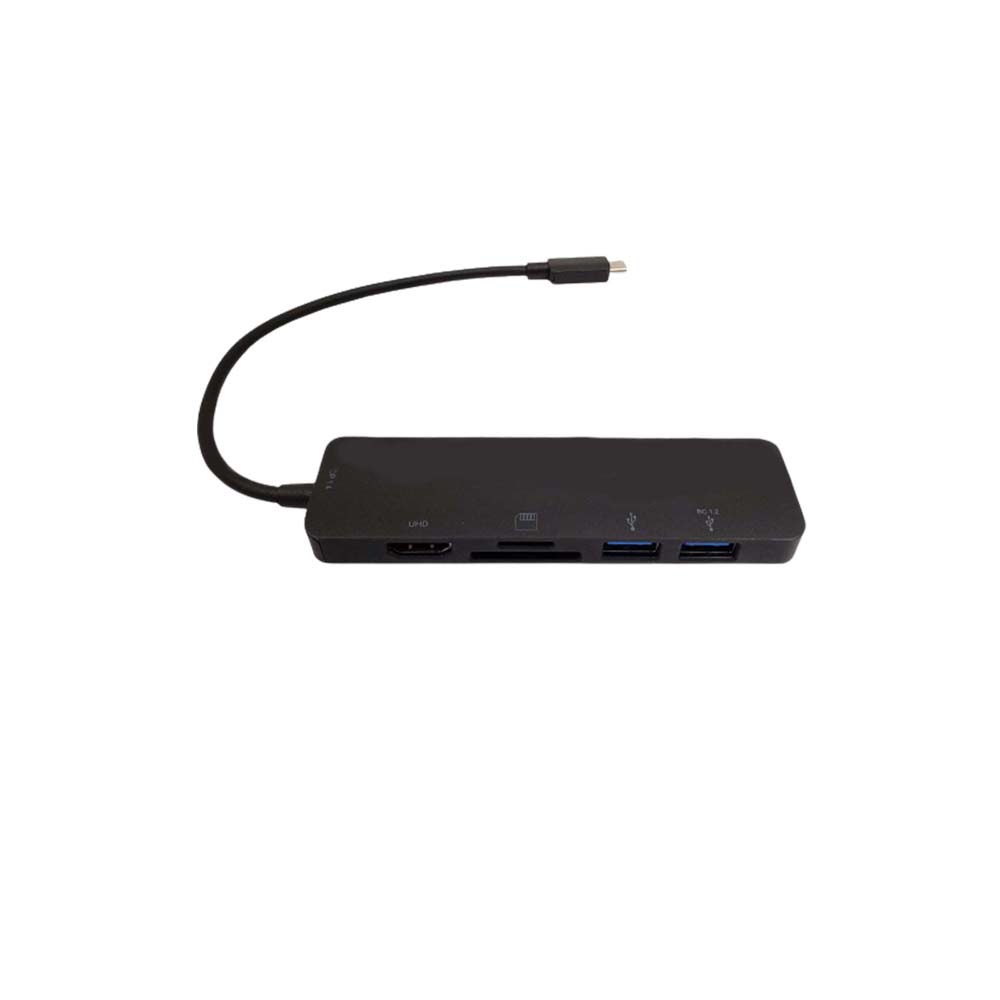

USB 3.1 Type-C to HDMI, 2x USB-A 3.0, USB Type-C, RJ45, SD/Micro SD – DP 1.4 Alt Mode – Black
This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male connector on one end and a HDMI female, USB 3.1 Type-C female, two USB 3.0 A female ports, an RJ45 port and a SD/Micro SD slot on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation. The USB Type-C port on the input side can be used to simultaneously charge your device. It can work on all Type-C and ThunderboltTM 3 hosts that support DP Alt mode (including DP1.4 and DP1.2 Alt mode).
Description
This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male connector on one end and a HDMI female, USB 3.1 Type-C female, two USB 3.0 A female ports, an RJ45 port and a SD/Micro SD slot on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation. The USB Type-C port on the input side can be used to simultaneously charge your device. It can work on all Type-C and ThunderboltTM 3 hosts that support DP Alt mode (including DP1.4 and DP1.2 Alt mode).
Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4K@60Hz. When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4K@30Hz due to bandwidth limitation.
 | Expand your Type-C Devices ConnectivityThis 7×1 USB Type-C docking station has an HDMI port for connecting external displays, two USB 3.0 A Super Speed ports, a USB Type-C port with Power Delivery charging, a SD/Micro SD slot and an Ethernet port for network connection. High Performance and Quality Video OutputThe HDMI output provides a simple plug&play connection to almost any HDMI display with an Ultra HD 4K resolution. Fast Data TransferThe Super Speed USB 3.0 ports supports faster data transfer up to 5Gbps per port. DisplayPort Alt ModeThis adapter works on all Type-C and ThunderboltTM 3 hosts that support DP Alt mode (including DP1.2 and DP1.4 Alt mode).
|

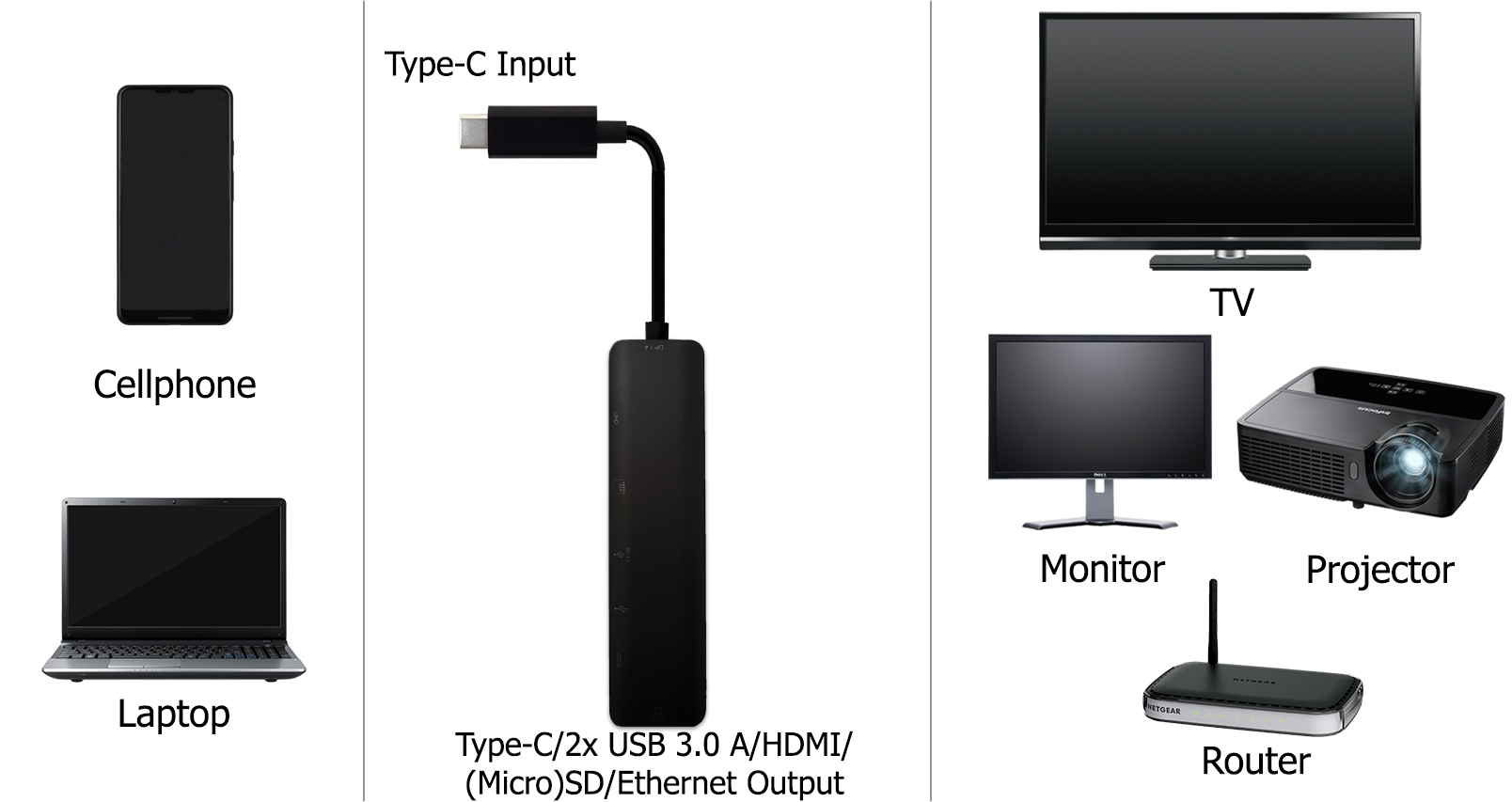

Application
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| USB 3.1 Type-C Female | |
| 2x USB 3.0 A Female | |
| RJ45 Female | |
| SD Card Slot | |
| Micro SD Card Slot | |
| Performance | |
| USB Type-C Port | Supports data transmission (Max 5Gbps), Max 7.5W(5V/1.5A) Downstream charging, share max 7.5W downstream charging with USB-A port Supports Power Delivery charging 100W (20V/5A) Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging the PD adapter in and out 8W dedicated to adapter, the remaining 92W power will be passed to charge for the host |
| HDMI Resolution | Supports 4Kx2K@60Hz, 4:4:4, 8bit with 18Gbps bandwidth Supports 6/8/10/12 bit color depth output Supports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 Supports HDCP 2.2/1.4 Supports HDR |
| USB Type A Ports | 1 USB-A supports BC 1.2 with max 7.5W (5V/1.5A) downstream charging, 2 USB-A share max 8W (5V/1.6A) downstream charging Max 5Gbps bandwidth |
| RJ45 Port | 10M/100M/1000M |
| SD/Micro SD Slot | Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbytes/s) / SDR25(25Mbyte/s) / SDR50(50Mbyte/s) / SDR104(104Mbyte/s) |
| Supports | DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), Downward compatible with DP1.2 Alt mode Note: To get max bandwidth, the host should support standard DP1.4 Alt mode with DSC format |
| Compatibility | Compliant with USB 3.1, Backward Compatible with USB 3.0 and USB 2.0 |
| System Requirements | |
| Windows Compliant | Yes |
| Mac Compliant | Yes |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.44 lbs [0.19kg] |
