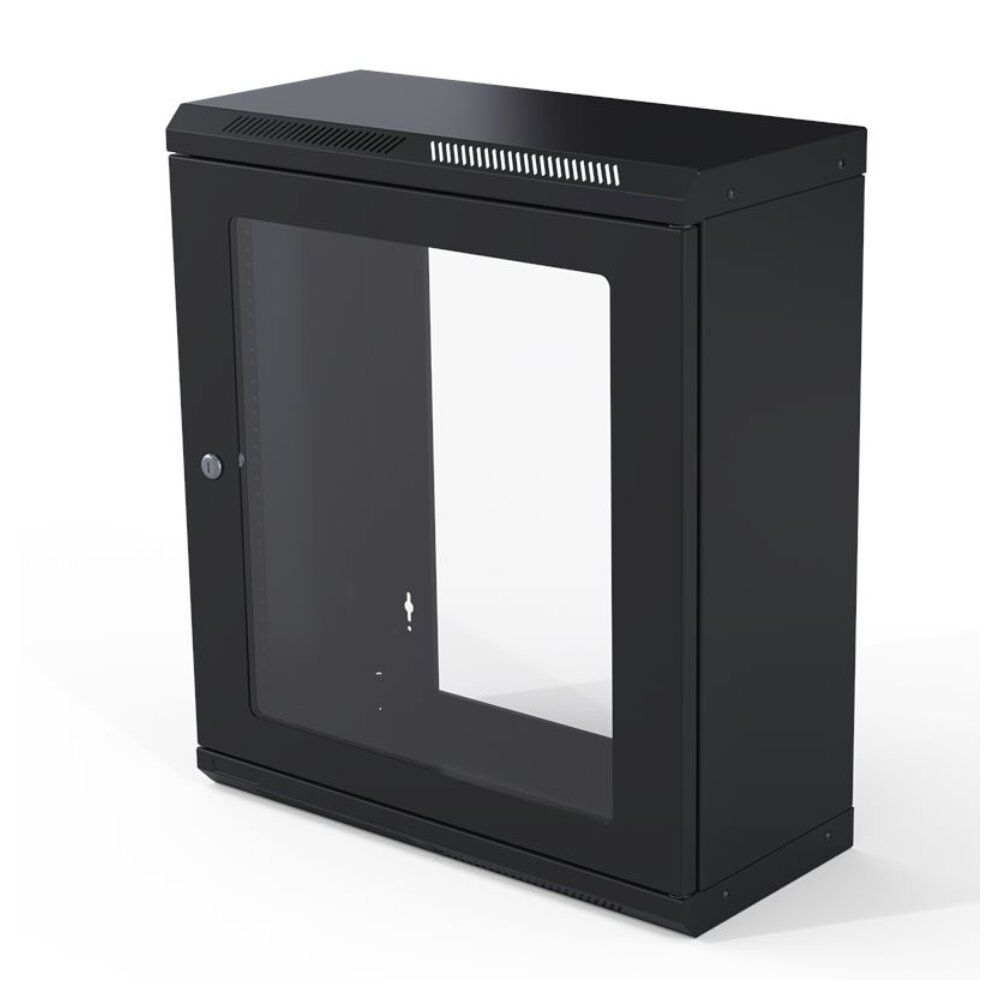

Wall Mount Cabinet 12U x 12b3 Depth, Open Back, Glass Door b Black
This 12U wall mount cabinet comes with a lockable front door, removable side panels with open back door. The cabinets are fully vented with a lockable steel framed glass door for safety and security. Quick release hinges allow for easy access to the cabinet for loading equipment and cables. Removable side panels allow access from each side and gland plate covers ad cable strain relief positions are included in the top and bottom of the cabinets. The cabinets have a modern, pleasing appearance and offer outstanding value. The sturdy cabinets are quick and easy to install and provide an economic solution for cabling installations.
Description
This 12U wall mount cabinet comes with a lockable front door, removable side panels with open back door. The cabinets are fully vented with a lockable steel framed glass door for safety and security. Quick release hinges allow for easy access to the cabinet for loading equipment and cables. Removable side panels allow access from each side and gland plate covers ad cable strain relief positions are included in the top and bottom of the cabinets. The cabinets have a modern, pleasing appearance and offer outstanding value. The sturdy cabinets are quick and easy to install and provide an economic solution for cabling installations.
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | mounting profile: 1.2mm, others: 1.0mm |
| Doors | steel+glass front door, opening direction of door can be changed |
| turning angle of front door is over 180 degrees | |
| Removable Side Panels | Yes |
| Adjustable Mounting Profile Installation | Yes |
| Assembly Required | Yes (Flat Packed) |
| Loading Capacity | Maximum 132 lbs [60 kg] |
| Cable Entries | Cable entry on both of top cover and bottom panel |
| Width | 21 inches |
| Capacity | 9U |

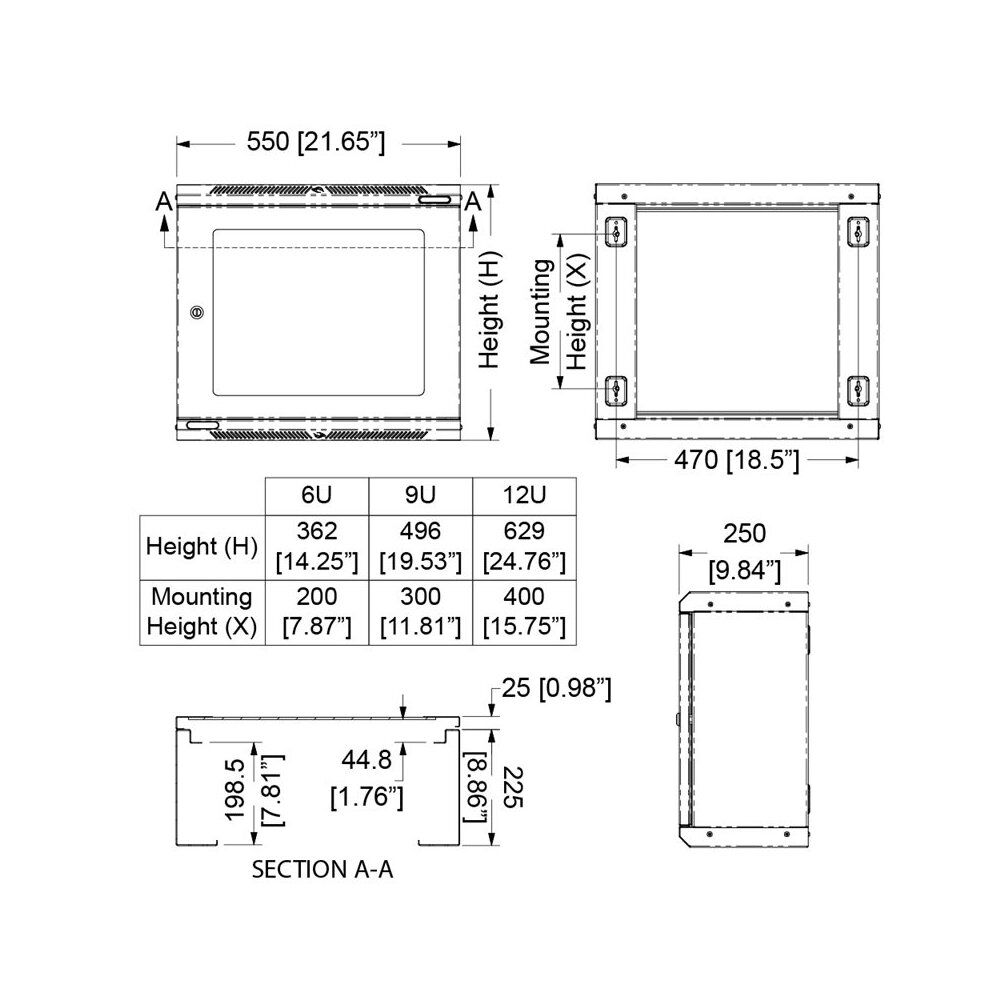

| Product Dimensions | 22.87H, 20.86W, 11.81D inches [581 H, 530 W, 300 D MM] |
| Front Rail Depth | Adjustable depth 105mm 125mm 145mm 165mm 185mm 267mm 297mm 317mm 337mm 357mm (Measured from the Glass to the Rail) |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| RoHS | Yes |
| Reach | Yes |
| Package Quantity | 1 – Wall Mount Cabinet 9U (Unassembled) |
| Mounting Hardware | M5X10 self-tapping screws— 8pcs M6X12 screws —8pcs M6X12 screws&square nuts—10SET |
| Product Weight | 41.36 lbs |
