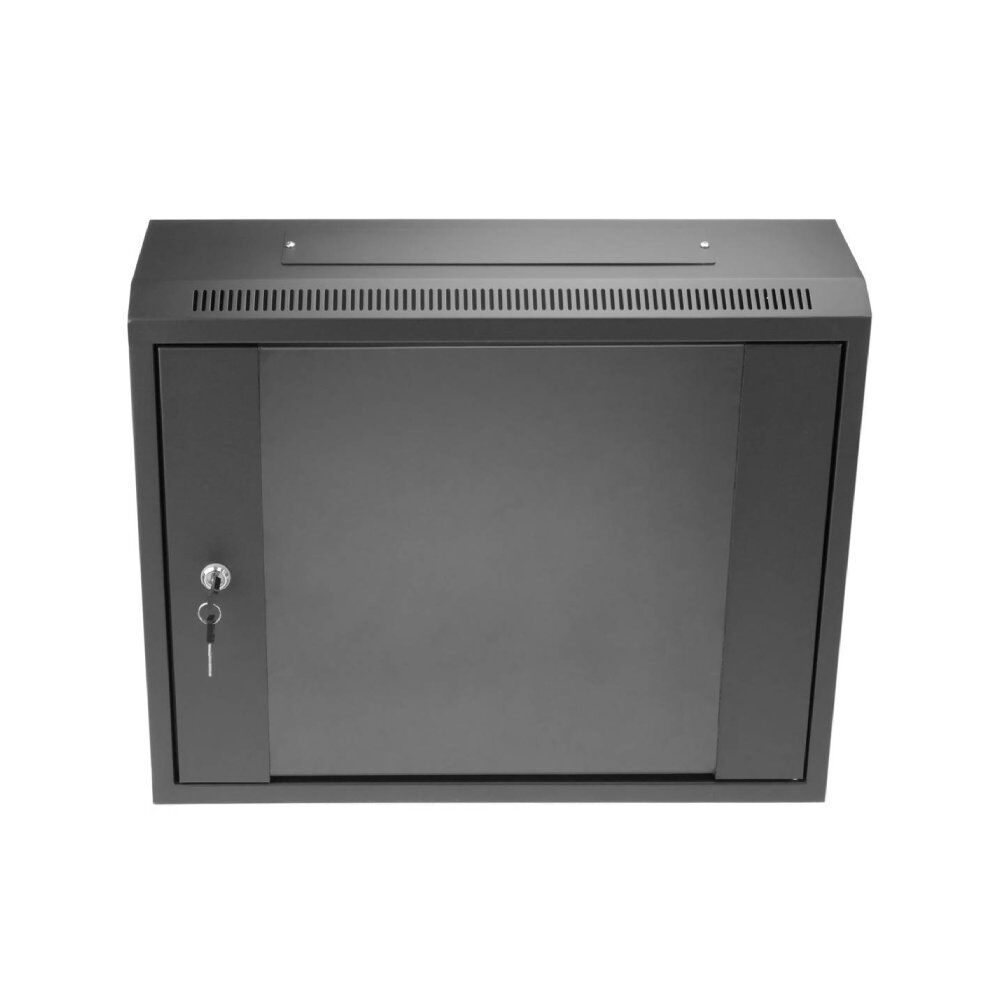

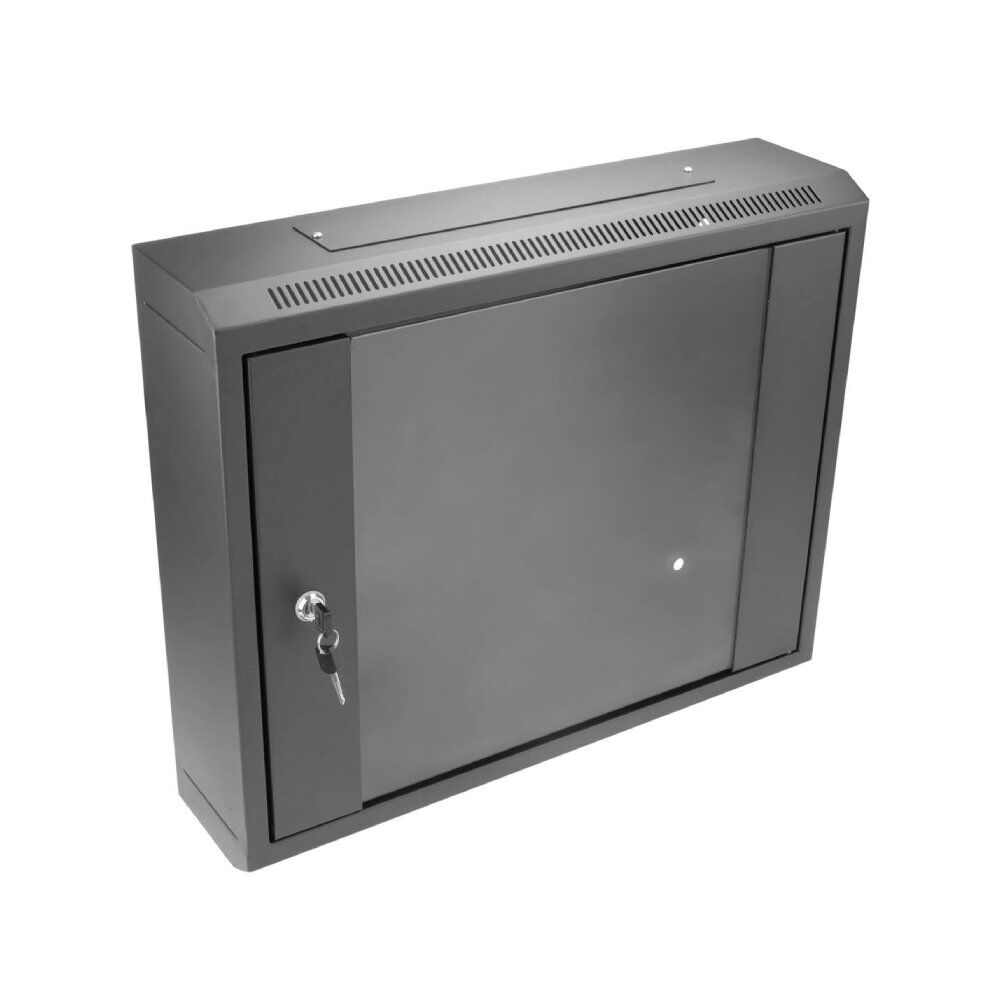

Wall Mount Cabinet 9U x 6b3 Depth, Glass Door b Black
9U wall cabinet and external size in mm of 600 (A) x 150 (D) x 505 (H). It has a single front frame compatible with a 19″ rack and which is configurable in depth (6 levels), although by default it is supplied installed in the center of the cabinet. The distance from the rack to the bottom of the cabinet (useful depth) could be up to 105 mm, moving the rack forward as much as possible.
Description
9U wall cabinet and external size in mm of 600 (A) x 150 (D) x 505 (H). It has a single front frame compatible with a 19″ rack and which is configurable in depth (6 levels), although by default it is supplied installed in the center of the cabinet. The distance from the rack to the bottom of the cabinet (useful depth) could be up to 105 mm, moving the rack forward as much as possible.

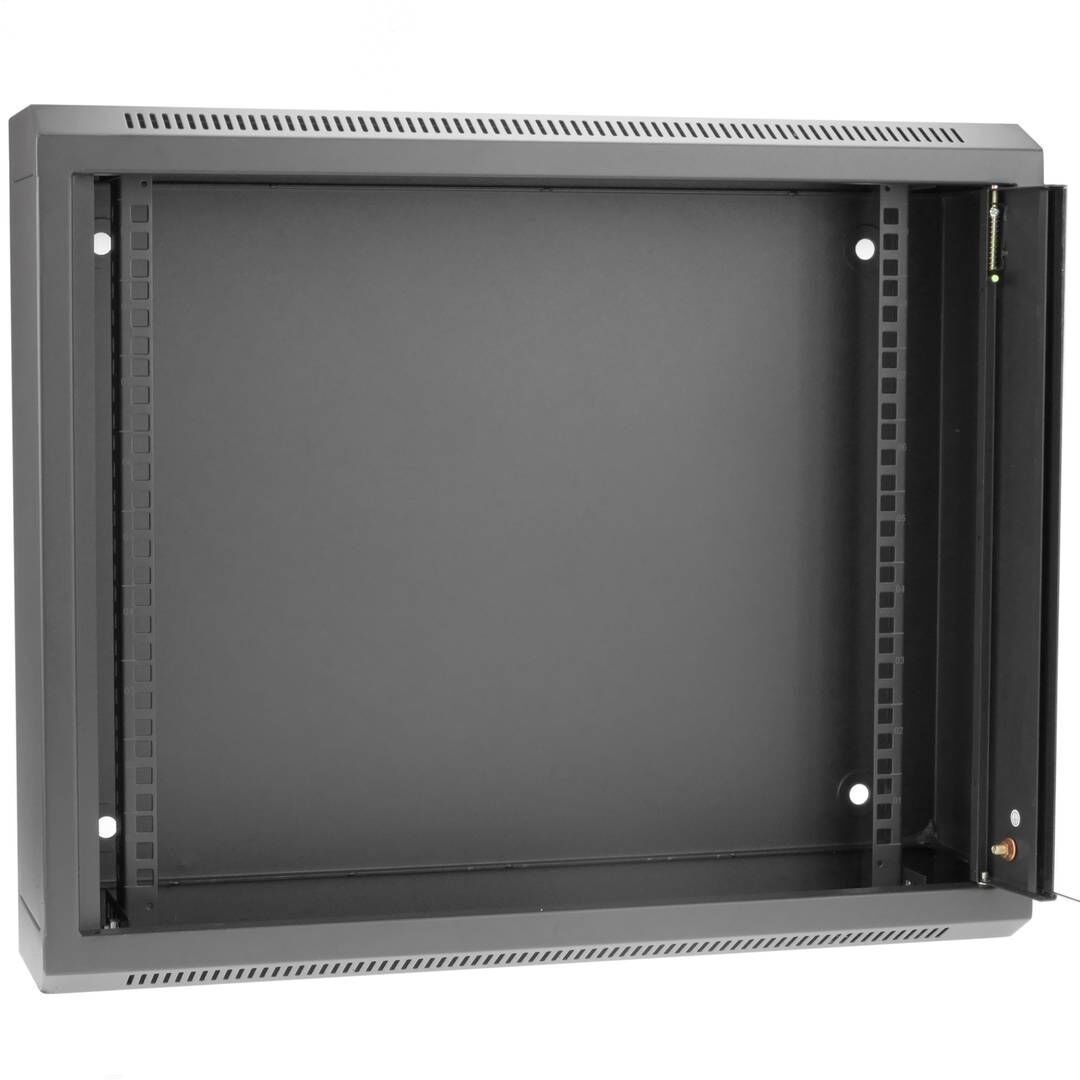

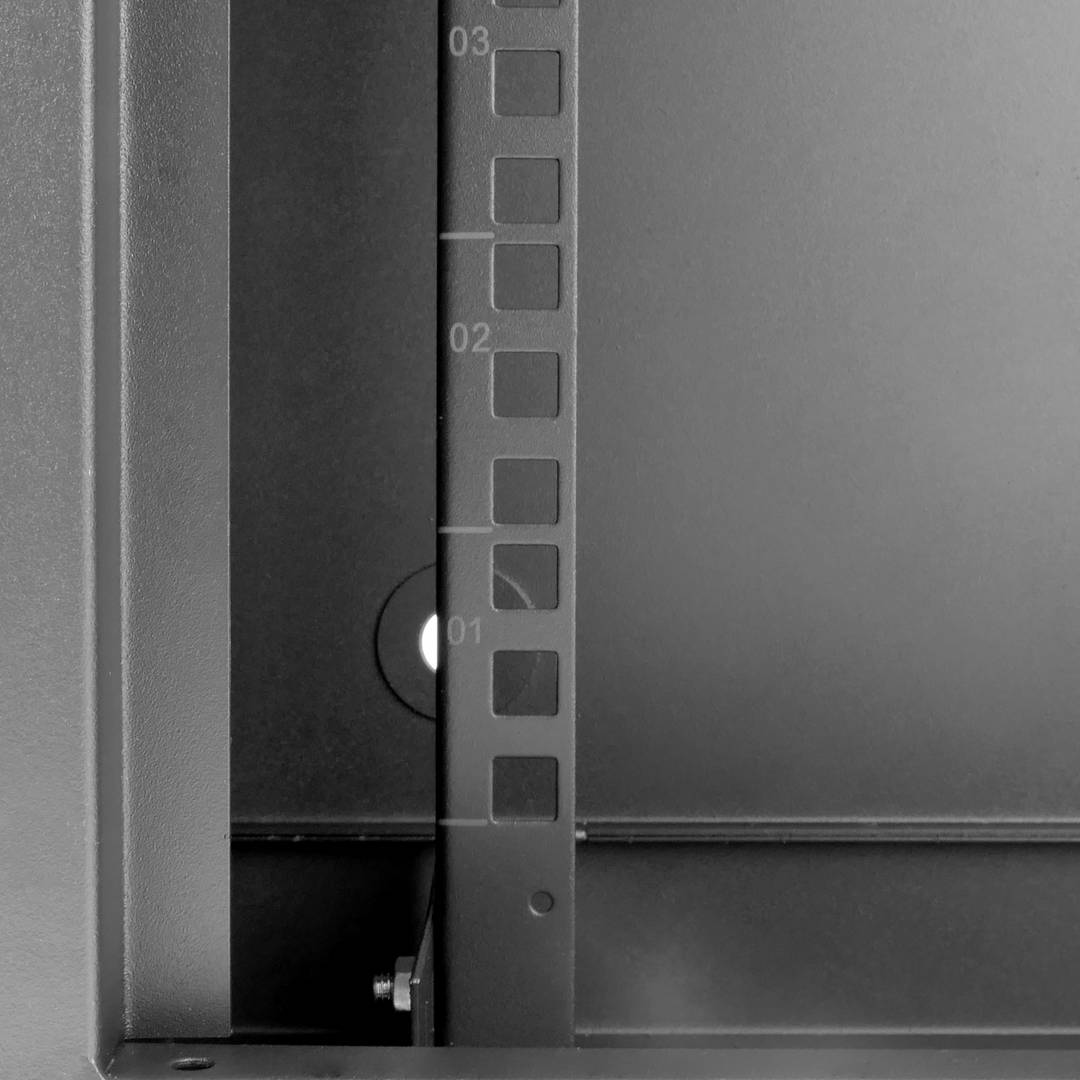

- Complete structure and with front 19″ rack guides, adjustable in depth to adapt to any need.

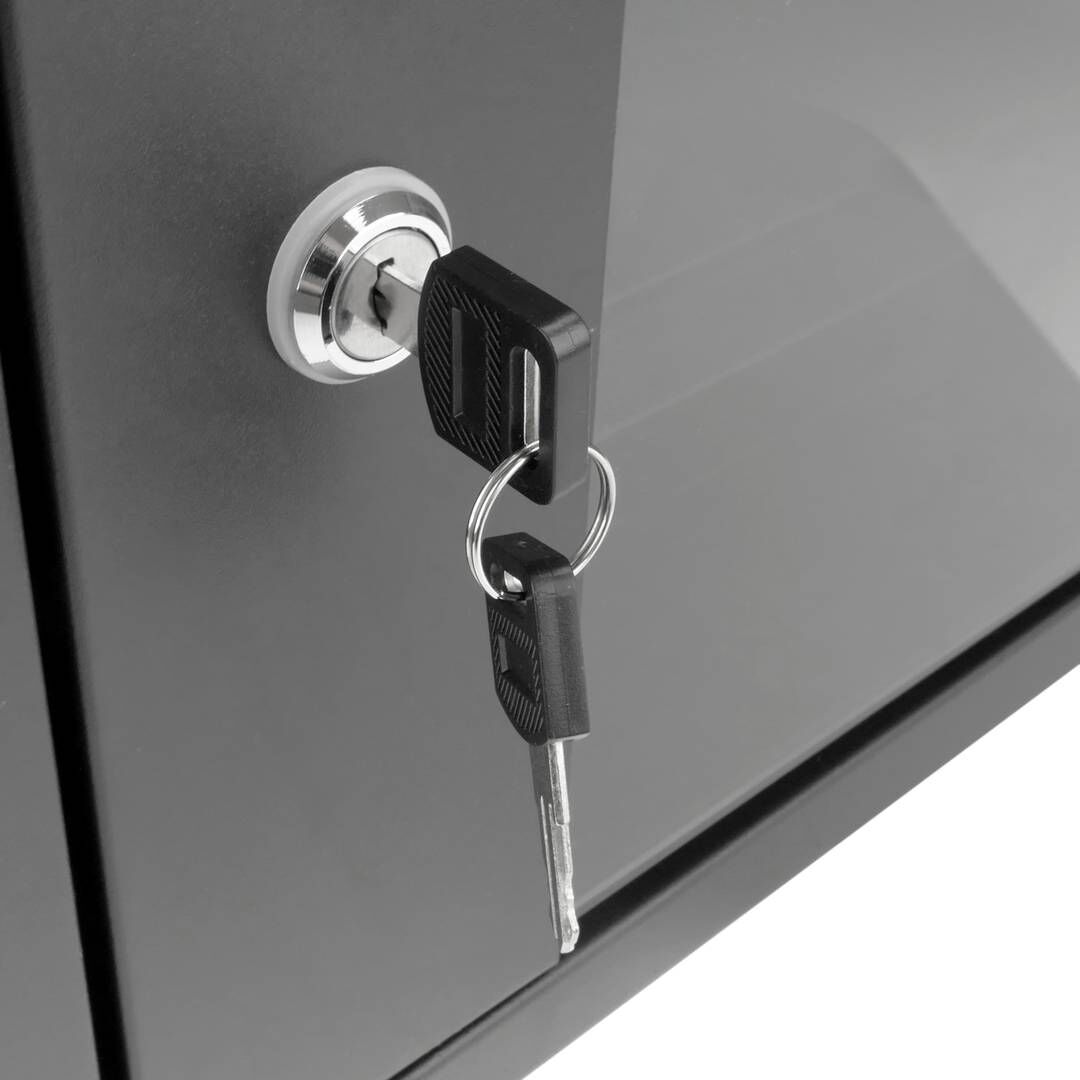

- Glass door, with lock and key (includes two). 180 degree door opening.

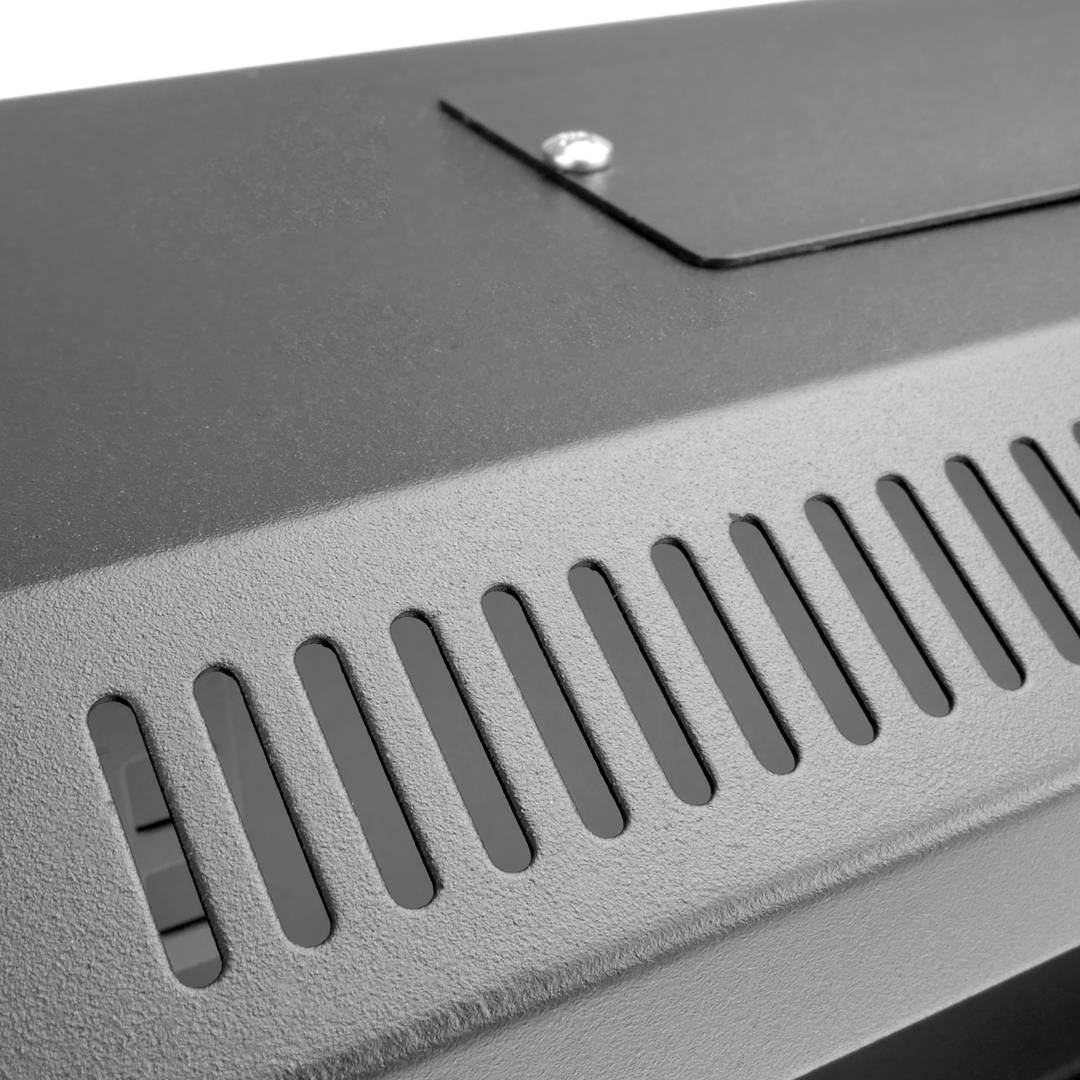

- Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left open or closed with a metal plate.
- Holes in the back plate for fixing the cabinet to the wall.
- 150 mm cabinet depth.
- They are delivered to the customer fully assembled and packed, ready to be installed.
- Made of SPCC steel painted black. They comply with the most demanding regulations and standards ANSI/ EIARS-310-D, IEC297-2, DIN41491 (part 1, Part 7) and DIN41494.
- Cabinet measurements (width x depth x height): 600x150x467mm.
