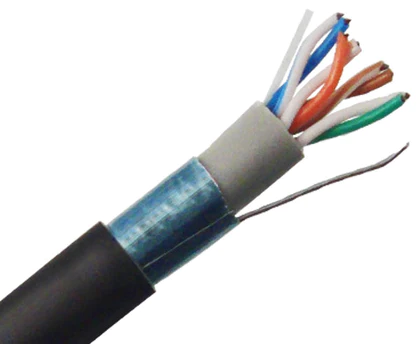

100ft 4 Pair Cat5e 350MHz F/UTP Solid UV / Direct Burial Bulk Cable – Black
This bulk outdoor rated Cat5e cable is 100 feet in length and consists of 4 pairs of 24AWG solid wires. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
Description
This bulk outdoor rated Cat5e cable is 100 feet in length and consists of 4 pairs of 24AWG solid wires. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
| Physical Characteristics | |
|---|---|
| Cable Length | 100 foot [30.5m] |
| Color | Black |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 24AWG Solid |
| Conductor Material | 100% Bare Copper |
| Product Standard Certification | CMX |
| Jacket Material | LSZH (UV) |
| Jacket Rating | Direct Burial / UV |
| Inner Jacket Average Thickness | 0.016 inch [0.40 mm] |
| Inner Jacket Minimum Point Thickness | 0.014 inch [0.36 mm] |
| Inner Jacket Outer Diameter | 0.19 inch [4.80±0.10 mm] |
| Aluminum Foil | Yes |
| Drain Wire (Tinned Copper) | 7/0.16 |
| Outer Jacket Average Thickness | 0.023 inch [0.60 mm] |
| Outer Jacket Minimum Point Thickness | 0.021 inch [0.54 mm] |
| Outer Diameter | 0.24 inch [6.20±0.10 mm] |
| Rip Cord | Yes |
| Cable Shielding | None |
| Insulation | PE |
| Insulation Average Thickness | 0.008 inch [0.200mm] |
| Insulation Minimum Point Thickness | 0.007 inch [0.185mm] |
| Insulation Diameter | 0.036 inch [0.91±0.005mm] |
| Twisted Pair Diameter | 0.072 inch [1.82±0.01mm] |
| Temperature Rating | 75°C |
| Rated Voltage | 60V |
| Mechanical Characteristics | |
| Before Tensile Strength (Mpa) | ≥13.8 |
| Aging Elongation (%) | ≥100 |
| Aging Condition (ºCxhrs) | 100×168 |
| After Tensile Strength (Mpa) | ≥85% of unaged |
| Aging Elongation (%) | ≥50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Environmental Characteristics | |
| 1.0-350MHz Impendance (Ohms) | 100±15 |
| 1.0-350MHz Delay Skew (ns/100m) | ≤45 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | ≤330 |
| Max. Conductor DC Resistance 20°C (ohms/km) | 88.5 |
| Resistance Unbalance (%) | ≤5 |
| Environmental | |
| RoHS, c(ETL)us | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 3.3 lbs [1.5kg] |
