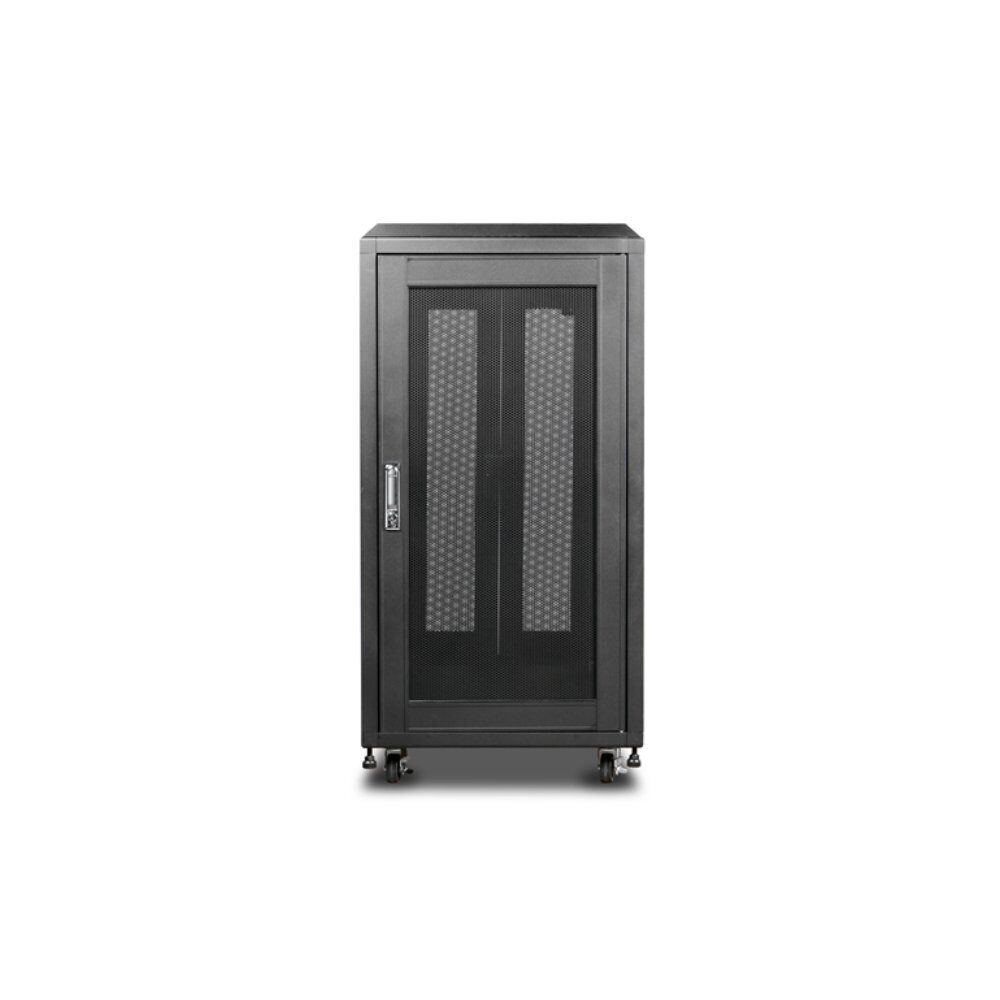

22U 1000mm Depth Full Size Server Cabinet – Lockable, Vented Doors, Cooling Fans, Adjustable Rails – Black
The 22U 1000mm Depth Rack-Mount Server Cabinet is designed to hold your server components within its anodized aluminum, and steel frame. The fully adjustable interior rails allow you to configure the cabinet to suit your needs. Two cooling fans provide air circulation to help prevent overheating while vented doors promote maximum air flow. The cabinet includes a set of keys, and is lockable from all sides to prevent unauthorized access, or tampering. It also serves to keep dust off the various components held within. The front panel is silk screened for style, and all four casters are lockable. Additionally, the cabinet meets RoHS standards that restrict the use of hazardous materials during its construction.
Description
The 22U 1000mm Depth Rack-Mount Server Cabinet is designed to hold your server components within its anodized aluminum, and steel frame. The fully adjustable interior rails allow you to configure the cabinet to suit your needs. Two cooling fans provide air circulation to help prevent overheating while vented doors promote maximum air flow. The cabinet includes a set of keys, and is lockable from all sides to prevent unauthorized access, or tampering. It also serves to keep dust off the various components held within. The front panel is silk screened for style, and all four casters are lockable. Additionally, the cabinet meets RoHS standards that restrict the use of hazardous materials during its construction.
- Universal Fit Most of Rackmount Chassis and Equipment

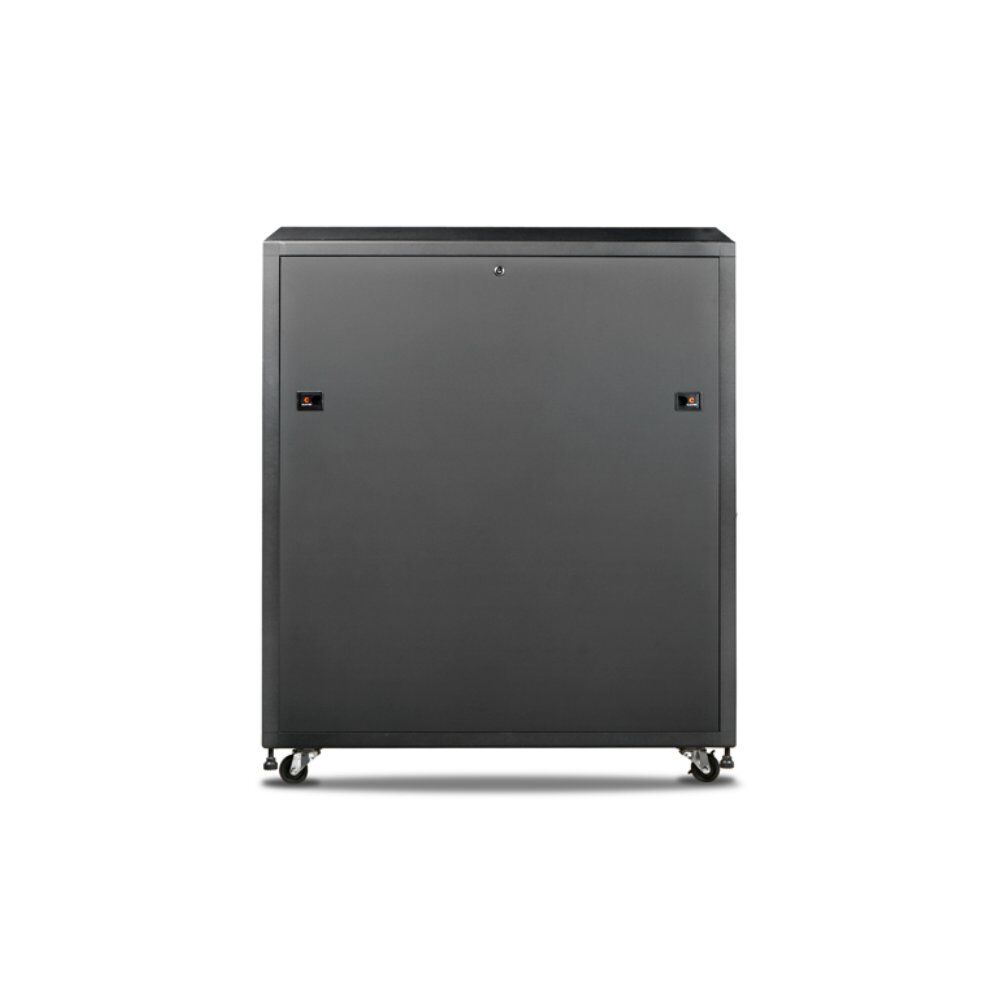

- Double Rear Doors Provide Convenience and Take Less Space to Open
- Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data
- Easy Cabling Management. Cable Entry Provided from Top/ Bottom and Front/ Back

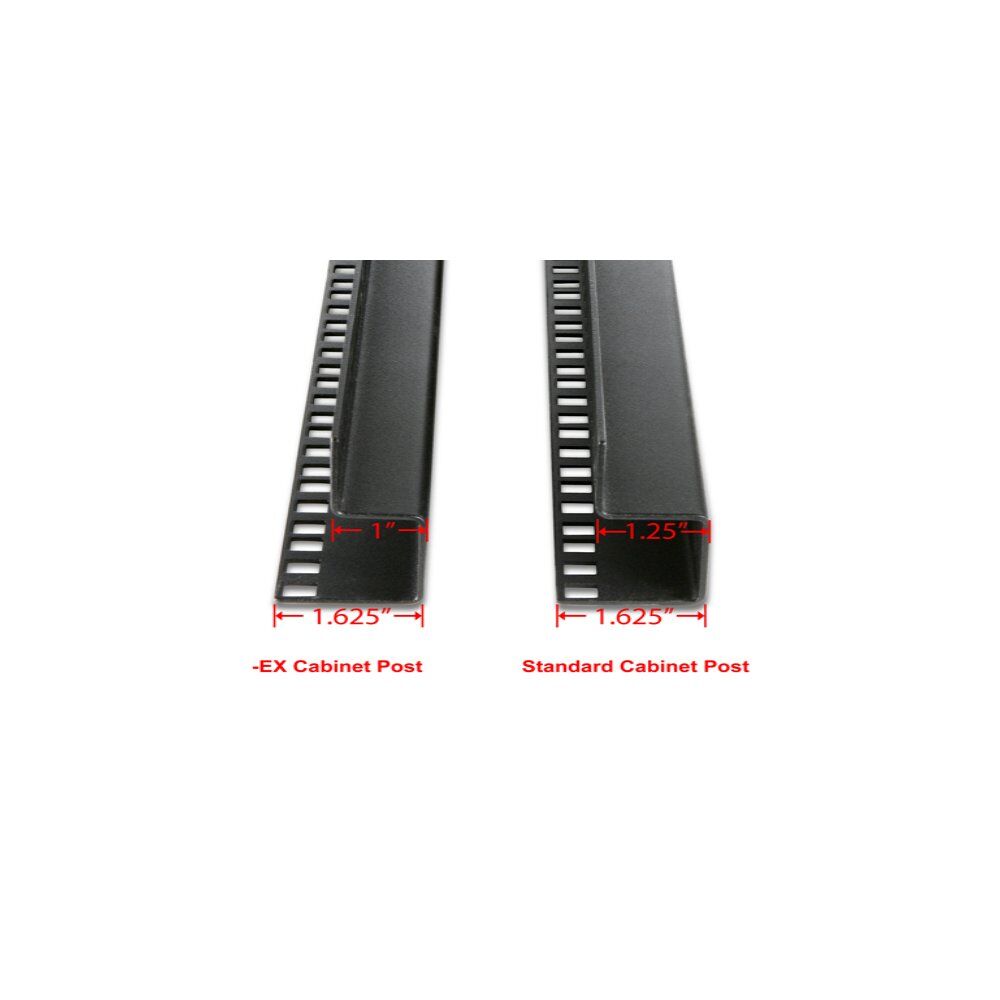

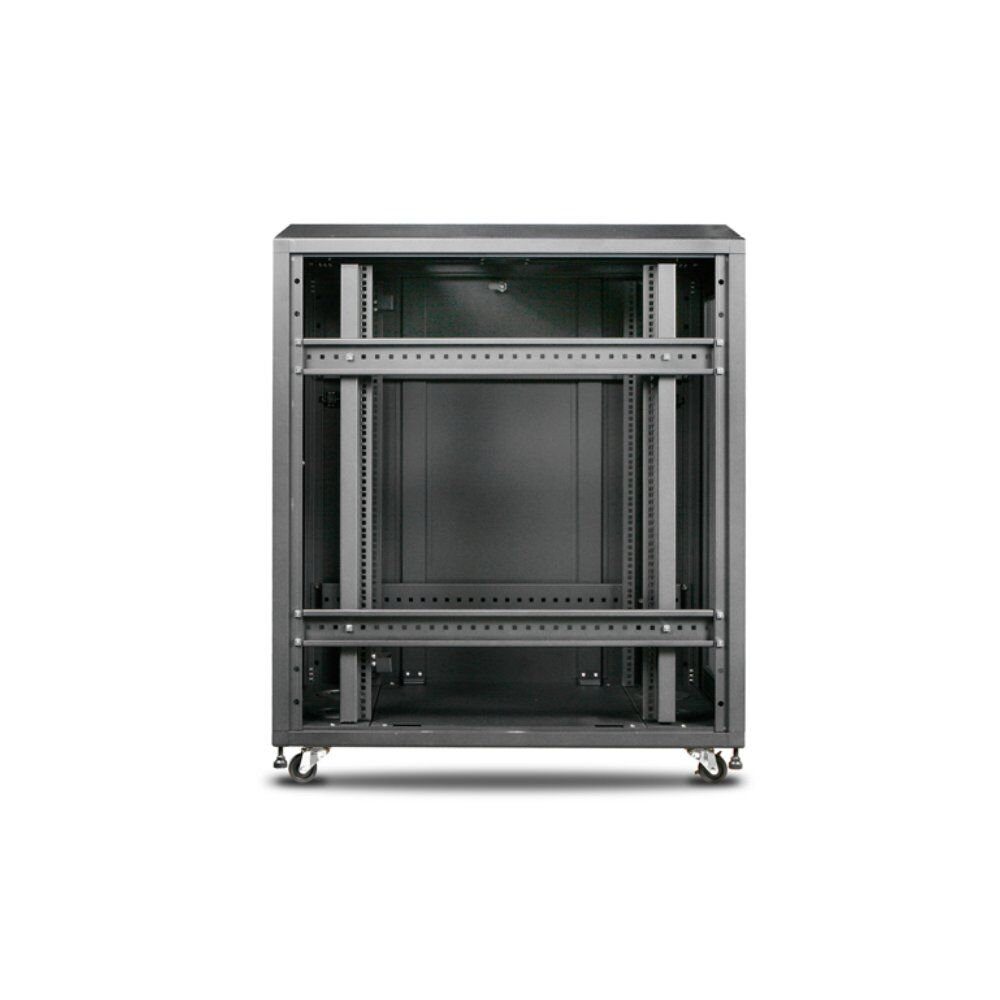

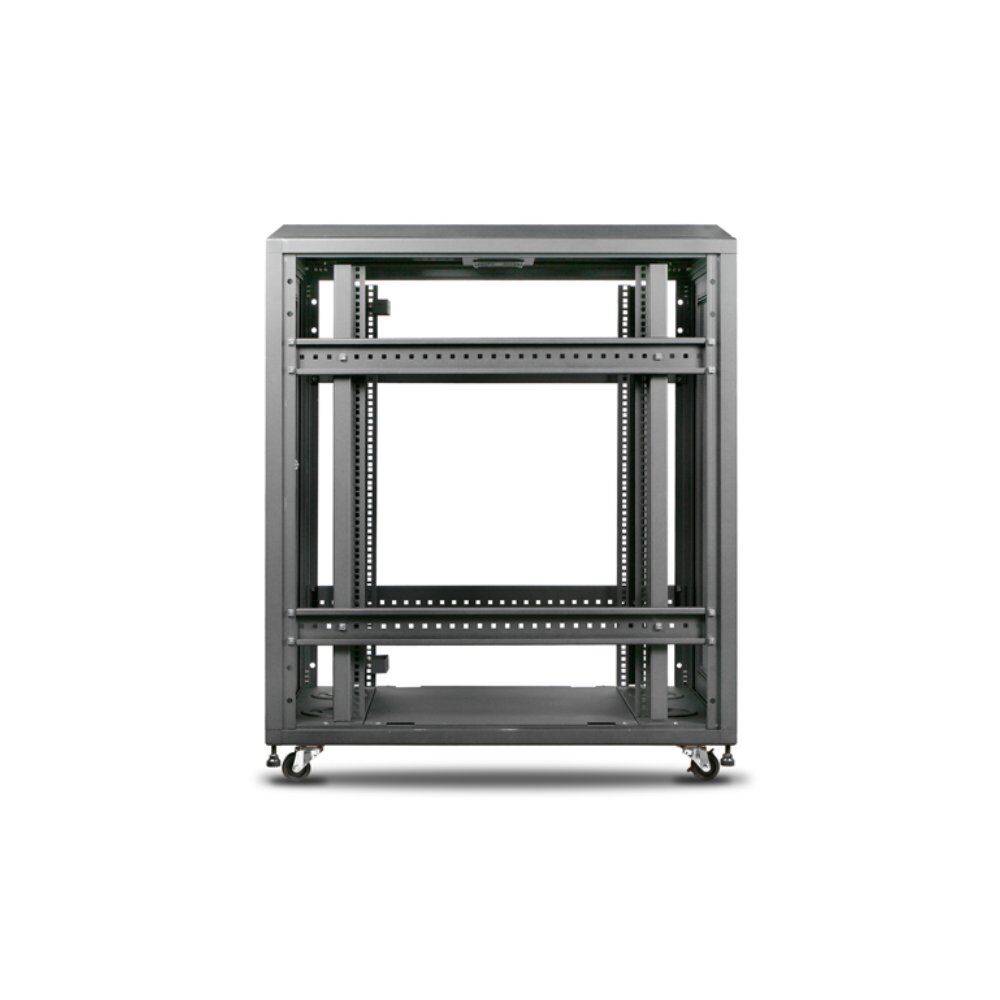

- Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
- Vented Doors Provide Maximum Air Flow
- 120mm AC Cooling Fans Provide Excellent Air Circulation
- Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line

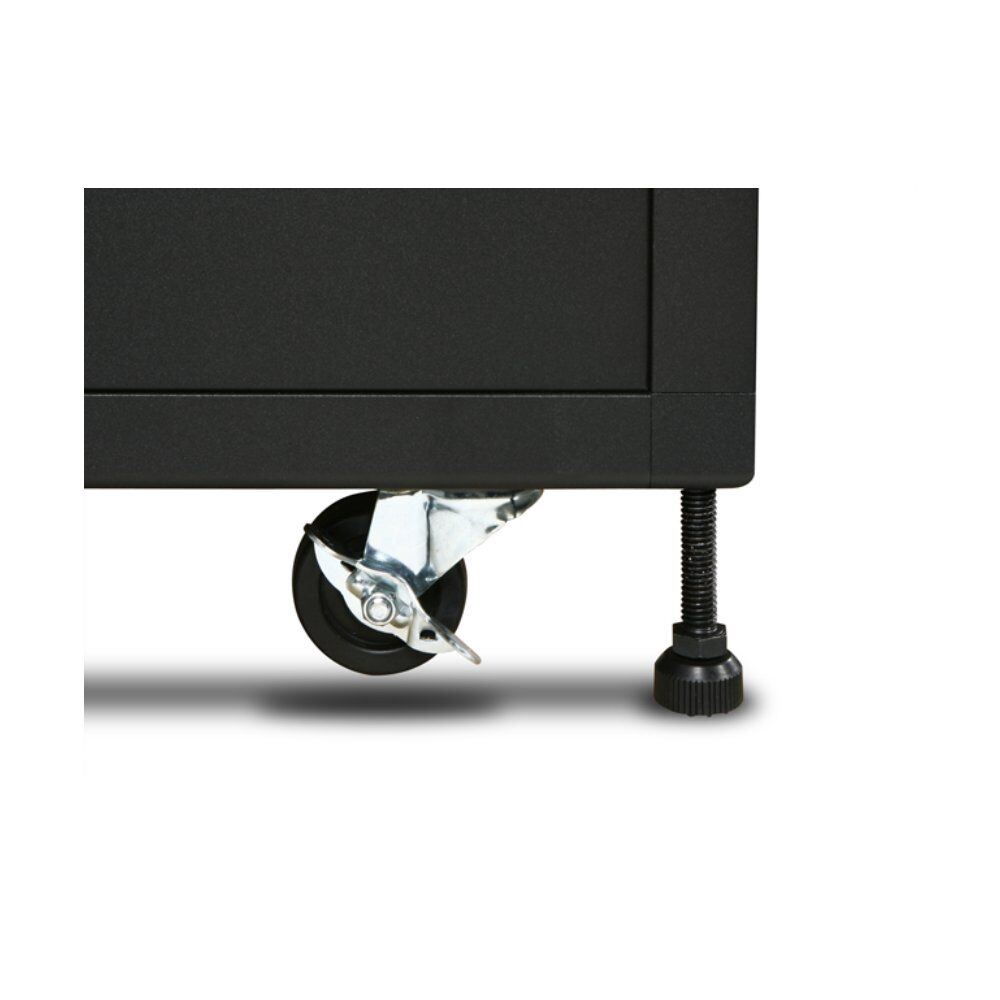

- Locking Mechanism Design on Casters
- Comes with 50 sets of M5 Mounting Screws and Cage Nuts
| Rack Units | 22U |
| Material | Side Panel: SPCC t:0.8 mm Horizontal Rails: SPCC t:2.0 mm Vertical Rails: SPCC t:2.0 mm Top Panel: SPCC t:1.2 mm |
| Color | Black (RAL9011) |
| Load Capacity | 2200 lb (997 kg) |
| Supported Chassis Depth | 34″ (863 mm) and under |
| Dimensions | External: 23.50 x 47.75 x 39.50″ (597 x 1,213 x 1,003 mm) Internal Height: 39.75″ Internal Depth: 34.25″ max |
| Compliance | RoHS |
| Weight | 210.0 lb (113.4 kg) |
Packaging Info
| Package Weight | 210 lb |
| Box Dimensions (LxWxH) | 53 x 40 x 25″ |
