Fiber Optic Red Light Pen Tester VFL (Visual Fault Locator) – 1mW – 2.5mm Ferrule for SC & ST + 2.5mm to 1.25mm Ferrule Adapter for VFL LC Connectors
This Fiber Optic Visual Fault Locator (VFL) pen tester helps quickly identify fiber breaks, bends, or faulty connections. Featuring a bright 650nm red laser, it supports both continuous and flashing modes. Compatible with SC, ST, and LC connectors using the included ferrule adapter. Compact, durable, and ideal for field technicians and network maintenance.
$45.00
Description

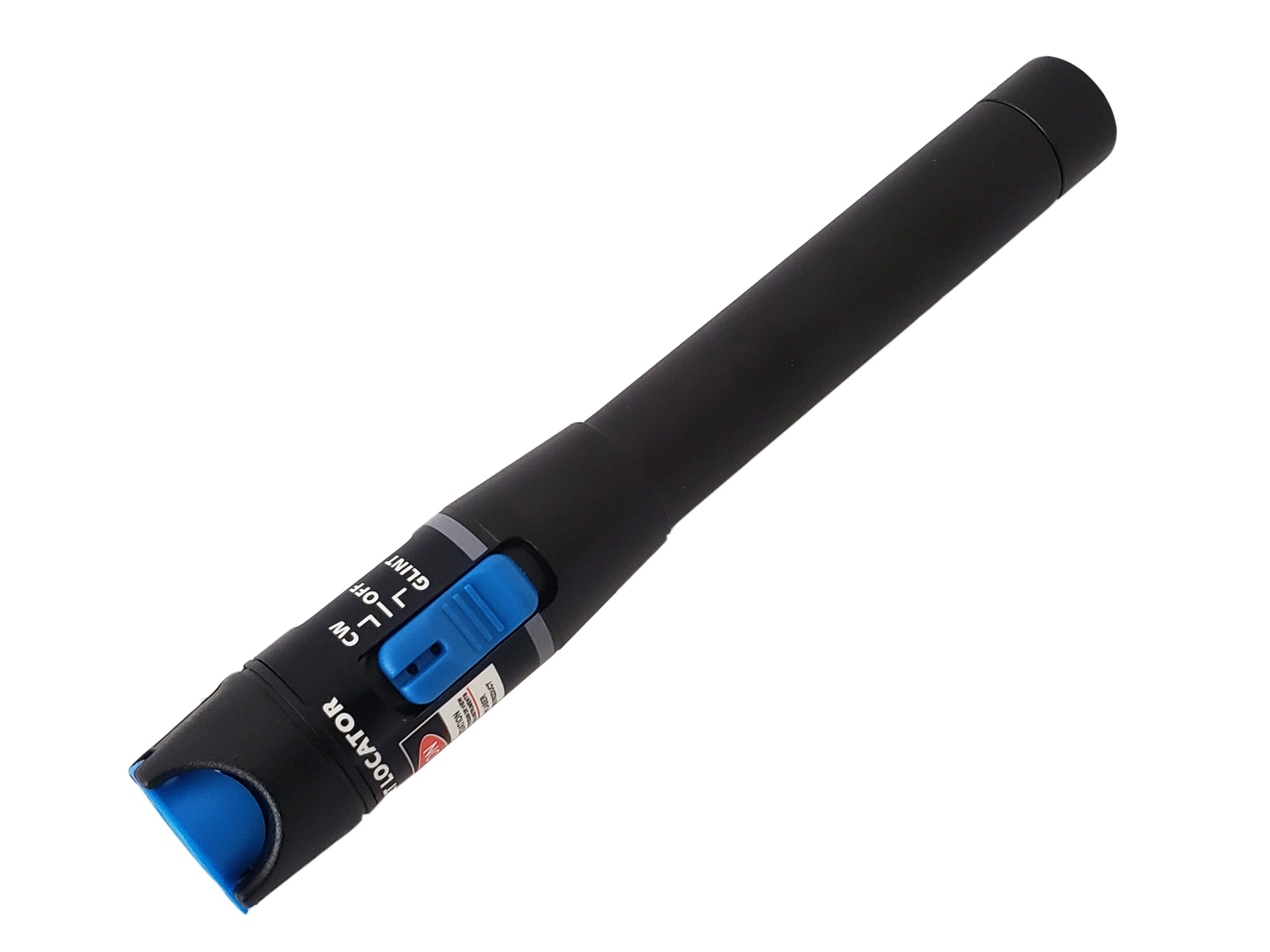

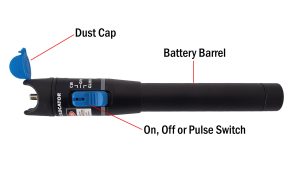

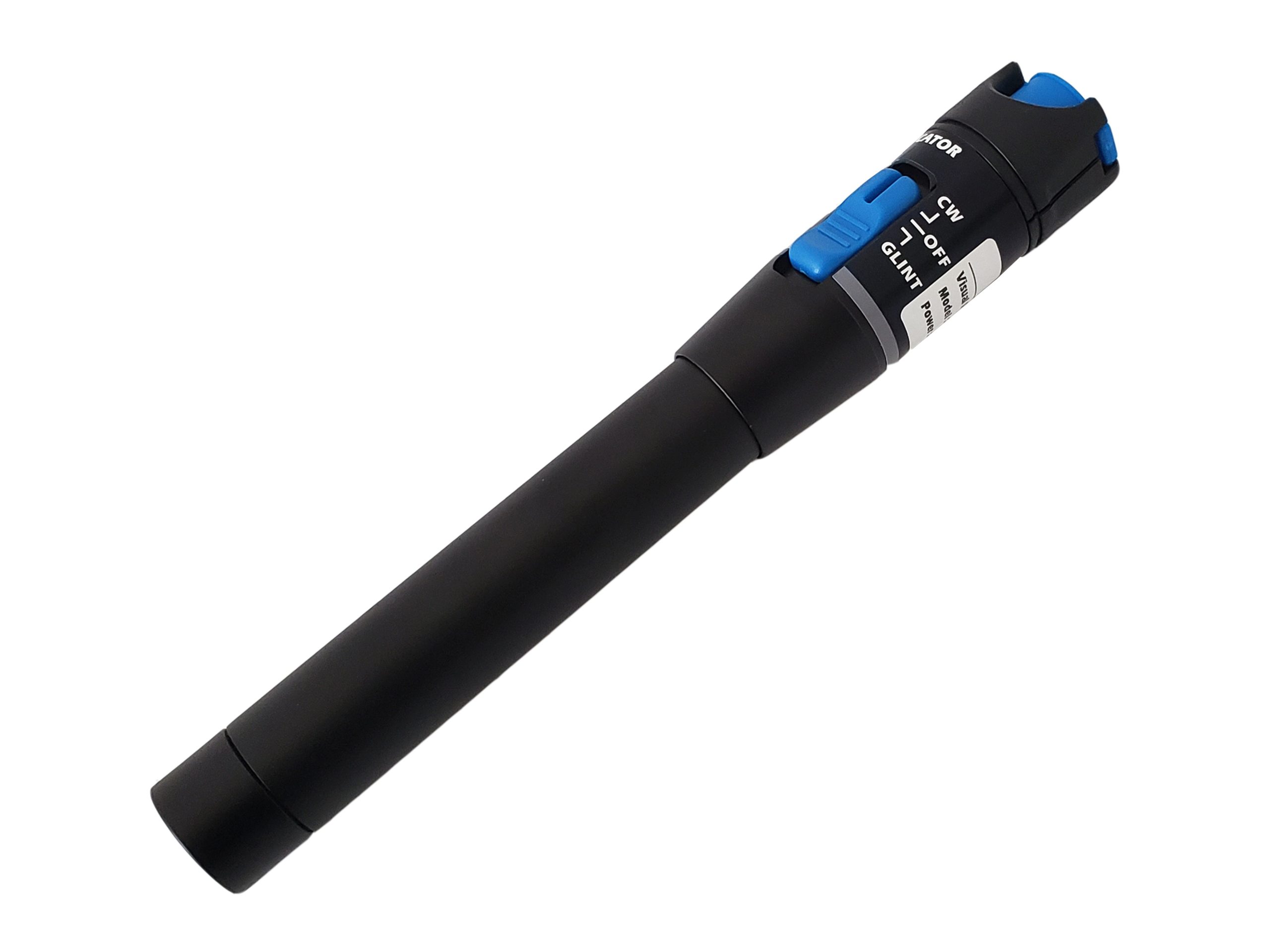

The Fiber Optic Red Light Pen Tester (VFL) – 1mW is an essential tool for testing and troubleshooting optical fiber networks. Designed in a pen-style metal housing, it easily detects fiber breaks, sharp bends, and faulty connections in both singlemode and multimode fibers.
Its 650nm visible red laser provides clear visual feedback for up to 5 km of dynamic range, with Continuous (CW) and Flashing (2Hz Glint) modes for different testing environments. The protective dust cap keeps the output clean and secure when not in use, ensuring consistent performance.
This tester includes a 2.5mm ferrule for SC & ST connectors and a 2.5mm-to-1.25mm adapter for LC connectors—making it compatible with most fiber optic interfaces.
Key Features
- Quickly locates fiber breaks, bends, and connection faults
- Bright red laser (650nm ± 20nm) with continuous and pulsed modes
- Compatible with SC, ST, and LC connectors
- Durable metal housing for field reliability
- Protective dust cover for port protection
- Compact and portable pen-style design
Technical Specifications
- Material: Metal housing
- Wave Output: 650nm ± 20nm
- Output Power: 1mW
- Dynamic Distance: 3–5 km
- Operation Modes: Continuous (CW) and Pulsed (2Hz)
- Connector: 2.5mm Universal (SC/ST) + 2.5mm to 1.25mm Adapter (LC)
- Operating Temperature: 0°C ~ +60°C
- Storage Temperature: -20°C ~ +70°C
- Battery Type: 2 × AA (1.5V) — not included
- Battery Life: Over 40 hours (1mW mode)
- Dimensions: 175 × 26 × 26 mm
- Weight: 0.17 kg (0.37 lbs)
Included Items
- 1 × VFL Pen Tester
- 1 × Ferrule Adapter (2.5mm to 1.25mm)
- 1 × Carrying Case
- 1 × Carrying Strap
(Batteries not included)

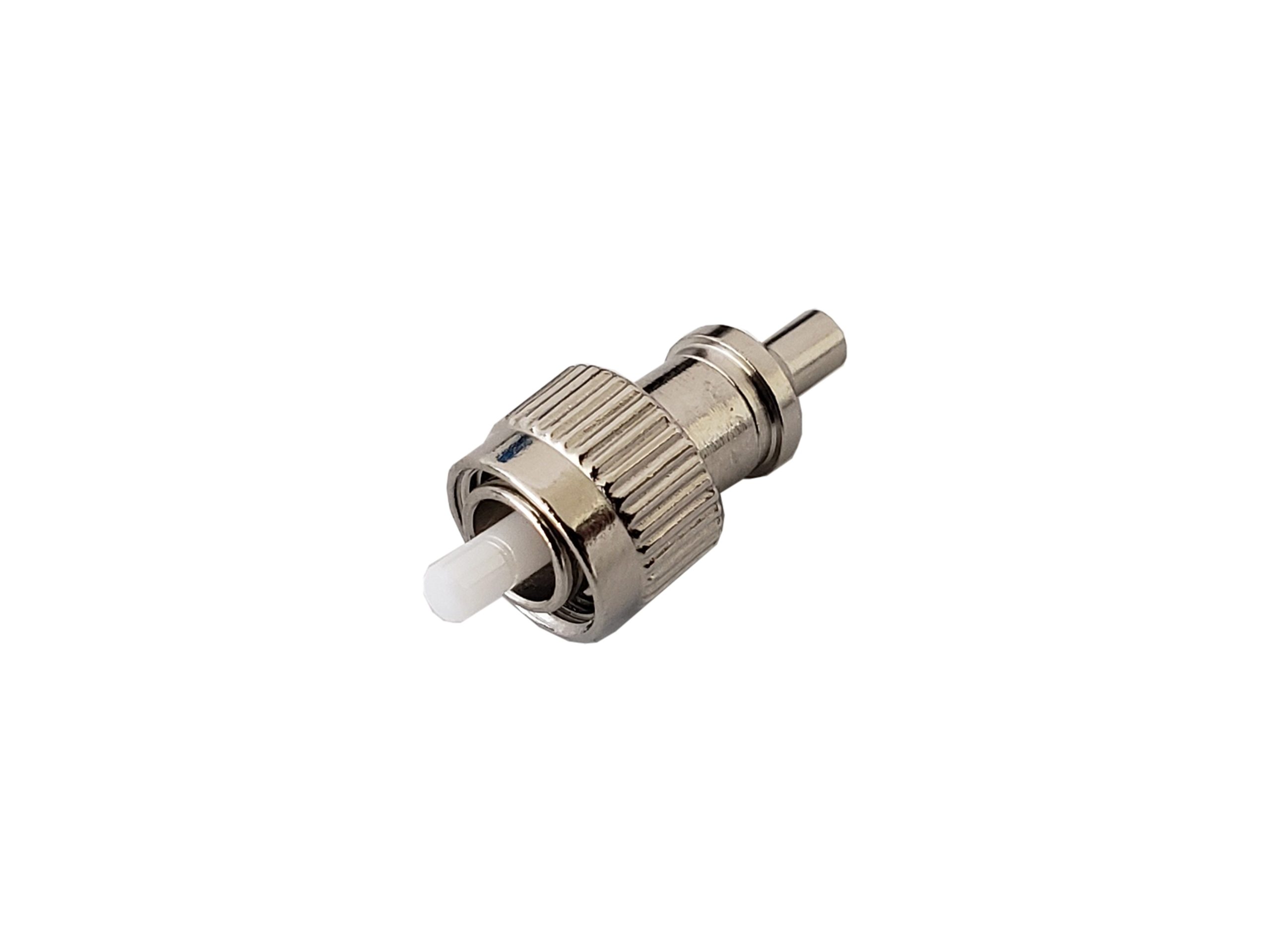

Ferrule Adapter Details
- Connector A: 2.5mm Male Ferrule
- Connector B: 1.25mm Female Ferrule
- Housing: Nickel-plated metal with ceramic sleeve
- Weight: 0.01 lbs
Warranty
- 1-Year Limited Warranty
| Weight | 0.40 lbs |
|---|---|
| Dimensions | 17.5 × 2.6 × 2.6 cm |
| Physical Characteristics | |
|---|---|
| Material | Metal Housing |
| Wave Output | 650nm ± 20nm |
| Fiber Connector | 2.5mm Universal Connector |
| Output Power | 1mW |
| Dynamic Distance | 3~5km |
| Operation Mode | Pulsed (2Hz) and CW |
| Operating Temperature | 0 ~ +60 deg C |
| Storage Temperature | -20 ~ +70 deg C |
| Battery Style | LR6 (AA) 1.5V x 2 (Batteries not Included) |
| Battery Life | >40H (1mW) |
| Size | 175 x 26 x 26mm |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.37 lbs [0.17 kg] |
| Items Included | 1 x VFL Pen 1 x Carrying Case 1 x Carrying Strap (Batteries not Included) |

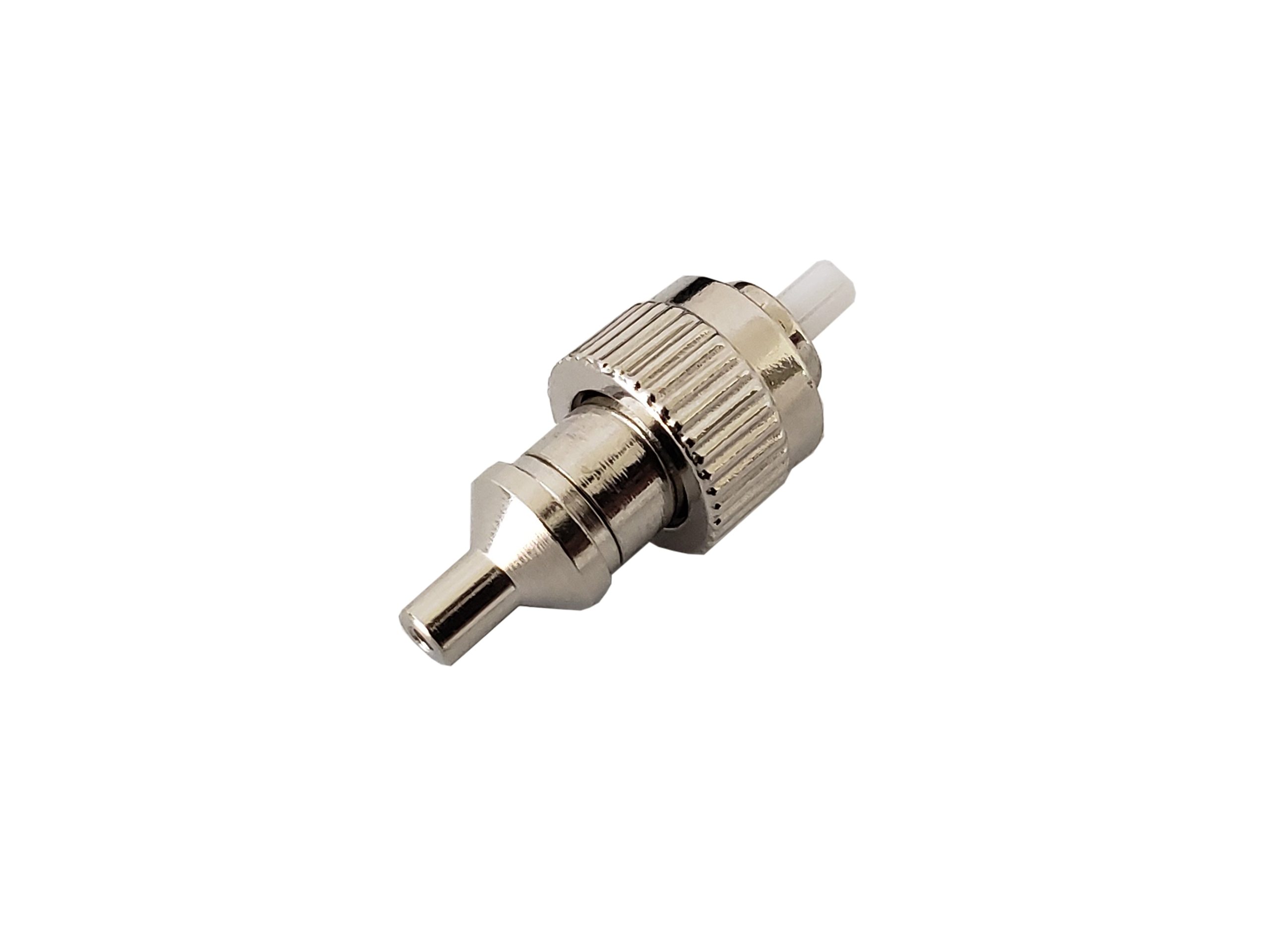

This ferrule adapter is used to convert the 2.5mm ferrule of a VFL to a 1.25mm ferrule in order to plug in LC connectors. Compatible with our TLH-2000 VFL tool.
| Physical Characteristics | |
|---|---|
| Color | Nickel Plated |
| Housing | Metal |
| Sleeve | Ceramic |
| Connector(s) | |
| Connector A | 2.5mm Male Ferrule |
| Connector B | 1.25mm Female Ferrule |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.01 lbs |
