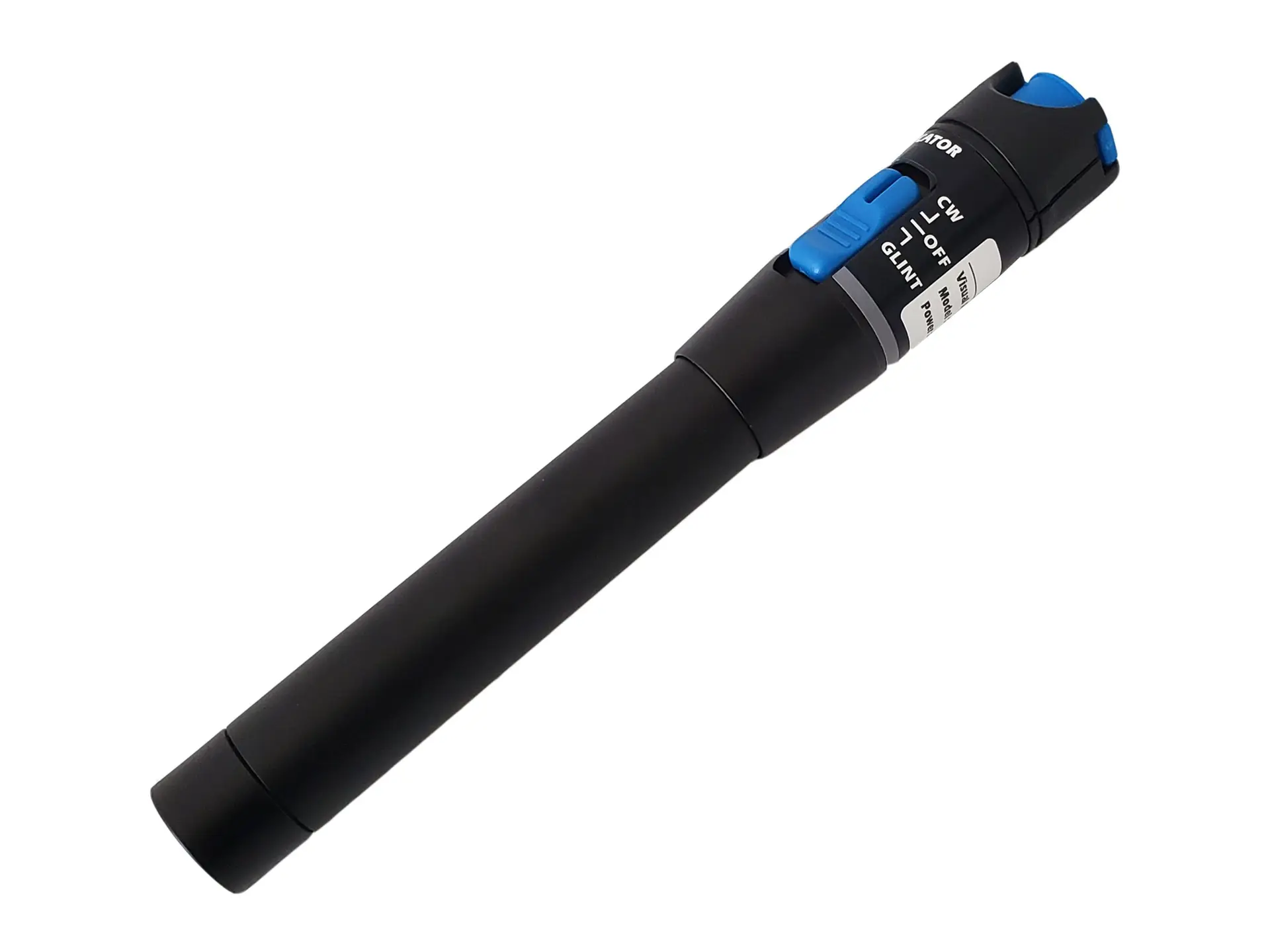

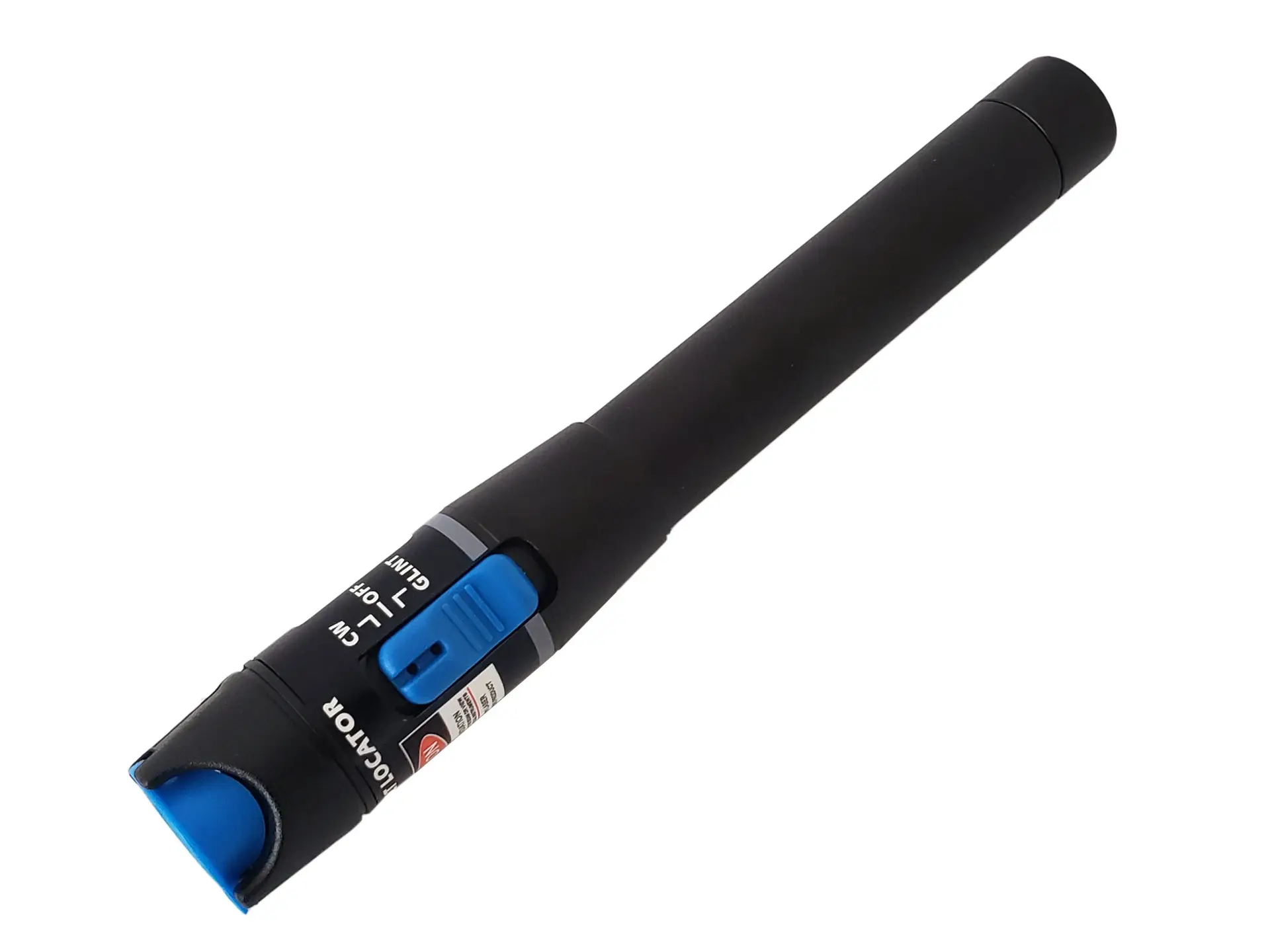

Fiber Optic Red Light Pen Tester VFL (Visual Fault Locator) – 1mW – 2.5mm Ferrule for SC & ST

Fiber Optic Tools SKU: RTC-TLH-2000

Locate fiber breaks and bends quickly with this Fiber Optic Visual Fault Locator (VFL) pen tester. Featuring a 1mW red laser (650nm), durable metal housing, and 2.5mm universal connector for SC & ST fibers, it’s perfect for pinpointing faults up to 5km. Includes carrying case and strap. (Batteries not included.)

$28.14

Description

The Fiber Optic Red Light Pen Tester VFL (Visual Fault Locator) is a compact and reliable tool designed to detect breaks, bends, or faulty connections in terminated fiber optic cables.
This pen-style tester emits a bright 650nm red laser that can easily identify problem points in fiber lines—visible through the jacket for quick troubleshooting.

Key Features

Bright Red Laser (650nm): Quickly identify fiber breaks and sharp bends.
Durable Metal Housing: Ensures long-lasting performance even in demanding environments.
Universal 2.5mm Connector: Compatible with SC and ST connectors.
Two Light Modes: Continuous (CW) and Pulsed (2Hz) operation for versatile testing.

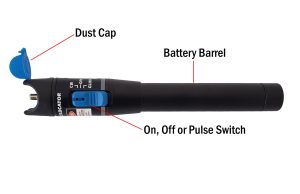

Protective Dust Cap: Keeps the port clean and prevents contamination.
Compact & Portable: Lightweight pen-style design with included carrying case and strap.

Weight	0.37 lbs
Dimensions	175 × 26 × 26 cm

Physical Characteristics
Material	Metal Housing
Wave Output	650nm ± 20nm
Fiber Connector	2.5mm Universal Connector
Output Power	1mW
Dynamic Distance	3~5km
Operation Mode	Pulsed (2Hz) and CW
Operating Temperature	0 ~ +60 deg C
Storage Temperature	-20 ~ +70 deg C
Battery Style	LR6 (AA) 1.5V x 2 (Batteries not Included)
Battery Life	>40H (1mW)
Size	175 x 26 x 26mm
Adapter Specifications (sold separately)
TLH-2000-A (LC)	Max Insertion Loss – 0.5dB
Packaging Information
Packaging Quantity	1
Product Weight	0.37 lbs [0.17 kg]
Items Included	1 x VFL Pen 1 x Carrying Case 1 x Carrying Strap (Batteries not Included)
