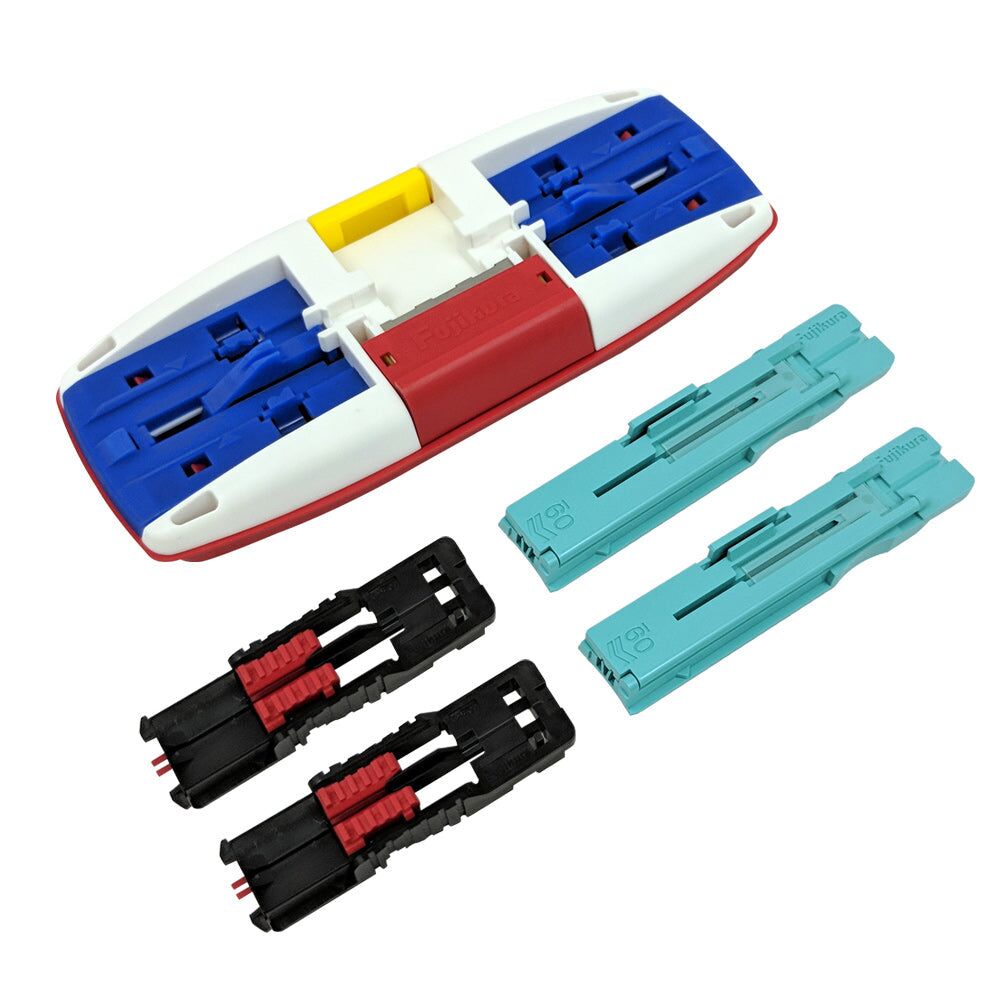

SpliceConnect Universal Mechanical Splicing Tool Kit

Description

The SpliceConnect Universal Mechanical Splicing Tool Kit is designed for fast, accurate, and durable fiber optic connections. It maintains physical contact between fibers, achieving a typical insertion loss of <0.1 dB for single-mode applications. The U-shaped sleeve design secures both the fiber and coating independently, providing exceptional resistance to fiber twist and ensuring long-term reliability.

With minimal tools required and support for 250 µm and 900 µm fibers, this kit is perfect for field restoration, FTTx, and premise network environments. The included accessories and compact carrying case make it easy to use and transport in any job setting.

Key Features

• Low Insertion Loss: <0.1 dB typical for single-mode fibers.
• Dual Fiber Capability: Works with both 250 µm and 900 µm fibers.
• Independent Clamping: Secures fiber and coating separately for extra durability.
• Quick Splicing: Fast and reliable assembly in the field.
• Minimal Tools Required: Simplifies setup and use.

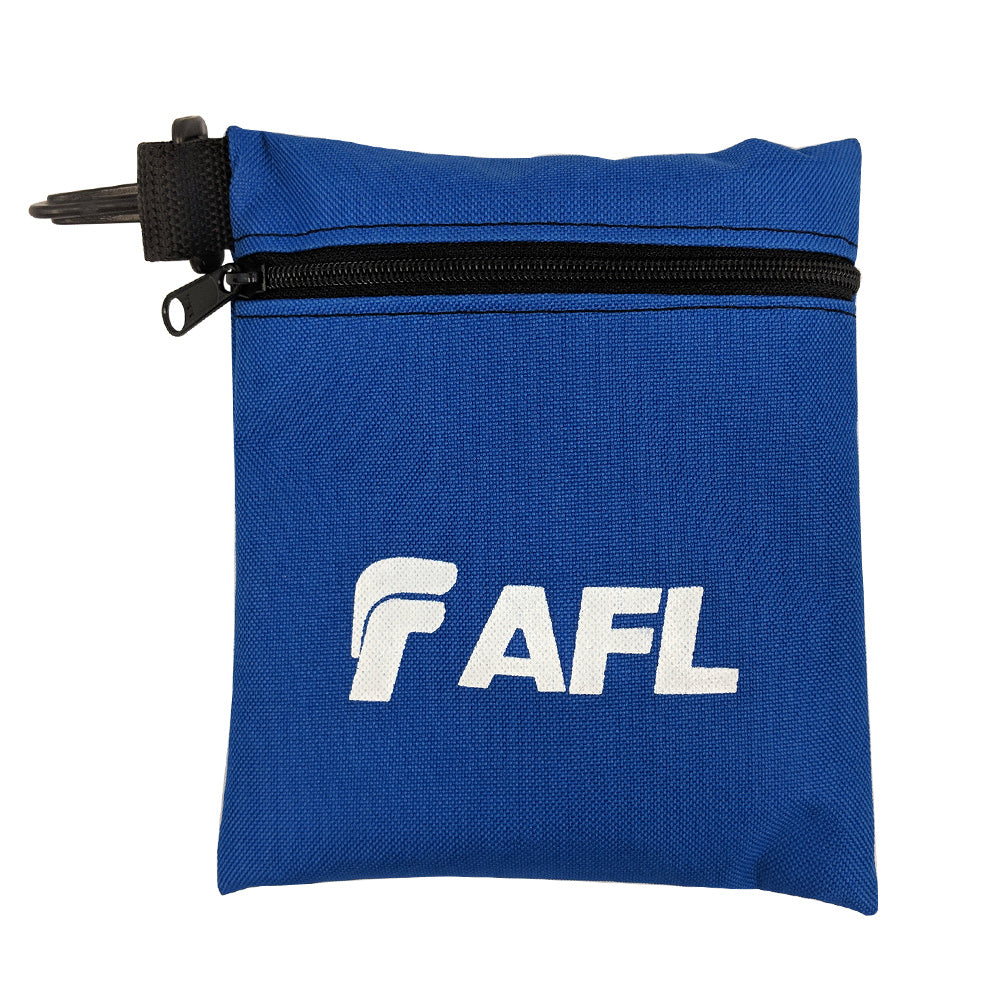

• Portable Design: Compact carrying case for convenient on-site work.

Applications

• Fiber restoration and repair
• Premise installations
• FTTx (Fiber-to-the-Subscriber) applications
