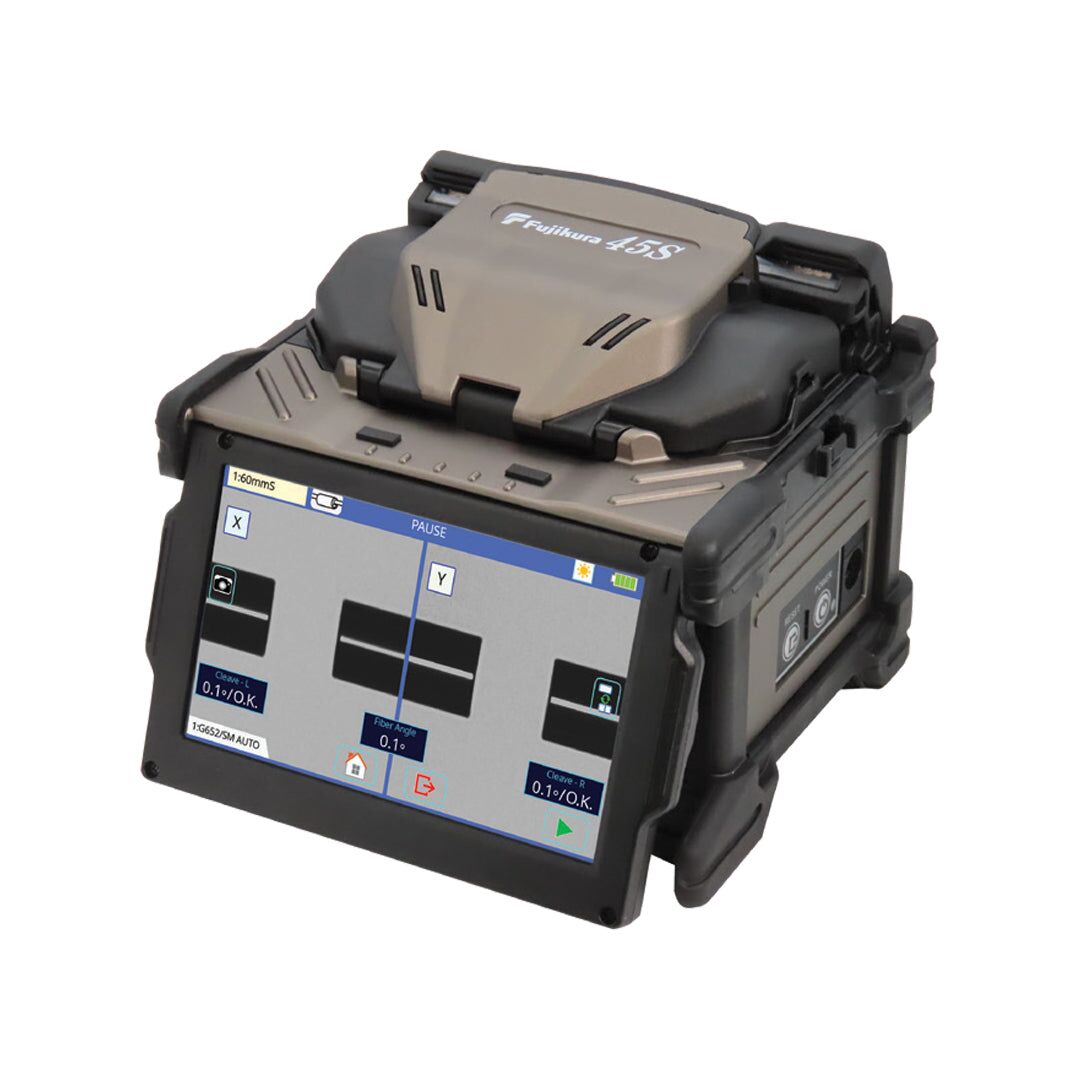

Fujikura 45S Fusion Splicer
Fujikura 45S is a cladding alignment fusion splicer designed for precision, speed, and reliability. With simultaneous fiber preparation, automatic sheath clamps, and an advanced heater that cuts splice time by over 30%, it’s ideal for FTTx, 5G, and field applications. Rugged, compact, and Bluetooth-enabled for easy data transfer and control. Includes CT-50 cleaver, stripper, battery pack, and full accessory kit.
$8,344.00
Description
The Fujikura 45S Fusion Splicer delivers high-performance fiber splicing with exceptional speed and accuracy. Designed with a patented sheath clamp system, it enables simultaneous fiber preparation and one-handed operation. Its Active Fusion Control ensures optimal arc conditions for every splice, while Active Blade Management monitors and adjusts cleave quality in real time.
Engineered for durability, the 45S is fully ruggedized—resistant to shock, dust, and moisture—making it ideal for field deployments, FTTx drops, 5G small cell sites, and rural network builds. A faster heater shortens splice cycles by over 30%, significantly boosting productivity.
Key Features
- Simultaneous fiber preparation and loading with patented sheath clamps
- Automatic sheath clamp operation linked to wind protector
- Active Fusion Control and Active Blade Management
- Fast heating cycle (as low as 16 seconds)
- Touchscreen LCD display (4.95″) with up to 300x magnification
- Bluetooth® 5.2 connectivity and USB interfaces
- Rugged, compact, and ergonomic design for field use
- Stores up to 20,000 splice results and 100 fiber images
Technical Specifications
- Alignment Method: Active cladding alignment
- Splicing Time: 6–8 sec (FAST) / 8–11 sec (AUTO)
- Splice Loss: Avg. 0.03 dB (G.652)
- Electrode Life: Approx. 6,000 splices
- Battery Capacity: Up to 230 splice & heat cycles per charge
- Operating Temp: -10°C to 50°C
- Dimensions: 131 × 123 × 121 mm
- Weight: 1.4 kg (3.08 lbs)

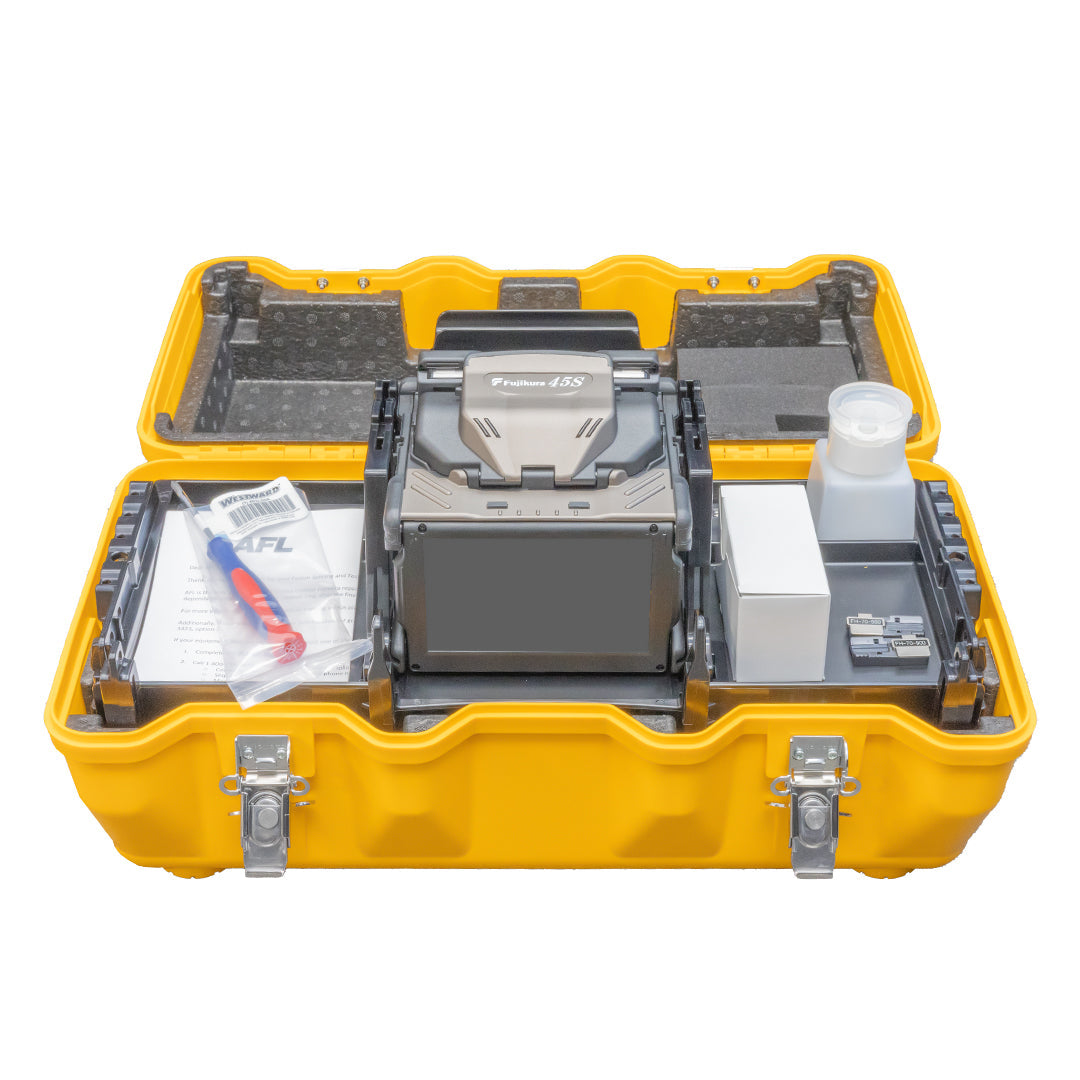

Included Accessories
- CT-50 Cleaver
- SS-05 Fiber Stripper
- FH-70-250 & FH-70-900 Fiber Holders
- ELCT2-16B Spare Electrodes
- ADC-21 AC Adapter & Power Cord
- BTR-17 Battery Pack (installed)
- USB Cable, Alcohol Container, Work Tray, Strap, Tripod Screw Pack, and Carrying Case
Warranty
- 1-Year Manufacturer Warranty
| Weight | 3.08 lbs |
|---|---|
| Dimensions | 13.1 × 12.3 × 12.1 cm |
| Physical Characteristics | |
|---|---|
| Fiber Count | Single fiber |
| Fibre Alignment Method | Active cladding alignment |
| Cladding Diameter | 125 µm |
| Cleave Length | 5 to 16 mm with Sheath Clamp 10 mm with fiber holders |
| Cleave Angle Capability | Single Fiber: 0.3 ~ 0.9° Fiber Ribbon: 0.3 ~ 1.2° |
| Splice Loss | ITU-T G.652: Avg. 0.03dB ITU-T G.651: Avg. 0.01dB ITU-T G.653: Avg. 0.05dB ITU-T G.655: Avg. 0.05dB ITU-T G.657: Avg. 0.03dB |
| Splicing Time | SM FAST mode: Avg. 6 to 8 sec. SM AUTO mode: Avg. 8 to 11 sec. |
| Sleeve Type | Heat shrinkable sleeve |
| Sleeve Length | Max. 66 mm |
| Sleeve Diameter | Max. 6.0 mm before shrinking |
| Sleeve Heat Time | 60 mm mode: Avg. 21 to 23 sec. 60 mm slim mode: Avg. 16 to 18 sec. |
| Fiber Tensile Test Force | 2.0 N |
| Electrode Life | Approx. 6,000 splices |
| Dimensions (W x D x H) | 131 mm x 123 mm x 121 mm |
| Temperature | Operate: -10 to 50°C Storage: -40 to 80°C |
| Humidity | Operate: 0 to 95%RH non-condensing Storage: 0 to 95%RH non-condensing |
| Altitude | Max. 5,000 m |
| Display | LCD TFT 4.95 inches with touch screen monitor |
| Display Magnification | Approx. 132 to 300X |
| Illumination | V-grooves: LED lamp |

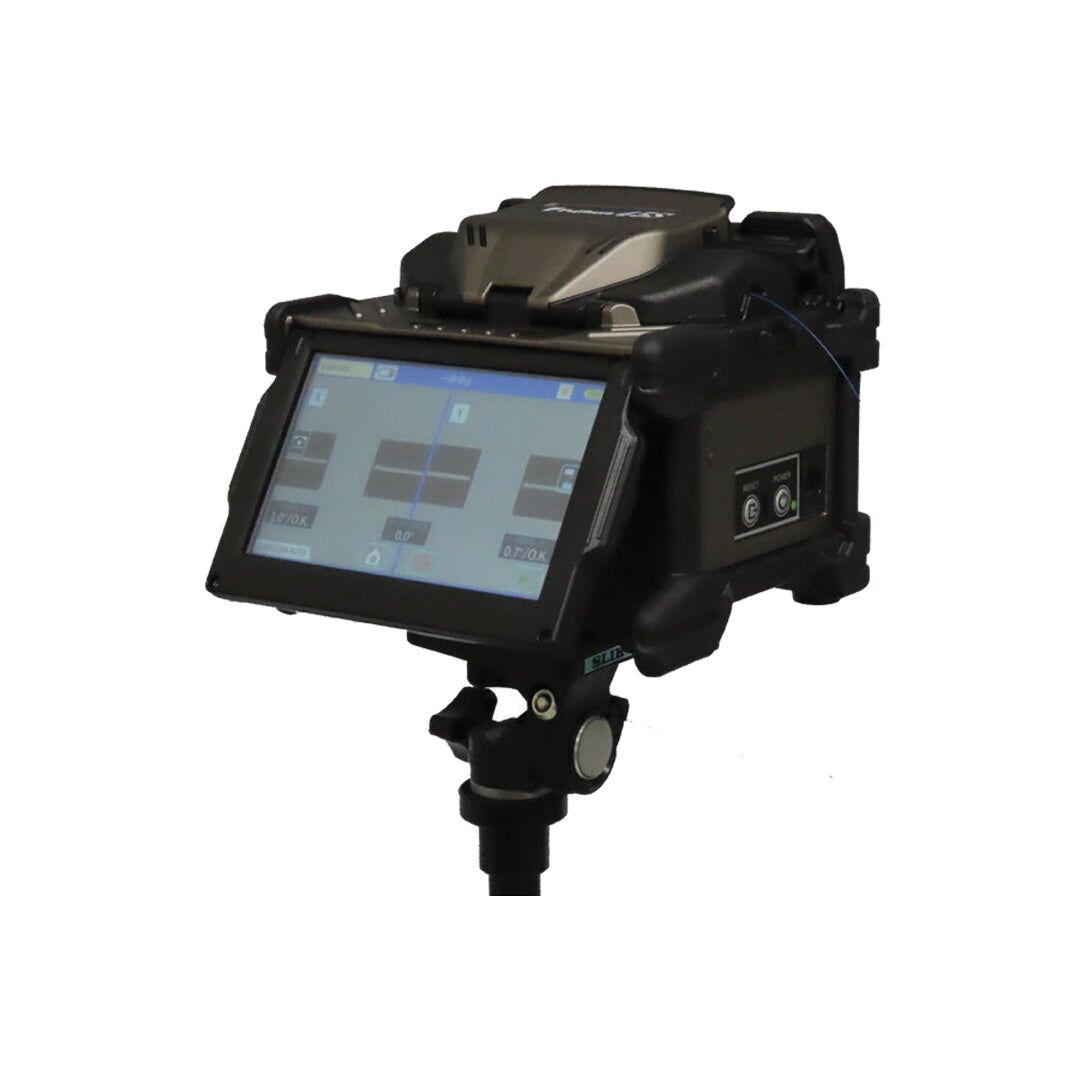

| Screw Hole for Tripod | 1/4-20UNC |
| Interface | |
| PC | USB2.0 MINI B type |
| External LED lamp | USB 2.0 A type, Approx. DC5V, 500mA |
| Wireless | Bluetooth® 5.2 |
| Data Storage | |
| Splice Mode | 100 splice modes |
| Heat Mode | 30 heat modes |
| Splice Result | 20,000 splices |
| Fiber image | 100 images |
| Power | |
| AC Adaptor | Input: AC100 to 240V, 50/60Hz, Max. 1A Output: Approx. DC 19V, Max. 2.1A |
| Battery Pack Type | Rechargeable Lithium Ion |
| Battery Pack Output | Approx. DC14.4V / 3,190mAh |
| Battery Pack Capacity | 60 mm heat mode: Approx. 200 splice & heat cycles 60 mm slim heat mode: Approx. 230 splice & heat cycles |
| Battery Pack Temperature | Operate: -10 to 50°C Recharge : 0 to 40°C Short term storage of 30 days: -20 to 50°C Long term storage: -20 to 30°C |
| Battery Pack Lifespan | Approx. 500 recharge cycles |
| Other Features | |
| Automatic Functions | Fusion control Blade management and control Splice start Heater start |
| Reference Guide | PDF file stored on splicer |
| Sheath Clamp | Open with/without wind protector Close when setting fiber |
| Electrode | Tool-less replacement |
| PC Software | Splicer firmware update via internet Parameter Upload and download |
| Manufacturing Information | |
| AFL Part Number | 45S |
| Packaging Information | |
| Packaging Content | 1 – CT-50 cleaver 1 – SS-05 single fiber stripper 1 Pair – Each FH-70-250 and FH-70-900 fiber holders 1 – SP-04 set plates 1 Pair – ELCT2-16B Spare Electrodes 1 – ADC-21 AC Adapter 1 – BTR-17 Battery Pack (installed) 1 – ACC-09 Power Cord 1 – USB-01 USB Cable 1 – AP-02 Alcohol Container 1 – WT-10 work tray 1 – ST-03 carrying case strap 1 – TS-03 tripod screw pack 1 – CC-45 Transit Case |
| Product Weight | 3.08 lbs [1.4 kg] |
| Warranty | 1-Year Warranty |
