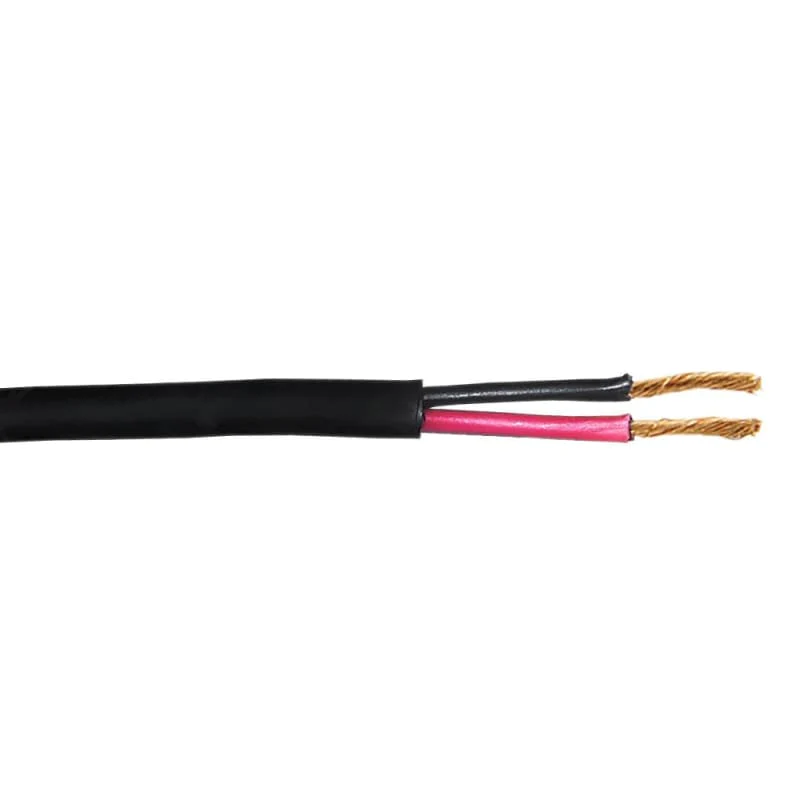

500ft 2C 14AWG Direct Burial Bulk Speaker Cable CMX – Black
This bulk direct burial speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors or underground and used to connect speakers to amplifiers.
Description
This bulk direct burial speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors or underground and used to connect speakers to amplifiers.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Color | Black |
| Temperature Rating | 75ºC |
| Cable Diameter | 6.40±0.10mm |
| Number of Conductors | 2 Conductor |
| Wire Gauge | 14AWG |
| Conductor Material | Stranded Bare Copper |
| Conductor Diameter | 105/0.16±0.004mm |
| Assembly Diameter | 5.20±0.20 |
| Jacket Material | UV CMX PVC |
| Jacket Rating | Direct Burial |
| Jacket Average Thickness | 0.60mm |
| Jacket Minimum Thickness | 0.54mm |
| Insulation Average Thickness | 0.355mm |
| Insulation Minimum Thickness | 0.330mm |
| Insulation Diameter | 2.60±0.05 |
| Ripcord | Nylon |
| Cable Shielding | None |
| Max Voltage Rating | 300V |
| Flammability Test | CMX |
| Capacitance | < 9.8nF/100M |
| Resistance | 70+/-10 OHM |
| Conductor Resistance | Max 15.5ohm/km at 20℃ |
| Insulator Resistance | Min 50MΩ km at 20℃ |
| Mechanical Characteristics | |
| Before Aging | Tensile Strength (Mpa): >=13.8 Elongation (%): >=100 |
| Aging Condition (deg C x hrs) | 100×168 |
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 19.9 lbs |
